Disc rotary valve DU 125 stainless inter-flange collapsible with handle SCBF-D674 series

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 125 stainless inter-flange collapsible with handle SCBF-D674 series

Name: Disc rotary valve DU 125 stainless inter-flange collapsible with handle SCBF-D674 series
Brand: Specialist
SKU: SCBF-D674-10XEC-125-H
Price: 4154.46 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 4 154,46 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-125-H

Disc rotary valve DU 125 stainless inter-flange collapsible with handle SCBF-D674 series

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-125-H

4 154,46 UAH

In Stock

SCBF-D674-10XES-125-H

Disc rotary valve DU 125 stainless inter-flange collapsible with handle SCBF-D674 series

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-125-H

4 412,94 UAH

In Stock

SCBF-D674-10XFS-125-H

Disc rotary valve DU 125 stainless inter-flange collapsible with handle SCBF-D674 series

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-125-H

6 137,46 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

56 mm

Диск

SS304, SS316

Матеріал диску

SS304 stainless steel, SS316 stainless steel

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 125

Тип засувки

Disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

Handled

Description

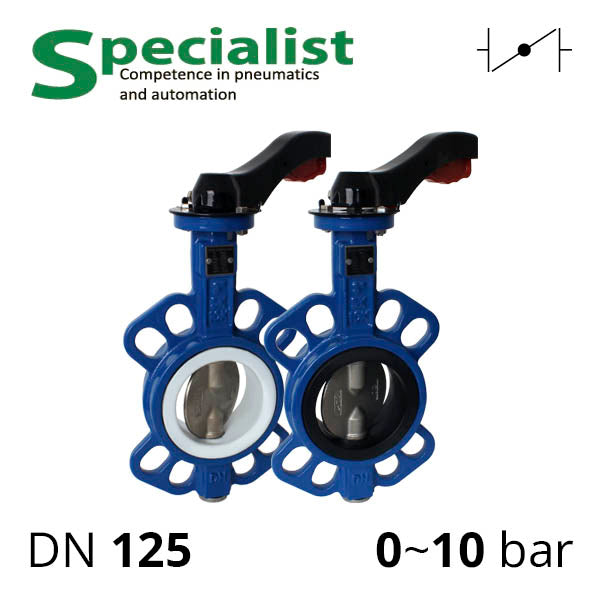

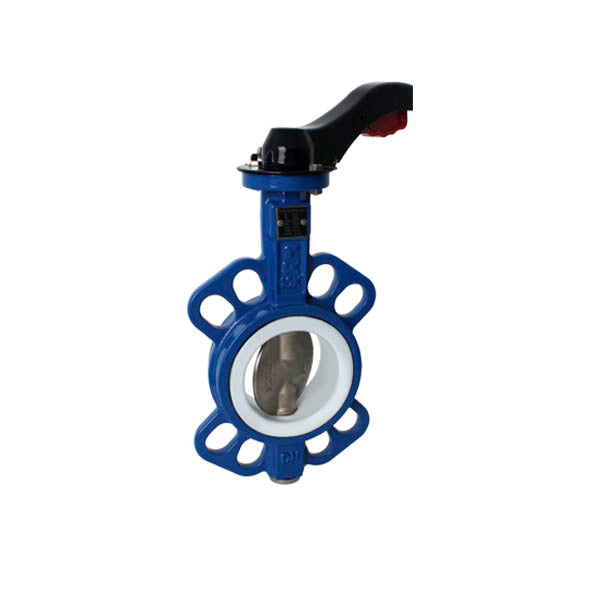

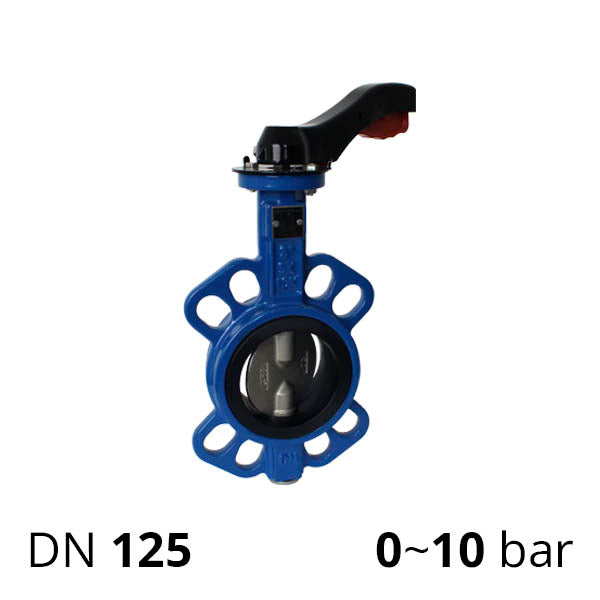

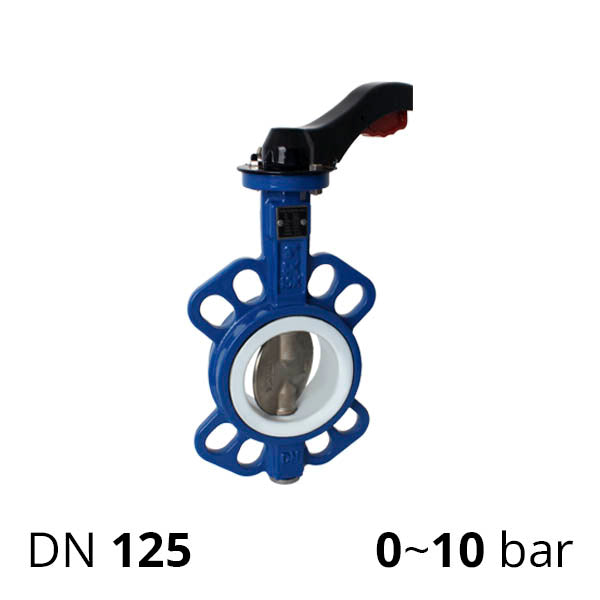

Manual Wafer Lugged Butterfly Valve PN10 DN125 of SCBF-D674-10XEC/10XES/10XFS-125-H series is a butterfly valve with a CF8/CF8M cast stainless steel disc (equivalent AISI 304/316), wafer mounting and equipped with a handle for operation.

The multi-position handle features an anti-rotation mechanism — it can be halted in 10 intermediate positions for throttling and adjusting the substance flow through the pipeline. The SCBF-D674-10XEC/10XES/10XFS-125-H butterfly valve can control water and liquid mixtures whose chemical composition is compatible with CF8/CF8M and seat material — EPDM or PTFE.

Table — Main Specifications of the Manual Wafer Lugged Butterfly Valve SCBF-D674-10XEC/10XES/10XFS-125-H
Nominal Passage Diameter	DN125 (125 mm)
Nominal Pressure	PN10 (1 MPa, 10 bar)
Body Material	WCB (Carbon Steel)
Disc Material	CF8/CF8M as per ASTM A351 (equivalent to SS304/316)
Seal Material	EPDM or PTFE
EPDM Temperature Resistance	from −30 to 95° C
PTFE Temperature Resistance	from −40 to 160° C
Control Type	Manual Control
Installation Thickness	56 mm

This manual stainless steel butterfly valve is mounted on a pipe with a nominal passage diameter of 125 millimetres between pre-welded collar flanges ISO 7005-1(EN 1092-2). The body contains bosses with holes ("lugs") to centre the wafer butterfly valve between flanges.

The manual drive can be replaced with a pneumatic or electric actuator. Upon request, this type of valve can be provided with PN16.
