Disc rotary valve DU 200 stainless inter-flange collapsible with handle SCBF-D674 series

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 200 stainless inter-flange collapsible with handle SCBF-D674 series

Name: Disc rotary valve DU 200 stainless inter-flange collapsible with handle SCBF-D674 series
Brand: Specialist
SKU: SCBF-D674-10XEC-200-H
Price: 9171.72 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 9 171,72 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-200-H

Disc rotary valve DU 200 stainless inter-flange collapsible with handle SCBF-D674 series

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-200-H

9 171,72 UAH

In Stock

SCBF-D674-10XES-200-H

Disc rotary valve DU 200 stainless inter-flange collapsible with handle SCBF-D674 series

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-200-H

11 066,16 UAH

In Stock

SCBF-D674-10XFS-200-H

Disc rotary valve DU 200 stainless inter-flange collapsible with handle SCBF-D674 series

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-200-H

11 568,42 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

60 mm

Диск

SS304, SS316

Матеріал диску

SS304 stainless steel, SS316 stainless steel

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 200

Тип засувки

Disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

Handled

Description

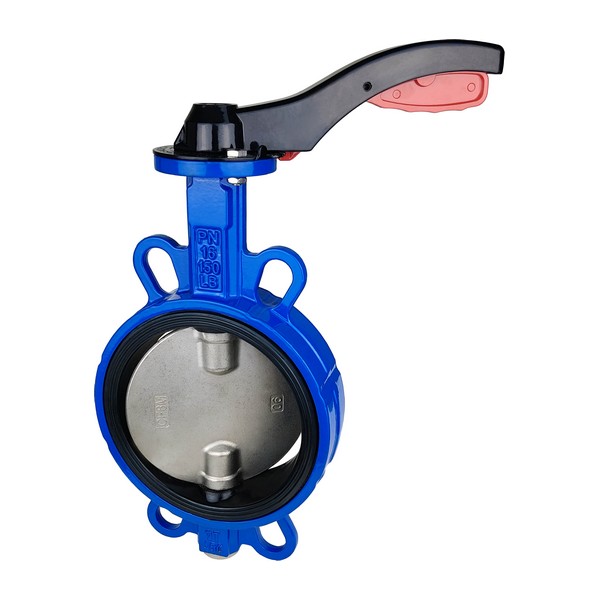

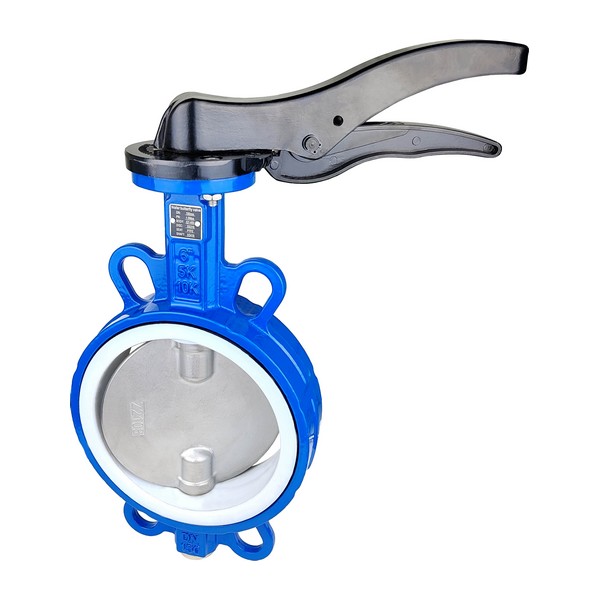

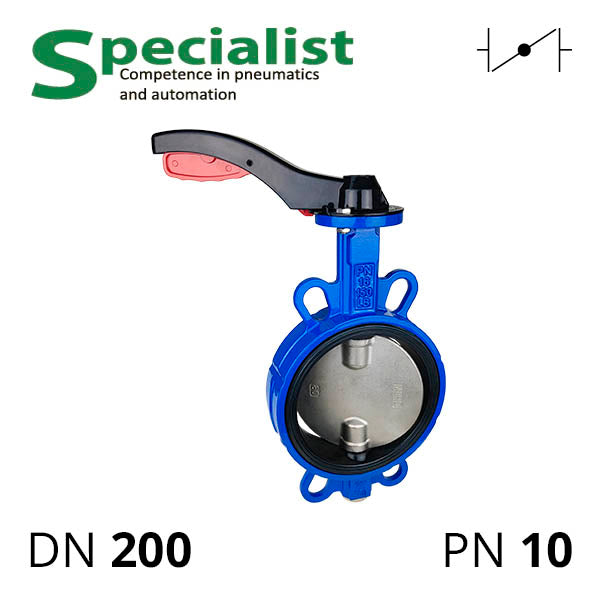

Manual Butterfly Valve PN10 DN200 series SCBF-D674-10XEC/10XES/10XFS-200-H is a butterfly type valve with a cast stainless steel disk CF8/CF8M (equivalent to AISI 304/316) with wafer mounting and handle installed for operation.

The multi-position handle has a locking mechanism – it can be stopped in 10 intermediate positions for throttling and flow regulation of substances in the pipeline. The Butterfly Valve SCBF-D674-10XEC/10XES/10XFS-200-H can be controlled by water and liquid mixtures whose chemical composition is compatible with CF8/CF8M and seat material – EPDM or PTFE.

Table – Main Parameters of Manual Butterfly Valve SCBF-D674-10XEC/10XES/10XFS-200-H
Nominal Diameter	DN200 (200 mm)
Nominal Pressure	PN10 (1 MPa, 10 bar)
Body Material	WCB (carbon steel)
Disk Material	CF8/CF8M per ASTM A351 (equivalent to SS304/316)
Sealing Material	EPDM or PTFE
EPDM Withstand Temperature	from −30 to 95° C
PTFE Withstand Temperature	from −40 to 160° C
Control Type	Manual
Installation Thickness	60 mm

This manual stainless steel butterfly valve is installed on a pipe with a passage diameter of 200 millimetres between pre-welded collar flanges ISO 7005-1(EN 1092-2). The body has lugs with holes ("ears") for centring the butterfly valve between the flanges.

The manual drive can be replaced with pneumatic or electric. On order, we supply this type of valve with PN16.
