Disc rotary valve DU 300 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-300

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 300 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-300

Name: Disc rotary valve DU 300 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-300
Brand: Specialist
SKU: SCBF-D673-10XEX-300
Price: 13739.76 UAH
Availability: InStock

In Stock

Diameter of conditional passage

300

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 13 739,76 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-300

Disc rotary valve DU 300 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-300

Diameter of conditional passage=300 Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-300

13 739,76 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

78 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 300

Тип засувки

disc rotary shutter

Nominal diameter

300

Inlet pressure

Ru10 (10 bars)

Тип контролю

Drive-in site

Description

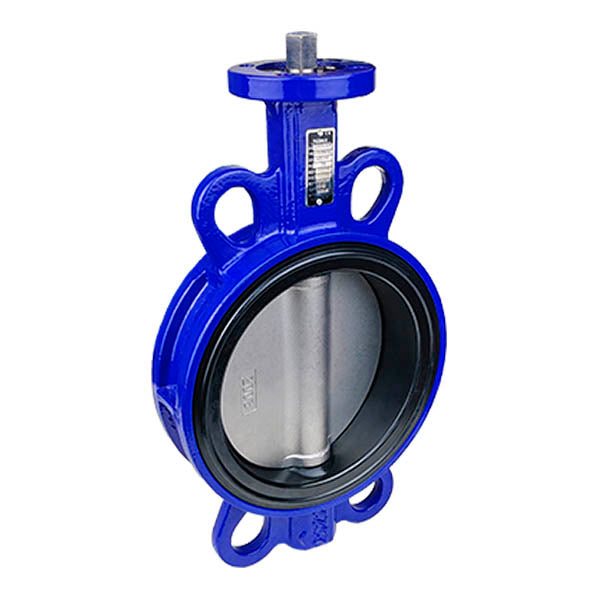

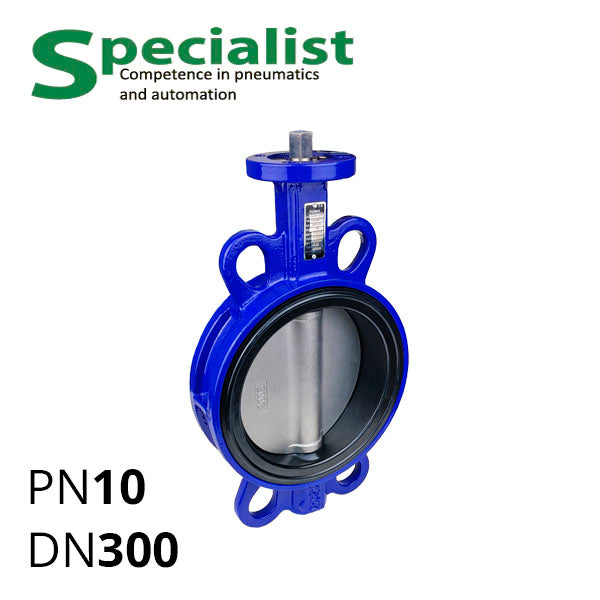

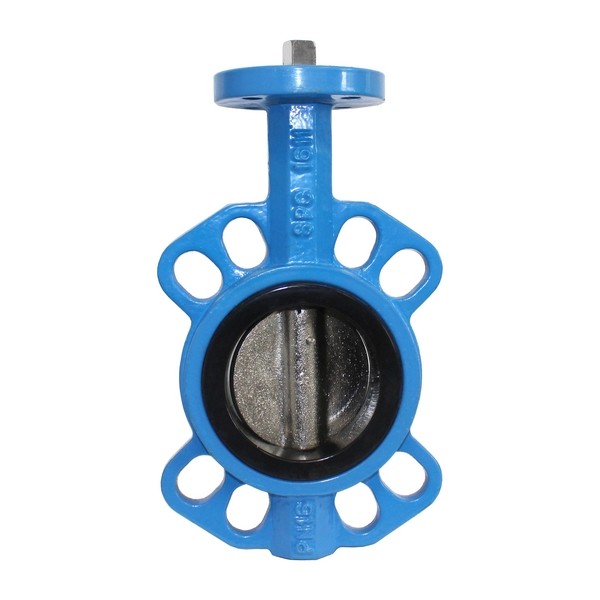

Industrial Butterfly Valve Wafer Type Cast Iron Series SCBF-D673-10XEX-300 is a non-dismantling "butterfly" valve with a body and disc made of cast carbon steel WCB, which unlike grey and ductile iron can operate under high pressure and has better heat resistance. Nominal bore diameter for pipes DN 300 mm. Supplied with a standardised platform for installing pneumatic, electric actuators or handles size F10.

These cast iron wafer type butterfly valves DN 300 are shut-off and control pipeline fittings — they can be used for operation in "open/close" mode and intermediate positions for regulating non-aggressive gases, air, water, liquids with low concentration alkalis and limited small amounts of acids. The working medium should be checked for compatibility with WCB and EPDM. Permissible working pressure (default) — PN up to 10 bar.

Table — Main Parameters of Butterfly Valve SCBF-D673-10XEX-300
DN	300 mm
Nominal Pressure	PN 10 bar (1 MPa)
Body Material	WCB according to ASTM A216
Disc Material	WCB according to ASTM A216
Seal Material	EPDM
Operating Temperature	from −30 to 95° C
Actuator Platform ISO 5211	F10
Shaft Output	square 22 mm
Recommended Actuator Torque	at least 590 N⋅m
Mounting Thickness	78 mm

Our company Specialist (Ukraine) also supplies DN300 valves with custom materials and installed actuators (handles, pneumatic actuators and electric actuators with position regulation.
