Disc rotary valve DU 80 stainless inter-flange collapsible series SCBF-D674

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 80 stainless inter-flange collapsible series SCBF-D674

Name: Disc rotary valve DU 80 stainless inter-flange collapsible series SCBF-D674
Brand: Specialist
SKU: SCBF-D674-10XEC-80
Price: 1741.80 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 1 741,80 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-80

Disc rotary valve DU 80 stainless inter-flange collapsible series SCBF-D674

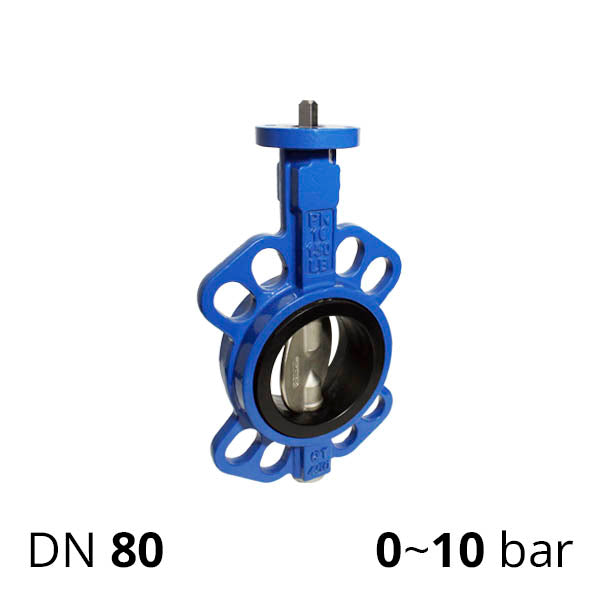

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-80

1 741,80 UAH

In Stock

SCBF-D674-10XES-80

Disc rotary valve DU 80 stainless inter-flange collapsible series SCBF-D674

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-80

1 914,12 UAH

In Stock

SCBF-D674-10XFS-80

Disc rotary valve DU 80 stainless inter-flange collapsible series SCBF-D674

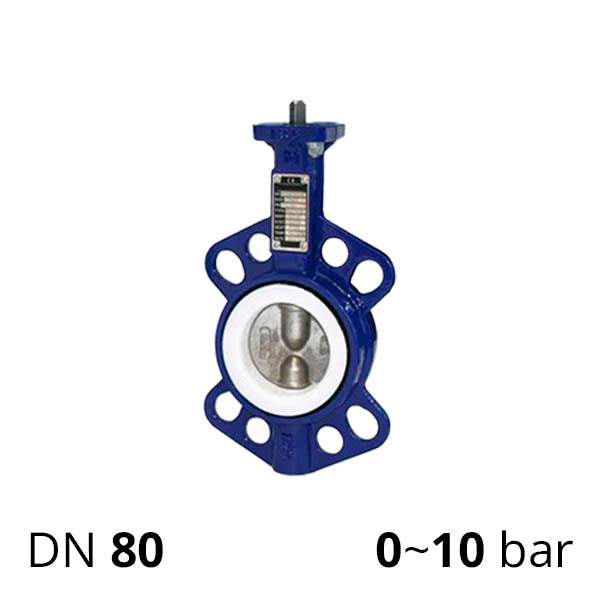

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-80

3 275,52 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

45 mm

Диск

SS304, SS316

Матеріал диску

Stainless steel AISI 304 SS, Stainless steel AISI 316 SS

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 80

Тип засувки

Disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

Drive-in site

Description

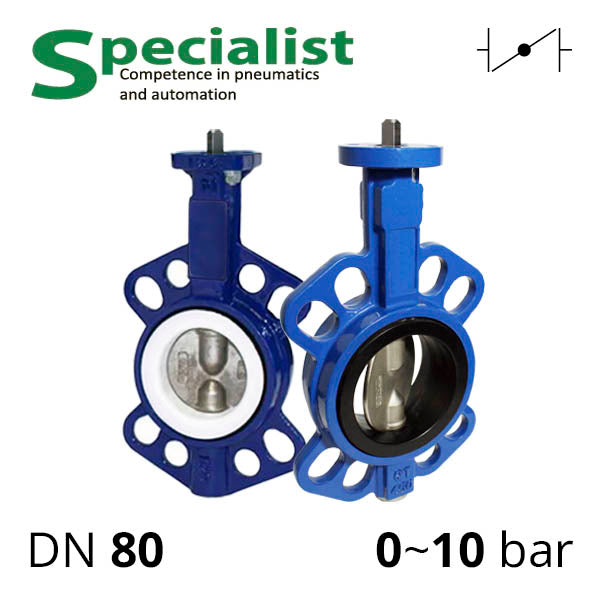

Stainless steel wafer lug butterfly valve series SCBF-D674-10XEC/10XES/10XFS-80 is a repairable and reconfigurable butterfly valve with a body made of cast carbon steel WCB and a disc made of food-grade stainless steel CF8 or CF8M (equivalents AISI 304/316 SS). It has a nominal passage diameter of DN 80 mm and is supplied with a standard platform for installation of pneumatic, electric actuators or handles size F05.

These wafer butterfly valves DN 80 serve as shut-off and control fittings — they can be used for "open/closed" operations as well as intermediate positions for regulating the volume of non-aggressive gases, air, water, liquids with low concentrations of acids and alkalis, chemical mixtures compatible with CF8/CF8M and EPDM/PTFE. For petroleum products DN80, choose valves with CF8M(SS316)+PTFE. The default operating pressure is PN up to 10 bar.

Table — Main parameters of the butterfly valve SCBF-D674-10XEC/10XES/10XFS-80
DN	80 mm
Nominal pressure	PN 10 bar (1 MPa)
Body material	WCB (carbon steel)
Disc material	CF8M according to ASTM A351 (equivalent to SS316)
Seal material	EPDM or PTFE
EPDM temperature range	from −30 to 95° C
PTFE temperature range	from −40 to 160° C
Mounting pad ISO 5211	F05
Shaft output	square 9 mm
Recommended drive torque	at least 42 N⋅m for EPDM, at least 51 N⋅m for PTFE
Installation thickness	45 mm

Specialist (Ukraine) directly imports shut-off and regulating fittings from China and Europe and has a stock of manual, electric and pneumatic actuators, flanges, and other pipeline components — positioners, etc. You can buy a valve of the required sizes and materials at a fair price.
