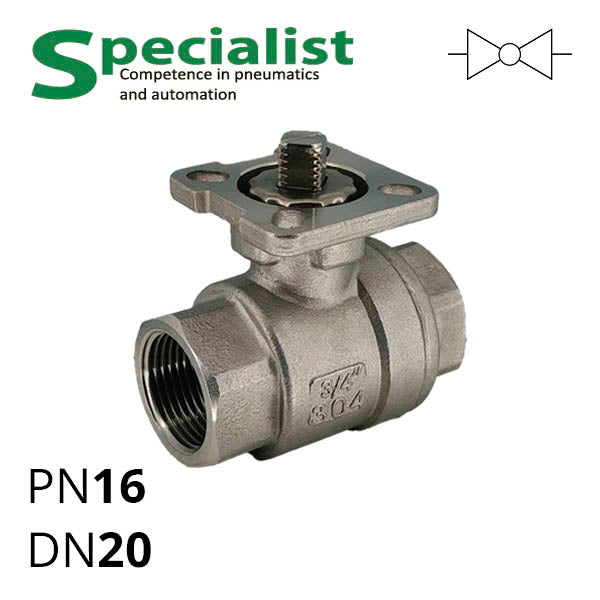

Ball valve 3/4″ stainless DN20 PN16 two-way two-fold SCBV-Q610F-16FC-20

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Ball valve 3/4″ stainless DN20 PN16 two-way two-fold SCBV-Q610F-16FC-20

Name: Ball valve 3/4″ stainless DN20 PN16 two-way two-fold SCBV-Q610F-16FC-20
Brand: Specialist
SKU: SCBV-Q610F-16FC-20
Price: 1057.68 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Thread size

G 3/4

Model

Manufacturer

Specialist

from 1 057,68 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBV-Q610F-16FC-20

Ball valve 3/4″ stainless DN20 PN16 two-way two-fold SCBV-Q610F-16FC-20

Diameter of conditional passage=20 Thread size=G 3/4

SCBV-Q610F-16FC-20

1 057,68 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 3/4"

Матеріал диску

SS304 stainless steel, SS316 stainless steel

Матеріал ущільнення

PTFE

Body material

Steel WCB

Nominal diameter

TWO 20

Тип засувки

ball valve

Nominal diameter

Inlet pressure

Ru16 (16 bars)

Тип контролю

drive platform

Description

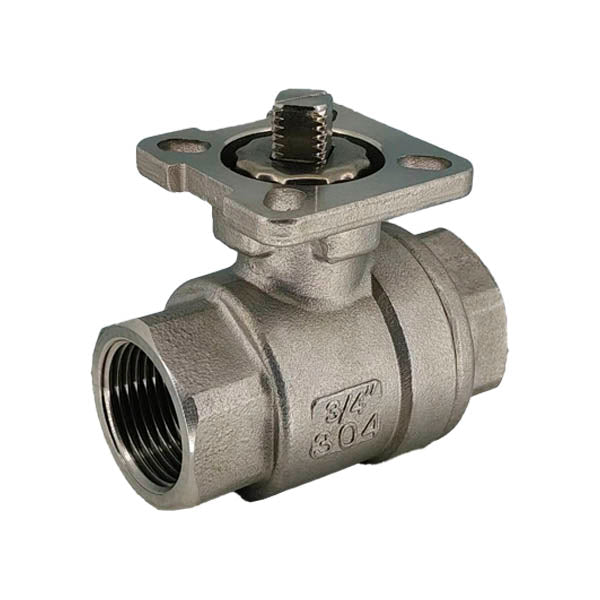

Two-piece two-way threaded ball valves 3/4″ series SCBV-Q610F-16FC-20 made of stainless steel with PTFE seals are used for pipes DN 20 mm. Designed for controlling and shutting off the working medium — air, water, gas, oil, chemical and food products and other substances compatible with the valve materials. The two-piece ball valve DN20 has internal threaded connections half inch on both sides, and also includes a universal platform for a handle, electric or pneumatic actuator.

Table — Main Characteristics of Stainless Steel Threaded Ball Valves SCBV-Q610F-16FC-20
Nominal Diameter	DN 20
Thread	3/4 inch
Seal and Operating Temperatures	PTFE -40...180 °C
Max. Working Pressure	16 bar (or custom 25, 40 or 64 bar)
Working Medium	Air, water, gas, oil, chemical products and other materials compatible with the valve materials

Main Components of Ball Valve SCBV-Q610F-16FC-20

The list of constituent components of the ball valve SCBV-Q610F-16FC-20 is provided using the example of similar 3-piece ball valves of series Q611 (see figure below). For 2-piece ball valves SCBV-Q610F-16FC-20, the same materials for components are used.

Components of the ball valve with pneumatic actuator

Table — Material of Components of 2-Piece 2-Way Ball Valve
№	Name	Material
№	Name	C (default)	P (custom)
1	Bolt	Stainless Steel 304	Stainless Steel 304
2	Flange*	Standard Cast Steel WCB	Stainless Steel CF8, CF6M
3	Seal	PTFE	PTFE
4	Ball	Stainless Steel 304	Stainless Steel 316
5	Body	Standard Cast Steel WCB	Stainless Steel CF8, CF6M
6	Nut	Stainless Steel 304	Stainless Steel 304
7	Stem	Stainless Steel 304	Stainless Steel 316
8	Gasket	PTFE	PTFE
9	Seal	PTFE	PTFE
10	Nut	Stainless Steel 304	Stainless Steel 316
11	Bracket Adapter	Stainless Steel CF8	Stainless Steel CF8
12	Adaptor	Stainless Steel 304	Stainless Steel 304
13	Bolt	Stainless Steel 304	Stainless Steel 304
14	Pneumatic or electric actuator (ordered separately)
15	Rotational angle indicator
