Ball valve 3/4″ stainless PN16 DN20 with internal thread SCBV-Q611F-16FC-20

Name: Ball valve 3/4″ stainless PN16 DN20 with internal thread SCBV-Q611F-16FC-20
Brand: Specialist
SKU: SCBV-Q611F-16FC-20
Price: 1168.56 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Thread size

G 3/4

Model

Manufacturer

Specialist

from 1 168,56 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBV-Q611F-16FC-20

Ball valve 3/4″ stainless PN16 DN20 with internal thread SCBV-Q611F-16FC-20

Diameter of conditional passage=20 Thread size=G 3/4

SCBV-Q611F-16FC-20

1 168,56 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 3/4"

Матеріал диску

SS304 stainless steel, SS316 stainless steel

Матеріал ущільнення

PTFE

Body material

Steel WCB

Nominal diameter

TWO 20

Тип засувки

ball valve

Nominal diameter

Inlet pressure

Ru16 (16 bars)

Тип контролю

drive platform

Description

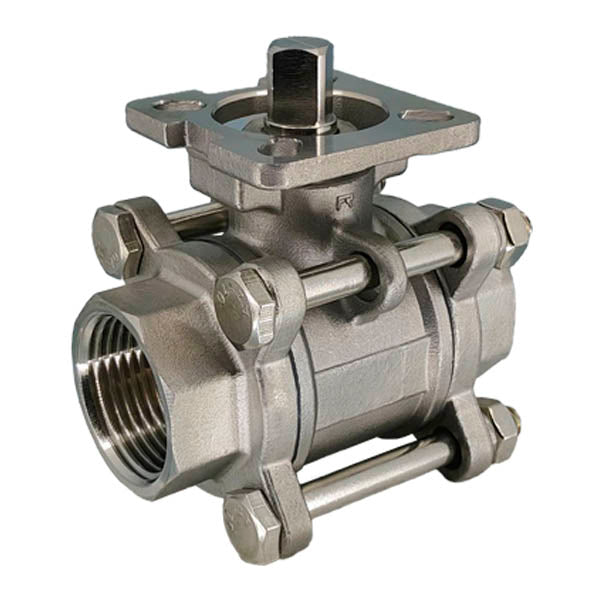

1/2″ Stainless Steel Ball Valve FF (DN20) SCBV-Q611F-16FC-20 is an industrial two-way full bore shut-off element with reliable pressure rating PN16 and repair-friendly design. This ball valve model features a three-piece body with internal thread couplings G 1/2″ (pipe cylindrical thread type "G" in inches), a stainless steel ball SS 304, and uses PTFE sealing. We sell ball valves with standardized mounting flanges for handles, electric or pneumatic actuators models SC-RAT/RST-52.

The ball valve SCBV-Q611F-16FC-20 is suitable for use with cold, hot water, drinking beverages and food mixtures, petroleum products, compressed air, and gases, provided they are compatible with PTFE and steel grade AISI304.

Specifications for Ball Valve SCBV-Q611F-16FC-20
Type	Two-way Ball Valve
Connection Size	G 1/4″
DN	20 mm
Bore Diameter	Full Bore
Leakage Class	A
Nominal Working Pressure	PN16 (16 bar, 1.6 MPa)
Operating Temperature	from -40 to 180°C (no freezing liquid)
Mounting Plate (ISO 5211)	F-04/F-05
Actuator	On Request
Body Material	Stainless Steel Grade 304
Sealing Material	PTFE
Working Medium	Water, Oil, Gas
Country of Origin	China

As a supplier, we, the company "Specialist", guarantee the quality of the ball valves and upon request can provide certification for the product to confirm technical information from the catalogue, additional information. We can provide a commercial proposal with pricing for bulk purchases and offer manufacturing of ball valves from other steel grades, with additional reinforcement to meet PN40 (up to 40 bar), PN64 (up to 64 bar). Call to order.

You can buy the ball valve for self-collection from Lviv or Dnipro or with delivery to Kyiv and other cities in Ukraine through Nova Poshta. The delivery cost is per the carrier's tariff.
