Ball valve 1″ stainless PN16 DN25 with internal thread SCBV-Q611F-16FC-25

Name: Ball valve 1″ stainless PN16 DN25 with internal thread SCBV-Q611F-16FC-25
Brand: Specialist
SKU: SCBV-Q611F-16FC-25
Price: 1470.78 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Thread size

G 1

Model

Manufacturer

Specialist

from 1 470,78 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBV-Q611F-16FC-25

Ball valve 1″ stainless PN16 DN25 with internal thread SCBV-Q611F-16FC-25

Diameter of conditional passage=25 Thread size=G 1

SCBV-Q611F-16FC-25

1 470,78 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 1"

Матеріал диску

SS304 stainless steel

Матеріал ущільнення

PTFE

Body material

SS304 stainless steel

Nominal diameter

TWO 25

Тип засувки

Ball valve

Nominal diameter

Inlet pressure

Ru16 (16 bars)

Тип контролю

Drive-in site

Description

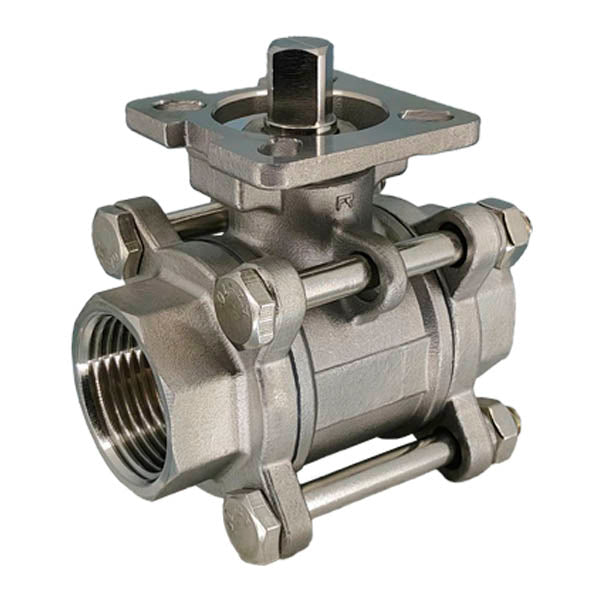

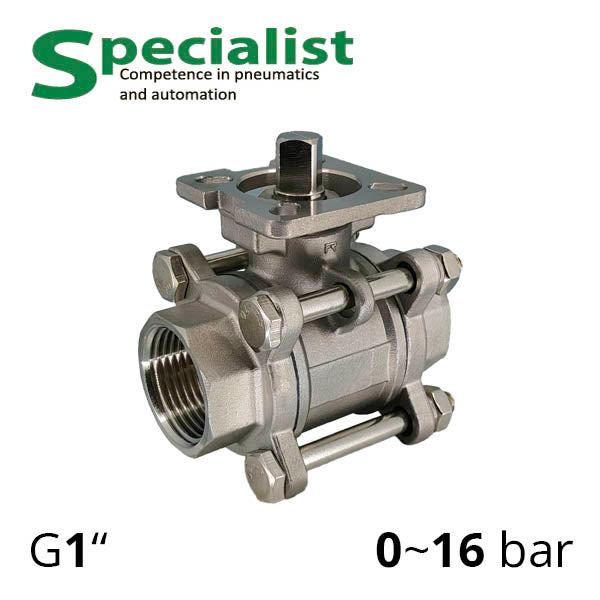

SCBV-Q611F-16FC-25 Series Stainless Steel Inch Ball Valves are shut-off valves for pipes with a diameter of DN 25 mm. This stainless steel ball valve model is the best in the following parameters:

Full Bore. The size of the valve ball corresponds to the DN25 pipe, providing optimal flow capacity for high-pressure environments;
3-Piece. The main body has threaded couplings with internal thread 1 inch, tightened with studs — provides tightness and reliability of the ball valve and makes it suitable for repair;
Universal standardized platform with flange and square outlet for manual, pneumatic, or electric drive mounting by Specialist or other manufacturers;
Antistatic device;
Leakage prevention through the stem;
Possibility of Custom Ball Valve Production with different grades of steel and reinforcement to meet PN16, PN16, PN40 or PN64. Supplied with the selected drive and star adapter, if necessary;

Ball valves with a diameter of 1 inch series Q611F can be used for heat and water supply. They have corrosion resistance for cold and hot water, suitable for drinking beverages and food industry, some petroleum and chemical products (need to verify and check compatibility of substances with PTFE-Teflon and AISI304).

Specifications of 1″ Coupling Ball Valve SCBV-Q611F-16FC-25
Type	2-Way Ball Valve
Connection Size	G 1″
DN	25 mm
Ball Diameter	Full Bore
Seal Class	A
Nominal Operating Pressure	PN16 (16 bar, 1.6 MPa)
Operating Temperature	from -40 to 180°C (no freezing of the liquid)
Drive Platform (ISO 5211)	F-04/F-05
Drive	On Order
Body and Ball Material	Stainless Steel Grade 304
Seat Seal Material	PTFE
Operating Medium	Water, Oil, Gas
Country of Origin	China

Marking on the SCBV-Q611F-16FC-25 valve body:

1000 WOG
1"
304

Specialist is a direct importer and supplier of stainless steel ball valves in Ukraine. We guarantee conformity of shut-off valves with their quality certificate, offer discounts for wholesale sales and fittings for our pneumatic drive SC-RAT52, SC-RST52, electric drive HL with heating or handle.
