Disc rotary valve DU 50 stainless inter-flange collapsible with handle SCBF-D674 series

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 50 stainless inter-flange collapsible with handle SCBF-D674 series

Name: Disc rotary valve DU 50 stainless inter-flange collapsible with handle SCBF-D674 series
Brand: Specialist
SKU: SCBF-D674-10XEC-50-H
Price: 1361.40 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 1 361,40 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-50-H

Disc rotary valve DU 50 stainless inter-flange collapsible with handle SCBF-D674 series

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-50-H

1 361,40 UAH

In Stock

SCBF-D674-10XES-50-H

Disc rotary valve DU 50 stainless inter-flange collapsible with handle SCBF-D674 series

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-50-H

1 552,20 UAH

In Stock

SCBF-D674-10XFS-50-H

Disc rotary valve DU 50 stainless inter-flange collapsible with handle SCBF-D674 series

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-50-H

1 983,06 UAH

In Stock

Technical specifications

Connection type

inter-flange

Installation length

41 mm

Диск

SS304, SS316

Матеріал диску

stainless steel SS304, stainless steel SS316

Матеріал ущільнення

EPDM

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 50

Тип засувки

disc rotary shutter

Inlet pressure

Rooster (10 bars)

Тип контролю

handled

Description

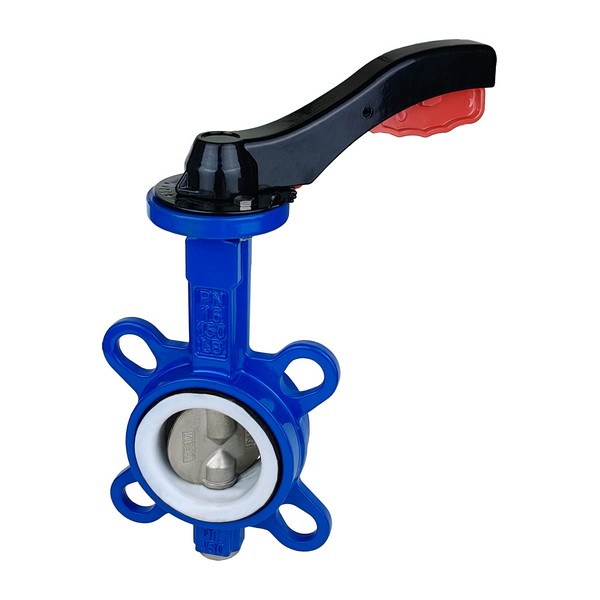

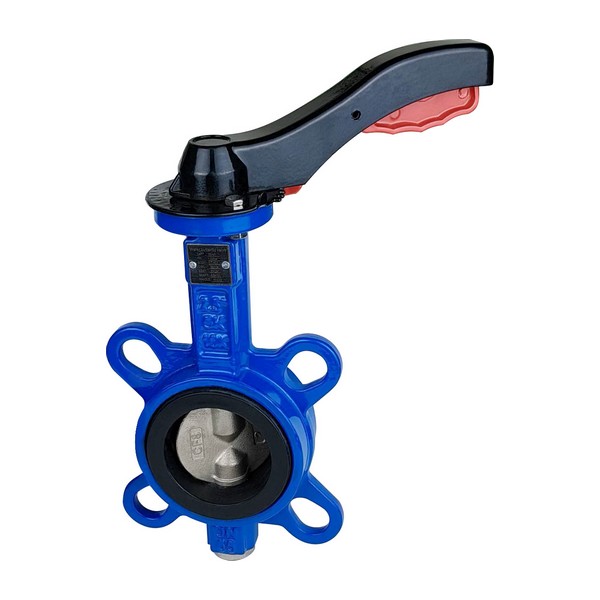

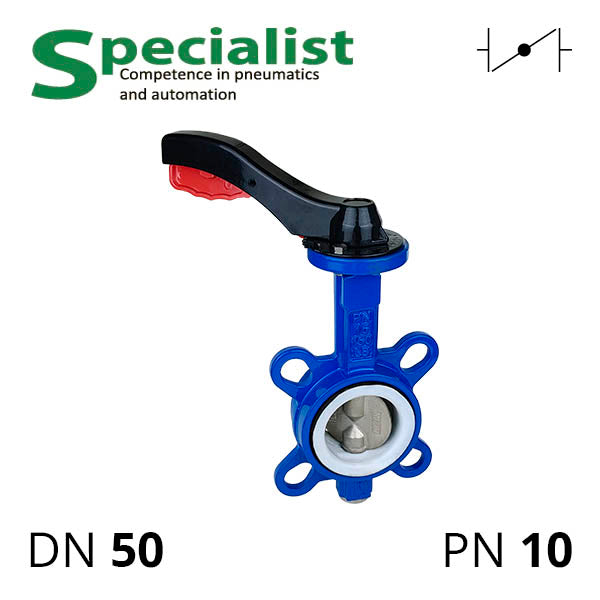

Manual butterfly valve PN10 DN50 SCBF-D674-10XEC/10XES/10XFS-50-H series is a "butterfly" type valve with a cast stainless steel disc CF8 (equivalent to food stainless steel AISI 306) or CF8M with molybdenum ("marine" stainless steel AISI 316).

The wafer type valve comes with a multi-position handle and anti-rotation mechanism — it can be stopped in 10 intermediate positions for throttling and flow regulation in the pipeline. The butterfly valve SCBF-D674-10XEC/10XES/10XFS-50-H can handle water and liquid mixtures whose chemical composition is compatible with CF8/CF8M and the seat material — EPDM or PTFE.

Table — Main Parameters of the Manual Butterfly Valve SCBF-D674-10XEC/10XES/10XFS-50-H
Nominal Diameter	DN50 (50 mm)
Nominal Pressure	PN10 (1 MPa, 10 bar)
Body Material	WCB (Carbon Steel)
Disc Material	CF8M according to ASTM A351 (equivalent to SS316), CF8 (SS305)
Seal Material	EPDM or PTFE
EPDM Temperature Range	from −30 to 95° C
PTFE Temperature Range	from −40 to 160° C
Control Type	Manual
Installation Thickness	41 mm

This stainless steel manual butterfly valve is installed in a pipe with a nominal diameter of 50 millimetres between pre-welded flange collars ISO 7005-1(EN 1092-2). The body has lugs with holes ("ears") for centering the butterfly valve between the flanges.

The manual drive can be replaced with a pneumatic or electric one. On request, we supply this type of valve with PN16.
