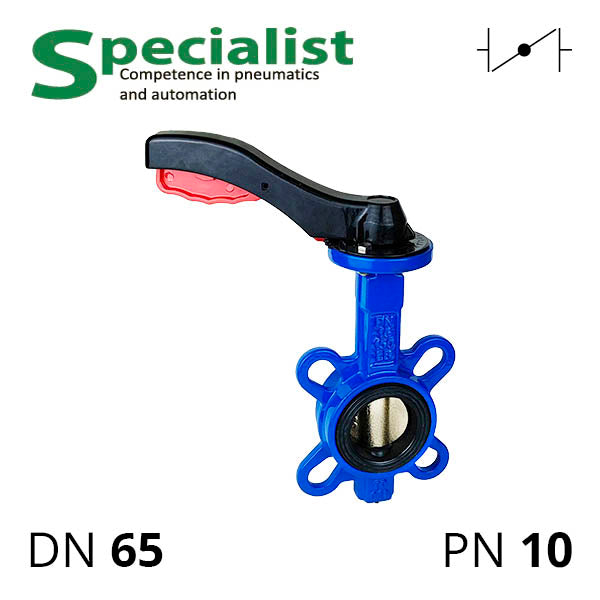

Disc rotary latch DU 65 cast iron inter-flange non-dismountable with handle SCBF-D673 series

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary latch DU 65 cast iron inter-flange non-dismountable with handle SCBF-D673 series

Name: Disc rotary latch DU 65 cast iron inter-flange non-dismountable with handle SCBF-D673 series
Brand: Specialist
SKU: SCBF-D673-10XEX-65-H
Price: 1395.90 UAH
Availability: InStock

In Stock

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 1 395,90 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-65-H

Disc rotary latch DU 65 cast iron inter-flange non-dismountable with handle SCBF-D673 series

Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-65-H

1 395,90 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

45 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 65

Тип засувки

disc rotary shutter

Inlet pressure

Rooster (10 bars)

Тип контролю

Handled

Description

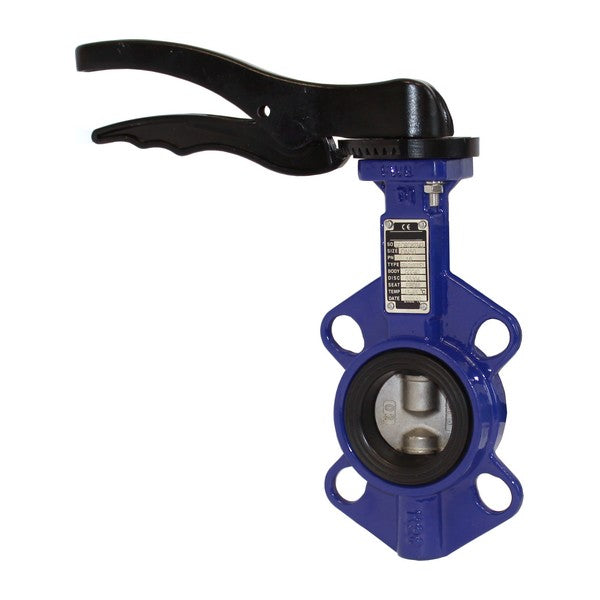

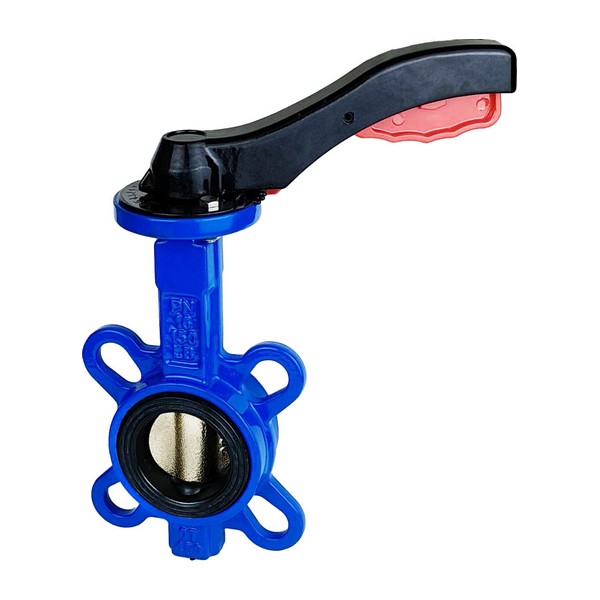

The iron manual model SCBF-D673-10XEX-65-H is a butterfly type wafer valve PN 10 DN 65 with cast steel body and WCB disk, EPDM seals. Unlike grey and ductile iron, WCB butterfly valves can operate under pressure and with hot water, non-aggressive gases, liquids, weak alkalis, and most organic acids. The working media are checked for compatibility with WCB and EPDM.

The handle comes with an anti-turn mechanism and 10 intermediate stop positions for the valve DN65 SCBF-D673-10XEX-65-H for throttling and regulating the flow of substances through the pipeline.

Table — Main characteristics of the iron wafer butterfly valve SCBF-D673-10XEX-65-H
Nominal Bore Diameter	DN65 (65 mm)
Nominal Pressure	PN10 (1 MPa, 10 bar)
Body Material	Iron WCB (cast carbon steel)
Disc Material	Iron WCB
Seal Material	EPDM
Withstand Temperature	from -30 to 95° C
Control Type	Manual control
Installation Thickness	45 mm

This manual iron wafer valve is installed on a pipe with a nominal bore diameter of 65 millimetres between pre-welded collar flanges ISO 7005-1(EN 1092-2). The body features lugs with holes ("ears") for centring the butterfly valve between flanges.

The manual drive can be replaced with a pneumatic or electric one. On request, we supply this type of valves with PN16.
