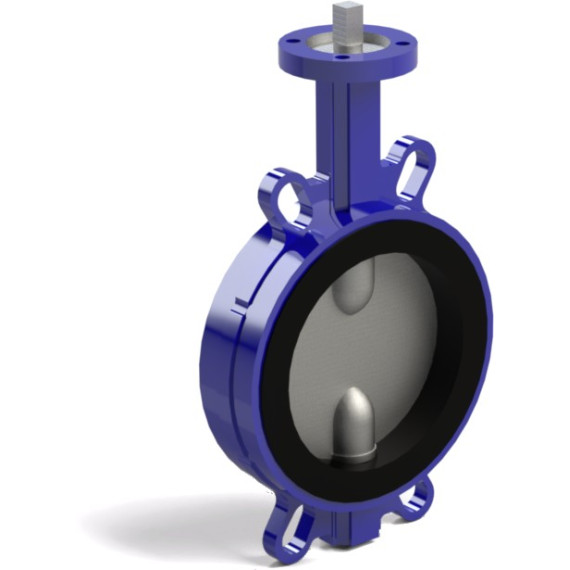

Disc rotary valve DU 100 stainless inter-flange collapsible series SCBF-D674

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 100 stainless inter-flange collapsible series SCBF-D674

Name: Disc rotary valve DU 100 stainless inter-flange collapsible series SCBF-D674
Brand: Specialist
SKU: SCBF-D674-10XEC-100
Price: 2406.48 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 2 406,48 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-100

Disc rotary valve DU 100 stainless inter-flange collapsible series SCBF-D674

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-100

2 406,48 UAH

In Stock

SCBF-D674-10XES-100

Disc rotary valve DU 100 stainless inter-flange collapsible series SCBF-D674

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-100

2 665,02 UAH

In Stock

SCBF-D674-10XFS-100

Disc rotary valve DU 100 stainless inter-flange collapsible series SCBF-D674

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-100

4 078,14 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Диск

SS304, SS316

Матеріал диску

Stainless steel AISI 304 SS, Stainless steel AISI 316 SS

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 100

Тип засувки

Disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

Drive-in site

Description

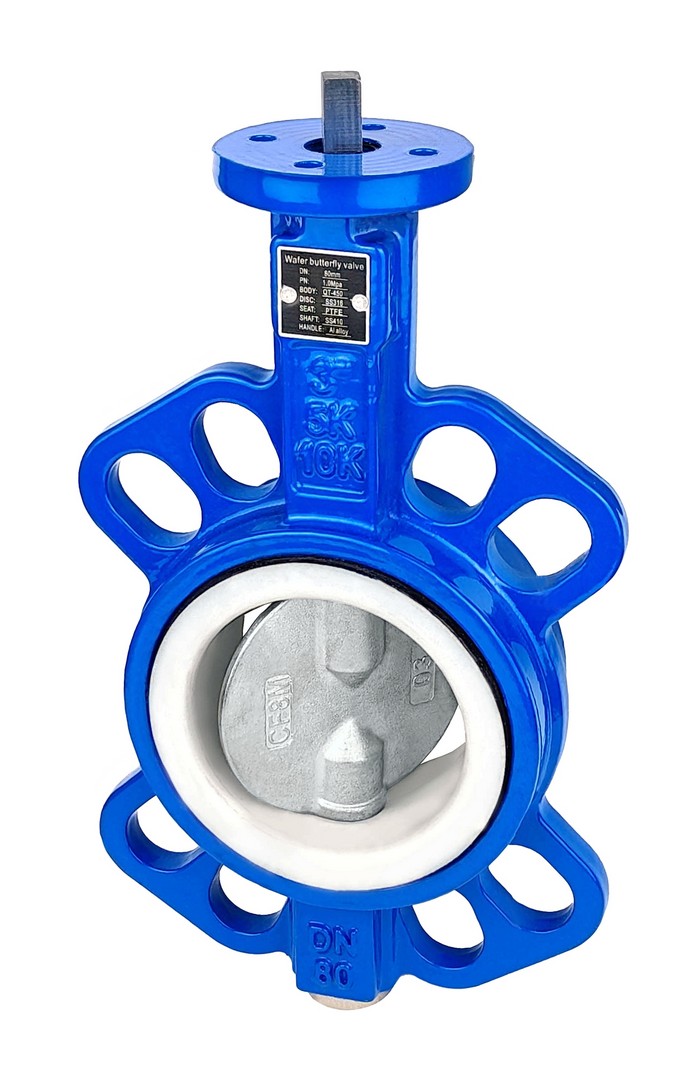

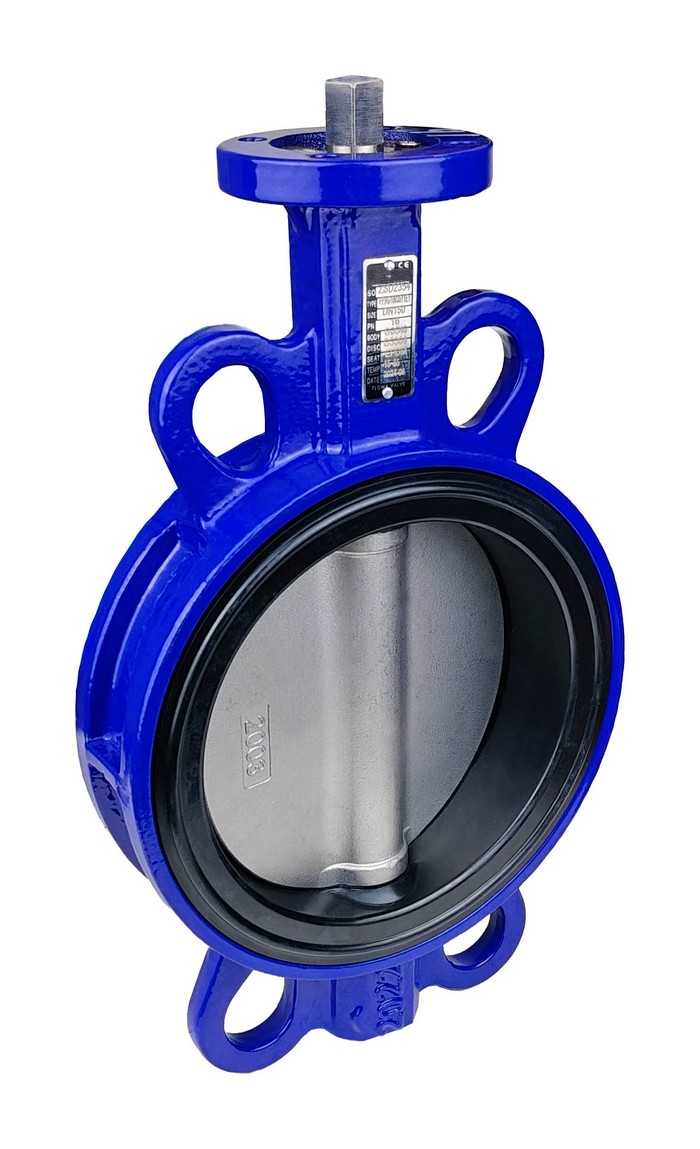

Wafer Type Disc Butterfly Valve Stainless Steel Series SCBF-D674-10XEC/10XES/10XFS-100 is a dismantlable, repairable butterfly valve with a body made of cast carbon steel WCB and a disc of stainless steel CF8/CF8M (equivalent AISI 304/316 SS). It has a nominal bore diameter of DN 100 mm. For installation of a pneumatic, electric actuator or handle, it comes with a standardised platform size F07.

These wafer-type butterfly valves DN 100 are shut-off and control valves - they can be used for "open/close" operation as well as intermediate positions to regulate the volume of non-aggressive gases, air, water, liquids with a mild concentration of acids and alkalis, chemical mixtures compatible with CF8/CF8M and EPDM/PTFE. The permissible working pressure (by default) is PN up to 10 bar.

Table — Main Parameters of the Disc Butterfly Valve SCBF-D674-10XEC/10XES/10XFS-100
DN	100 mm
Nominal Pressure	PN 10 bar (1 MPa)
Body Material	WCB (Carbon Steel)
Disc Material	CF8/CF8M per ASTM A351 (equivalent SS304/SS316)
Seal Material	EPDM or PTFE
Sustainable EPDM Temperature	from −30 to 95°C
Sustainable PTFE Temperature	from −40 to 160°C
Mounting Pad ISO 5211	F07
Shaft Output	square 11 mm
Recommended Actuator Torque	not less than 60 N⋅m for EPDM, not less than 73 N⋅m for PTFE
Mounting Thickness	52 mm

Company Specialist (Ukraine) imports shut-off and control valves directly from China and Europe and also stocks manual, electric, and pneumatic actuators, flanges, other components for piping systems - positioners, etc. At our store, you can purchase a valve of required sizes and materials at a fair price.
