Disc rotary valve DU 150 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-150

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 150 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-150

Name: Disc rotary valve DU 150 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-150
Brand: Specialist
SKU: SCBF-D673-10XEX-150
Price: 3226.32 UAH
Availability: InStock

In Stock

Diameter of conditional passage

150

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 3 226,32 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-150

Disc rotary valve DU 150 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-150

Diameter of conditional passage=150 Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-150

3 226,32 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

56 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 150

Тип засувки

disc rotary shutter

Nominal diameter

150

Inlet pressure

Ru10 (10 bars)

Тип контролю

Drive-in site

Description

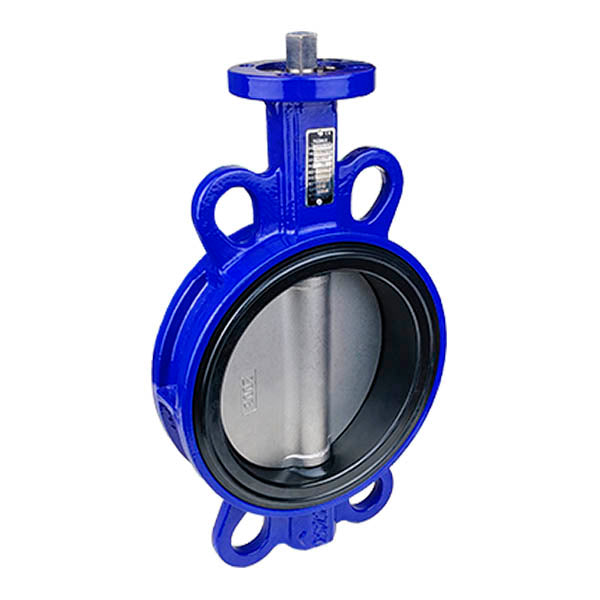

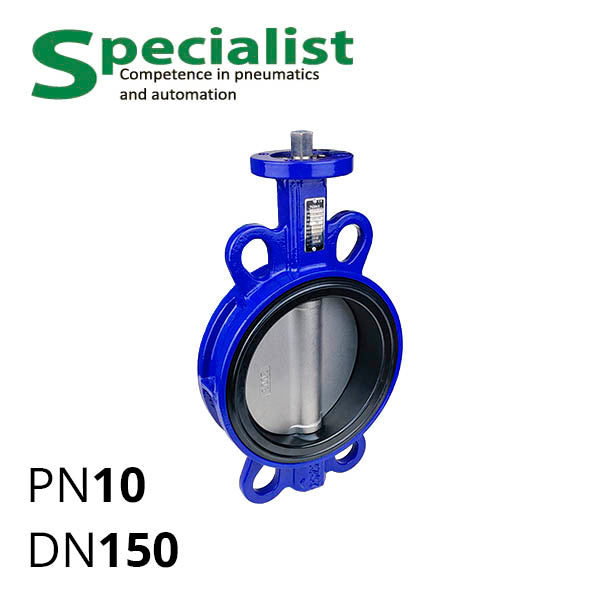

The industrial butterfly valve wafer type cast iron series SCBF-D673-10XEX-150 is a non-removable butterfly valve with a body and disc made of cast carbon steel WCB, which unlike grey and ductile iron, can operate under high pressure and has better thermal resistance. Nominal pipe diameter DN 150 mm. Delivered with a standardized platform for installing pneumatic, electric drives or handles size F07.

These cast iron wafer type butterfly valves DN 150 are shut-off regulating pipeline fittings — they can be used for operating in "open/close" mode and in intermediate positions for volume regulation of non-aggressive gases, air, water, liquids with a low concentration of alkalis and a limited small amount of acids. The working medium should be checked for compatibility with WCB and EPDM. The permissible operating pressure (by default) — PN up to 10 bar.

Table — Main parameters of the butterfly valve SCBF-D673-10XEX-150
DN	150 mm
Nominal Pressure	PN 10 bar (1 MPa)
Body Material	WCB according to ASTM A216
Disc Material	WCB according to ASTM A216
Sealing Material	EPDM
Operating Temperature	from −30 to 95°C
Drive Platform ISO 5211	F07
Shaft Output	square 14 mm
Recommended Drive Torque	not less than 144 N⋅m
Mounting Thickness	56 mm

Our company Specialist (Ukraine) also supplies DN150 valves with materials upon customer request and installed drives (handles, pneumatic drives, and electric drives with position regulation.
