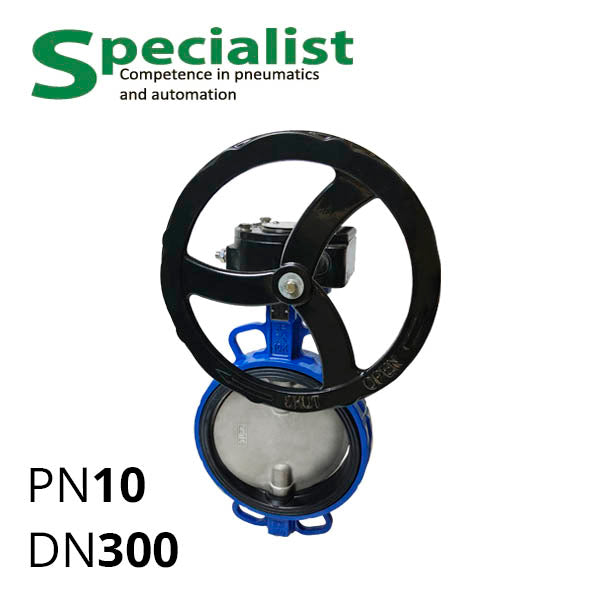

Disc rotary valve DU 300 stainless inter-flange collapsible with SCBF-D674 series reducer

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 300 stainless inter-flange collapsible with SCBF-D674 series reducer

Name: Disc rotary valve DU 300 stainless inter-flange collapsible with SCBF-D674 series reducer
Brand: Specialist
SKU: SCBF-D674-10XEC-300-G
Price: 22842.60 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 22 842,60 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-300-G

Disc rotary valve DU 300 stainless inter-flange collapsible with SCBF-D674 series reducer

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-300-G

22 842,60 UAH

In Stock

SCBF-D674-10XES-300-G

Disc rotary valve DU 300 stainless inter-flange collapsible with SCBF-D674 series reducer

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-300-G

26 722,50 UAH

In Stock

SCBF-D674-10XFS-300-G

Disc rotary valve DU 300 stainless inter-flange collapsible with SCBF-D674 series reducer

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-300-G

30 859,68 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

78 mm

Диск

SS304, SS316

Матеріал диску

SS304 stainless steel, SS316 stainless steel

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 300

Тип засувки

Disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With a gearbox

Description

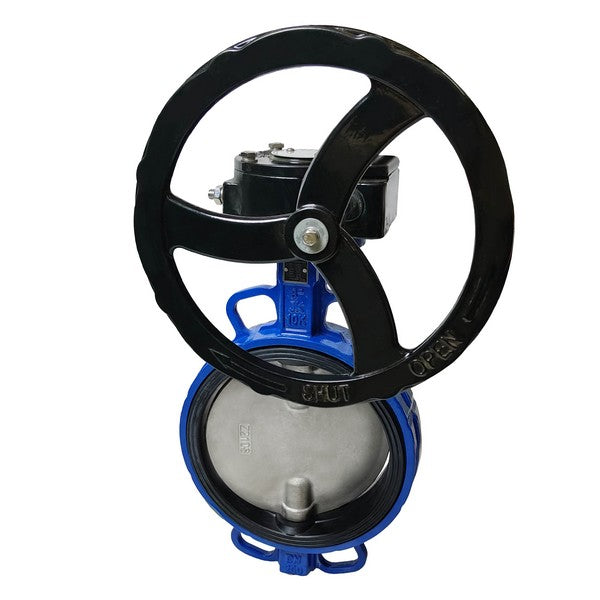

Manual disc butterfly valve PN10 DN250 series SCBF-D674-10XEC/10XES/10XFS-250-H is a "butterfly" valve with a cast stainless steel disc CF8/CF8M (equivalent to AISI 304/316) with wafer mounting and a manual drive with a handwheel through a mechanical worm gearbox.

The gearbox has marks every 10°, allowing it to be stopped at intermediate positions for throttling and adjusting the flow of substances through the pipeline. The disc valve SCBF-D674-10XEC/10XES/10XFS-250-H can control water and liquid mixtures whose chemical composition is compatible with CF8/CF8M and the seat material — EPDM or PTFE.

Table — Main parameters of manual disc butterfly valve SCBF-D674-10XEC/10XES/10XFS-250-H
Nominal bore diameter	DN250 (250 mm)
Nominal pressure	PN10 (1 MPa, 10 bar)
Body material	WCB (carbon steel)
Disc material	CF8/CF8M per ASTM A351 (equivalent to SS304/316)
Seal material	EPDM or PTFE
EPDM temperature resistance	from −30 to 95° C
PTFE temperature resistance	from −40 to 160° C
Type of control	With manual control
Installation thickness	67 mm

This manual stainless butterfly valve is installed on pipes with a nominal bore diameter of 250 millimetres between pre-welded collar flanges ISO 7005-1(EN 1092-2). The body has lugs with holes ("ears") for centring the butterfly valve between flanges.

The manual drive can be replaced with pneumatic or electric. On request, this type of valve is available with PN16.
