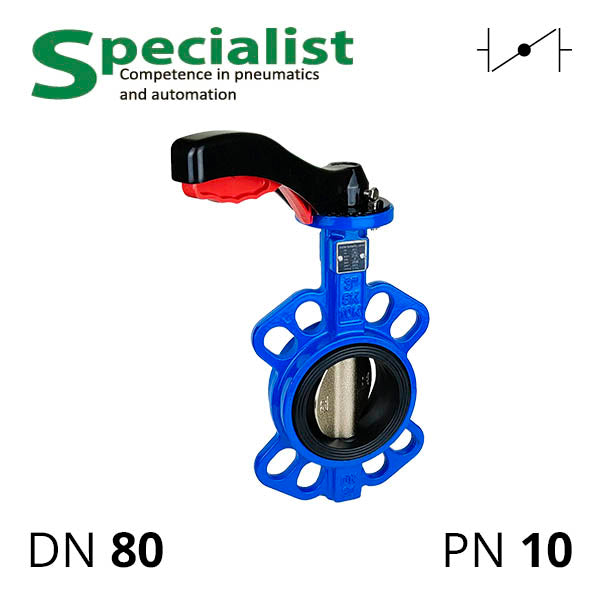

Disc rotary latch DU 80 cast iron inter-flange fixed with a handle SCBF-D673 series

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary latch DU 80 cast iron inter-flange fixed with a handle SCBF-D673 series

Name: Disc rotary latch DU 80 cast iron inter-flange fixed with a handle SCBF-D673 series
Brand: Specialist
SKU: SCBF-D673-10XEX-80-H
Price: 1552.20 UAH
Availability: InStock

In Stock

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 1 552,20 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-80-H

Disc rotary latch DU 80 cast iron inter-flange fixed with a handle SCBF-D673 series

Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-80-H

1 552,20 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

45 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 80

Тип засувки

disc rotary shutter

Inlet pressure

Rooster (10 bars)

Тип контролю

Handled

Description

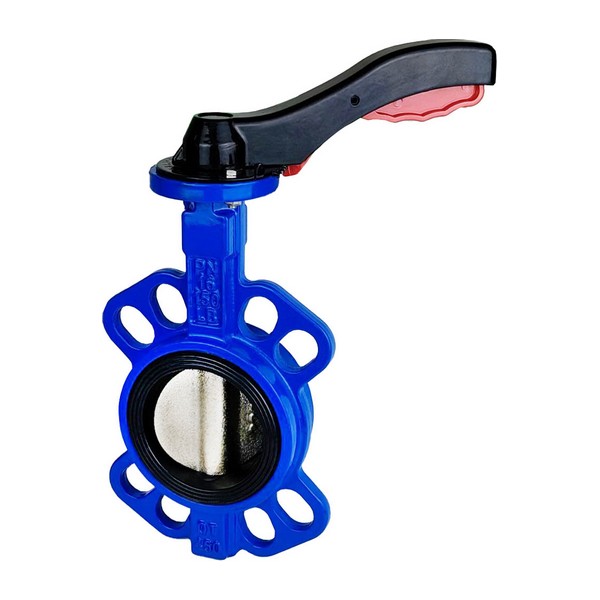

The cast iron manual model SCBF-D673-10XEX-80-H is a regulated butterfly type rotary valve PN10 DN80 with a cast steel body and WCB disc, EPDM seals. Unlike grey and ductile iron, butterfly valves with WCB can operate under pressure and with hot water, non-aggressive gases, liquids, weak alkalis, and most organic acids. The working medium is tested for compatibility with WCB and EPDM.

The handle includes an anti-turn mechanism and stops in 10 intermediate positions for valve DN80 SCBF-D673-10XEX-80-H for throttling and flow regulation through the pipeline.

Table — Main Characteristics of the Cast Iron Rotary Butterfly Valve SCBF-D673-10XEX-80-H
Nominal Bore Diameter	DN80 (80 mm)
Nominal Pressure	PN10 (1 MPa, 10 bar)
Body Material	Cast Iron WCB (cast carbon steel)
Disc Material	Cast Iron WCB
Seal Material	EPDM
Withstood Temperature	from -30 to 95° C
Control Type	Manual
Installation Thickness	45 mm

This cast iron manual butterfly valve is mounted on a pipe with a bore diameter of 80 millimetres between pre-welded collar flanges ISO 7005-1(EN 1092-2). The body features lugs with holes ("ears") for centring the butterfly valve between the flanges.

The manual drive can be replaced with pneumatic or electric. This type of valve is available on request with PN16.
