Disc rotary valve DU 65 stainless inter-flange collapsible with handle SCBF-D674 series

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 65 stainless inter-flange collapsible with handle SCBF-D674 series

Name: Disc rotary valve DU 65 stainless inter-flange collapsible with handle SCBF-D674 series
Brand: Specialist
SKU: SCBF-D674-10XEC-65-H
Price: 1638.42 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 1 638,42 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-65-H

Disc rotary valve DU 65 stainless inter-flange collapsible with handle SCBF-D674 series

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-65-H

1 638,42 UAH

In Stock

SCBF-D674-10XES-65-H

Disc rotary valve DU 65 stainless inter-flange collapsible with handle SCBF-D674 series

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-65-H

1 810,74 UAH

In Stock

SCBF-D674-10XFS-65-H

Disc rotary valve DU 65 stainless inter-flange collapsible with handle SCBF-D674 series

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-65-H

2 517,30 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

45 mm

Диск

SS304, SS316

Матеріал диску

stainless steel SS304, stainless steel SS316

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 65

Тип засувки

Disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

Handled

Description

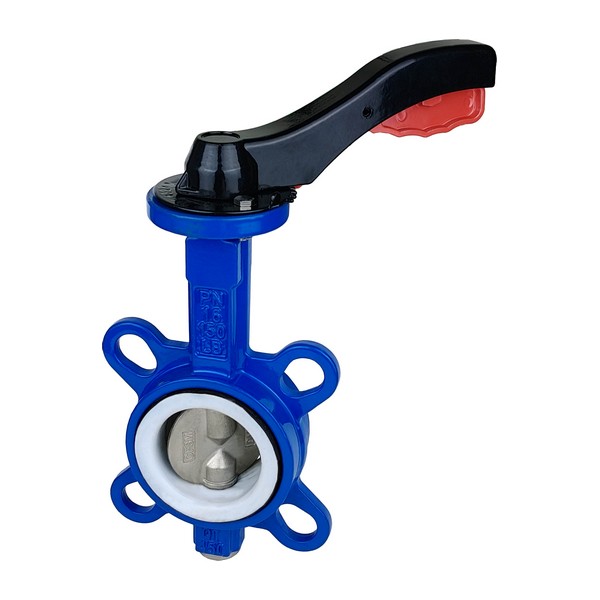

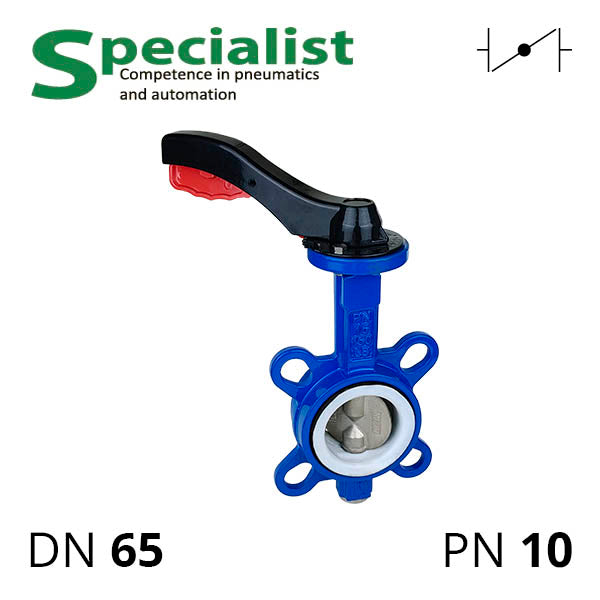

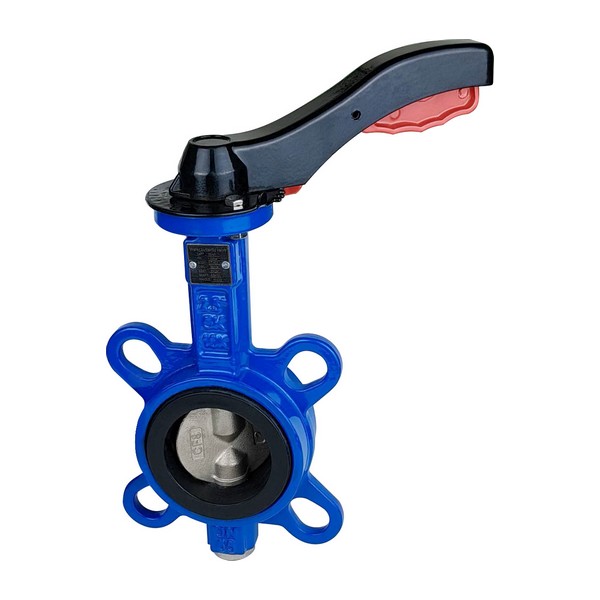

Manual Wafer Type Butterfly Valve PN10 DN65 series SCBF-D674-10XEC/10XES/10XFS-65-H is a butterfly valve with cast stainless steel CF8/CF8M disc (equivalent to AISI 304/316) with wafer mounting and a handle for operation.

The multi-position handle has an anti-turn mechanism — it can be stopped in 10 intermediate positions for throttling and flow control of substances through the pipeline. The SCBF-D674-10XEC/10XES/10XFS-65-H butterfly valve can handle water and liquid mixtures that are chemically compatible with CF8/CF8M and the seat material — EPDM or PTFE.

Table — Main Parameters of the Manual Wafer Type Butterfly Valve SCBF-D674-10XEC/10XES/10XFS-65-H
Nominal Bore Diameter	DN65 (65 mm)
Nominal Pressure	PN10 (1 MPa, 10 bar)
Body Material	WCB (carbon steel)
Disc Material	CF8/CF8M as per ASTM A351 (equivalent to SS304/316)
Seal Material	EPDM or PTFE
EPDM Temperature Tolerance	from −30 to 95° C
PTFE Temperature Tolerance	from −40 to 160° C
Operation Type	Manual
Mounting Thickness	45 mm

This manual stainless steel butterfly valve is installed on a pipe with a bore diameter of 65 millimetres between flanges with collars pre-welded ISO 7005-1(EN 1092-2). The body features ears with holes ("lugs") for centring the butterfly valve between flanges.

The manual operation can be replaced with a pneumatic or electric actuator. We supply this type of valve with PN16 on request.
