Disc rotary valve DU 300 stainless inter-flange collapsible series SCBF-D674

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 300 stainless inter-flange collapsible series SCBF-D674

Name: Disc rotary valve DU 300 stainless inter-flange collapsible series SCBF-D674
Brand: Specialist
SKU: SCBF-D674-10XEC-300
Price: 21014.64 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 21 014,64 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-300

Disc rotary valve DU 300 stainless inter-flange collapsible series SCBF-D674

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-300

21 014,64 UAH

In Stock

SCBF-D674-10XES-300

Disc rotary valve DU 300 stainless inter-flange collapsible series SCBF-D674

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-300

24 894,48 UAH

In Stock

SCBF-D674-10XFS-300

Disc rotary valve DU 300 stainless inter-flange collapsible series SCBF-D674

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-300

29 031,78 UAH

In Stock

Technical specifications

Connection type

inter-flange

Installation length

78 mm

Диск

SS304, SS316

Матеріал диску

stainless steel SS304, stainless steel SS316

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 300

Тип засувки

Disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

drive platform

Description

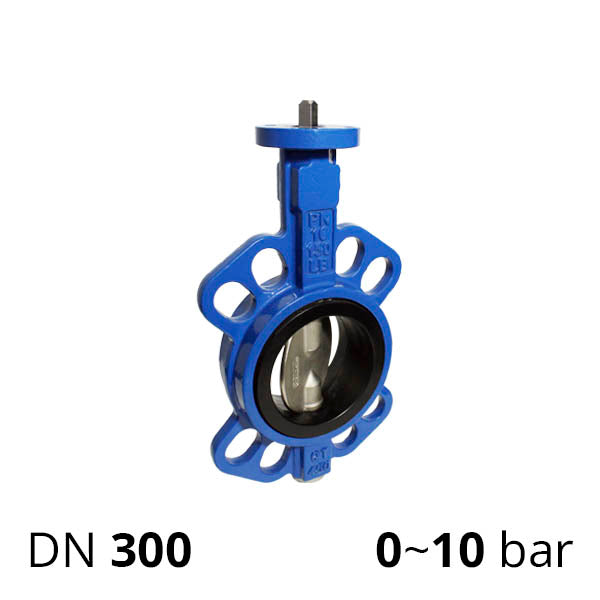

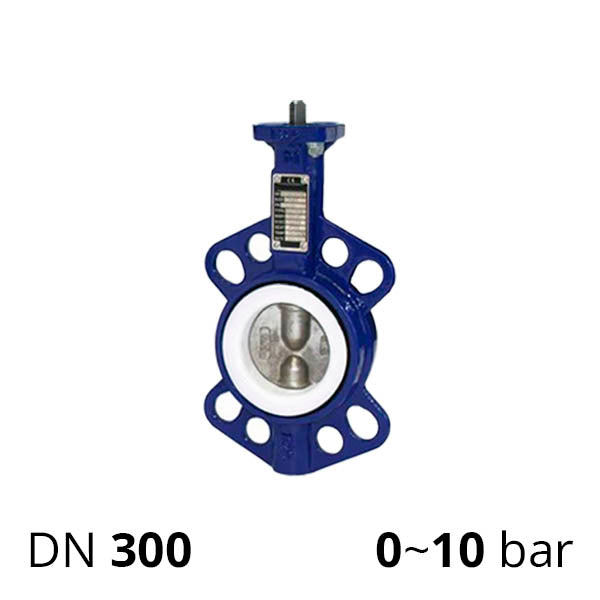

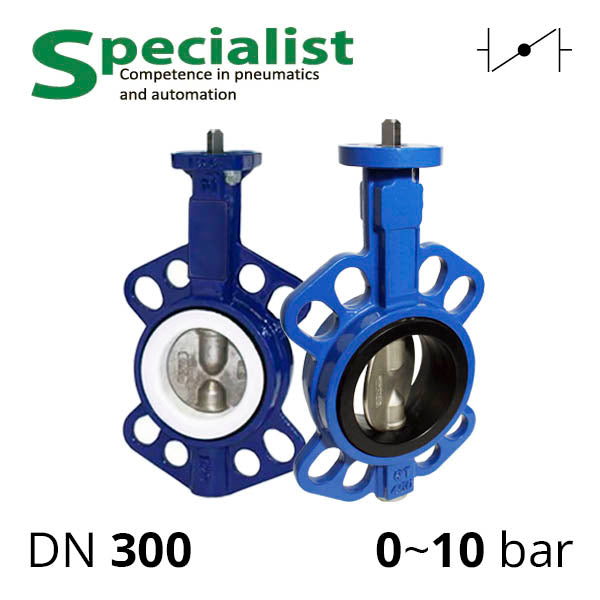

Wafer Lugged Stainless Steel Rotary Disc Valve Series SCBF-D674-10XEC/10XES/10XFS-300 is a dismountable repairable butterfly valve with a WCB cast steel body and CF8/CF8M stainless steel disc (equivalent to AISI 304/316). It has a nominal bore diameter of DN 300 mm. Supplied with a standardized platform size F10 for installing pneumatic, electric drives or handle.

These wafer-lugged butterfly valves DN 300 are shut-off and control fittings — they can be used for 'open/close' operation as well as intermediate positions for regulating the volume of non-aggressive gases, air, water, liquids with low acid and alkali concentration, chemical mixtures compatible with CF8/CF8M and EPDM/PTFE. Acceptable working pressure (by default) — PN up to 10 bar.

Table — Main Parameters of Rotary Disc Valve SCBF-D674-10XEC/10XES/10XFS-300
DN	300 mm
Nominal Pressure	PN 10 bar (1 MPa)
Body Material	WCB (carbon steel)
Disc Material	CF8/CF8M as per ASTM A351 (equivalent to SS304/SS316)
Seal Material	EPDM or PTFE
EPDM Temperature Range	from −30 to 95°C
PTFE Temperature Range	from −40 to 160°C
Drive Platform ISO 5211	F10
Shaft Output	square 22 mm
Recommended Drive Torque	not less than 590 Nm for EPDM, not less than 750 Nm for PTFE
Installation Thickness	78 mm

Specialist Company (Ukraine) directly imports shut-off and control fittings from China and Europe, as well as stocks manual, electric, and pneumatic drives, flanges, and other pipeline accessories — positioners, etc. You can buy a valve of the size and materials you need at a fair price.
