Disc rotary valve DU 125 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-125

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 125 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-125

Name: Disc rotary valve DU 125 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-125
Brand: Specialist
SKU: SCBF-D673-10XEX-125
Price: 2170.14 UAH
Availability: InStock

In Stock

Diameter of conditional passage

125

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 2 170,14 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-125

Disc rotary valve DU 125 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-125

Diameter of conditional passage=125 Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-125

2 170,14 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

56 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 125

Тип засувки

disc rotary shutter

Nominal diameter

125

Inlet pressure

Ru10 (10 bars)

Тип контролю

Drive-in site

Description

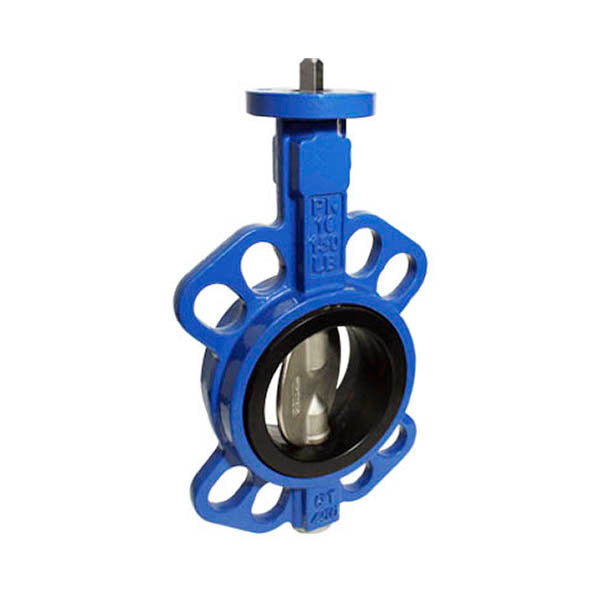

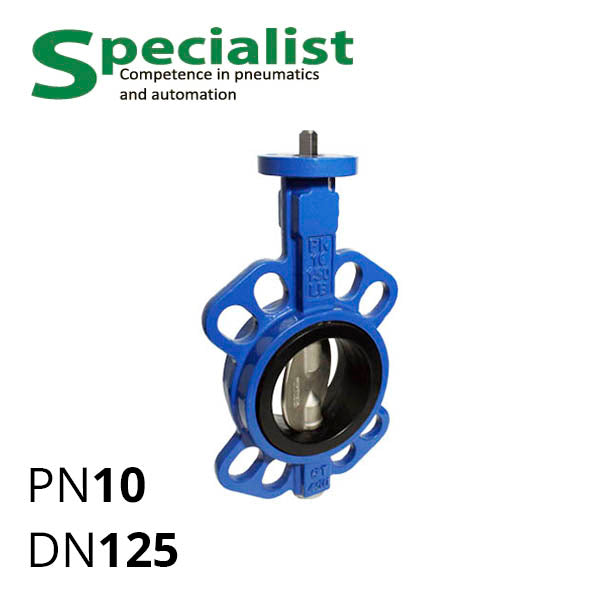

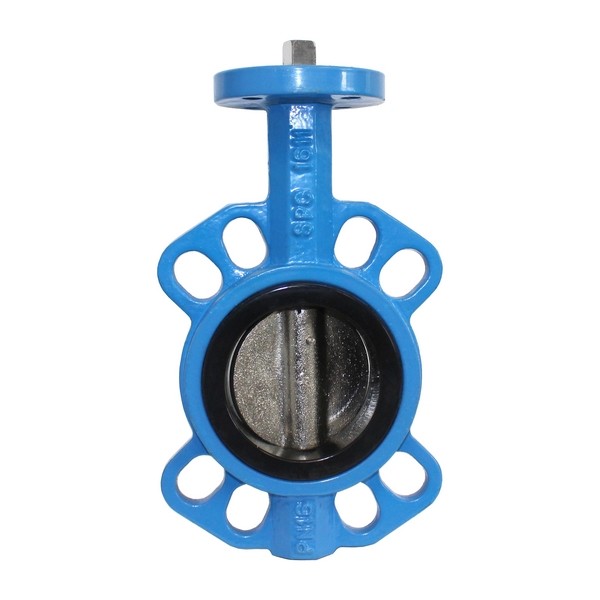

The industrial wafer type butterfly valve cast iron series SCBF-D673-10XEX-125 is a non-dismantling "butterfly" valve with a body and disc made of cast carbon steel WCB, which, unlike grey and ductile iron, can operate under high pressure and has better thermal resistance. Nominal bore diameter for pipes is DN 125 mm. Supplied with a standardized platform for mounting pneumatic, electric actuators or levers size F07.

These cast iron wafer butterfly valves DN 125 are shut-off/control valves — they can be used for "open/close" operations as well as intermediate positions for regulating the volume of non-aggressive gases, air, water, liquids with low concentrations of alkalis, and limited small amounts of acids. The working medium should be checked for compatibility with WCB and EPDM. Allowable working pressure (by default) is PN up to 10 bar.

Table — Main Parameters of the Wafer Butterfly Valve SCBF-D673-10XEX-125
DN	125 mm
Nominal pressure	PN 10 bar (1 MPa)
Body material	WCB to ASTM A216
Disc material	WCB to ASTM A216
Seal material	EPDM
Working temperature	from −30 to 95°C
Actuator platform ISO 5211	F07
Shaft output	square 14 mm
Recommended actuator torque	not less than 99 N·m
Mounting thickness	56 mm

Our company Specialist (Ukraine) also supplies DN125 valves with materials specified by the customer and with installed actuators (levers, pneumatic actuators, and electric actuators with position adjustment).
