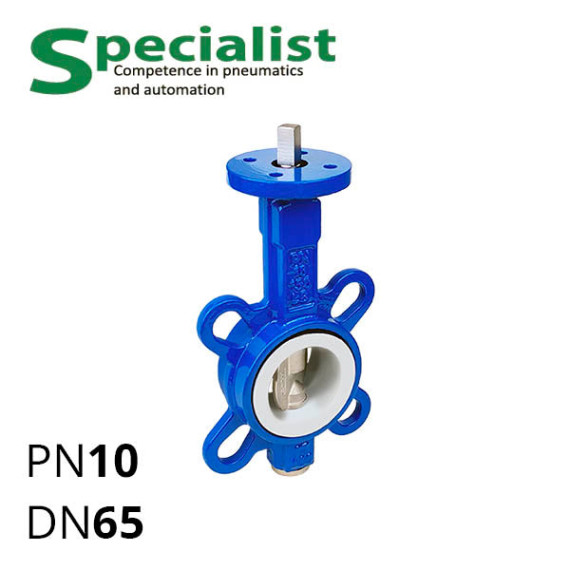

Disc rotary valve DU 65 stainless inter-flange collapsible series SCBF-D674

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 65 stainless inter-flange collapsible series SCBF-D674

Name: Disc rotary valve DU 65 stainless inter-flange collapsible series SCBF-D674
Brand: Specialist
SKU: SCBF-D674-10XEC-65
Price: 1293.72 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 1 293,72 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-65

Disc rotary valve DU 65 stainless inter-flange collapsible series SCBF-D674

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-65

1 293,72 UAH

In Stock

SCBF-D674-10XES-65

Disc rotary valve DU 65 stainless inter-flange collapsible series SCBF-D674

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-65

1 466,04 UAH

In Stock

SCBF-D674-10XFS-65

Disc rotary valve DU 65 stainless inter-flange collapsible series SCBF-D674

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-65

2 172,60 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

46 mm

Диск

SS304, SS316

Матеріал диску

Stainless steel AISI 304 SS, Stainless steel AISI 316 SS

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 65

Inlet pressure

Ru16 (16 bars)

Тип контролю

Drive-in site

Description

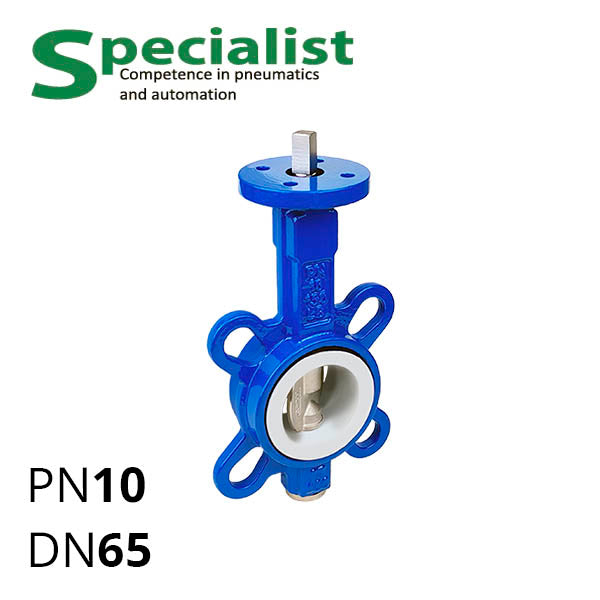

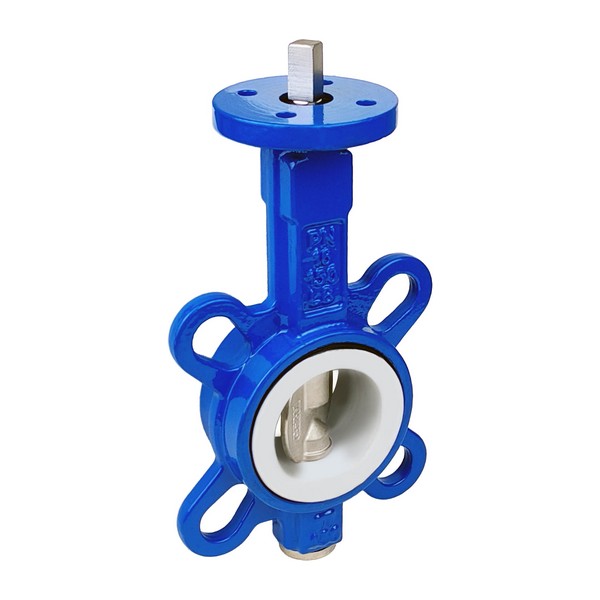

Disc Butterfly Valve Wafer Lugged Stainless Steel Series SCBF-D674-10XES-65 is a serviceable butterfly valve with a body of cast carbon steel WCB and a disk of stainless steel CF8/CF8M (equivalent to AISI 306/316 SS), featuring a nominal bore diameter of DN 65 mm and supplied with a standard platform for pneumatic, electric actuator or handle installation size F05.

These wafer butterfly valves DN 65 are a shut-off and control valve — they can be used for "open/close" operations, as well as intermediate positions to regulate the flow of non-aggressive gases, air, water, liquids with low concentrations of acids and alkalis, and chemical mixtures compatible with CF8/CF8M and EPDM (or PTFE). The permissible working pressure (by default) is PN up to 10 bar.

Table — Main Parameters of the Disc Butterfly Valve SCBF-D674-10XES-65
DN	65 mm
Nominal Pressure	PN 10 bar (1 MPa)
Body Material	WCB (Carbon Steel)
Disk Material	CF8M per ASTM A351 (equivalent to SS316)
Seal Material	EPDM or PTFE
EPDM Temperature Range	from −30 to 95° C
PTFE Temperature Range	from −40 to 160° C
Drive Platform ISO 15552	F05
Shaft Output	Square 9 mm
Recommended Drive Torque	not less than 29 Nm for EPDM, not less than 35 Nm for PTFE
Installation Thickness	46 mm

Specialist Company (Ukraine) directly imports shut-off and control valves from China and Europe, and also stocks manual, electric, and pneumatic drives, flanges, and other pipeline equipment components such as positioners, etc. Here, you can purchase a valve in the required sizes and materials at a fair price.
