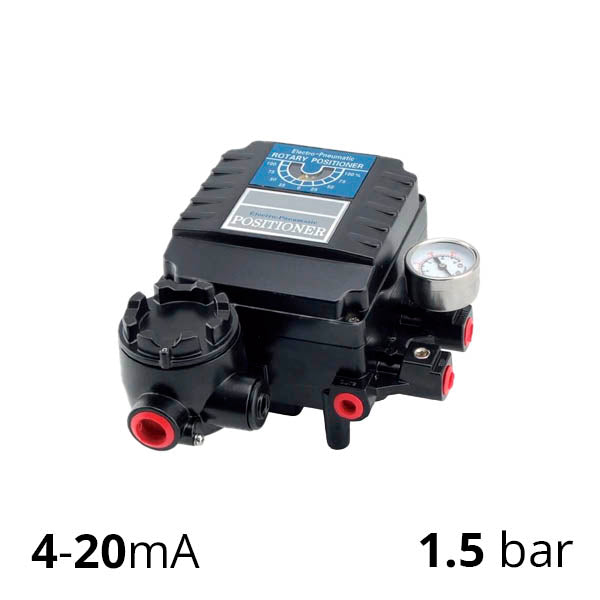

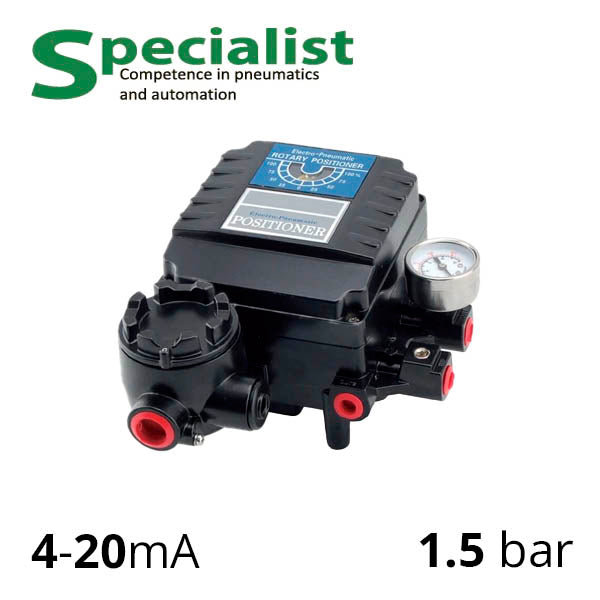

SCBF-REP-1000RD series positioner for rotary pneumatic actuator
In Stock
Action
Model
SCBF-REP-1000RD-F
Manufacturer
Specialist
from 18 918,90 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Models
Found 2 variants
Name
Model
Price
Availability
Qty
Action
SCBF-REP-1000RD-N
SCBF-REP-1000RD series positioner for rotary pneumatic actuator
Action=Bilateral
SCBF-REP-1000RD-N
18 918,90 UAH
In Stock
SCBF-REP-1000RD-F
SCBF-REP-1000RD series positioner for rotary pneumatic actuator
Action=One-sided
SCBF-REP-1000RD-F
24 298,98 UAH
In Stock
Request a variant
Fill in the form and we will get back to you regarding this variant.
Technical specifications
Description
The SCBF-REP-1000RD series electro-pneumatic rotary positioner is designed for precise control of the position of rotating type shut-off and control valves. It receives a 4-20 mA current electrical signal and accordingly controls the stroke of the single or double acting rotary pneumatic actuator to set the disc rotary valve in the desired position.
| Set Value Signal | 4-20 mA DC |
|---|---|
| Input Resistance | 250±15 Ohms |
| Air Connection | G 1/4" |
| Gauge Connection | G 1/8" |
| Operating Stroke Range | 0-90° |
| Hysteresis | ±1.0% of full scale |
| Sensitivity | ±0.2% of full scale |
| Reproducibility | ±0.5% of full scale |
| Flow Capacity | 80 L/min (1.5 bar) |
| Ambient Temperature | -20 to +70°C |
| Material | Die-cast Aluminium |
| Protection Degree | IP65 |
| Weight | 2.7 kg |
