Disc rotary valve DU 50 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-50

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 50 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-50

Name: Disc rotary valve DU 50 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-50
Brand: Specialist
SKU: SCBF-D673-10XEX-50
Price: 862.92 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Диск

WCB

Ущільнення

EDPM

Model

Manufacturer

Specialist

from 862,92 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-50

Disc rotary valve DU 50 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-50

Diameter of conditional passage=50 Диск=WCB Ущільнення=EDPM

SCBF-D673-10XEX-50

862,92 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

41 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM

Ущільнення

EDPM

Body material

Cast iron WCB

Nominal diameter

TWO 50

Тип засувки

disc rotary shutter

Nominal diameter

Inlet pressure

Ru10 (10 bars)

Тип контролю

Drive-in site

Description

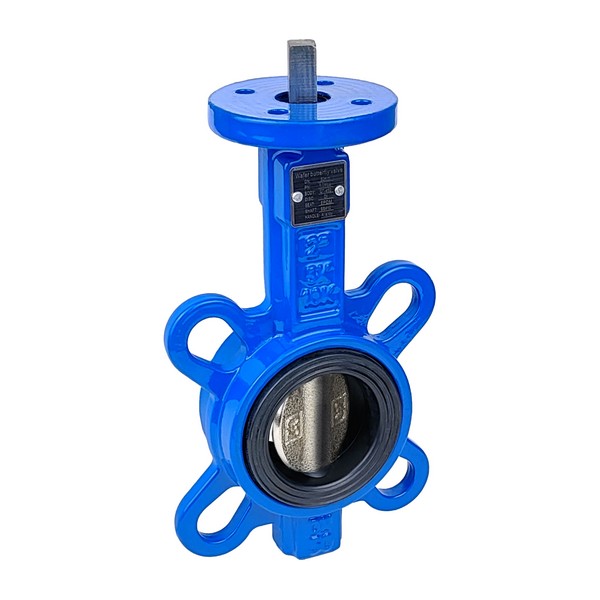

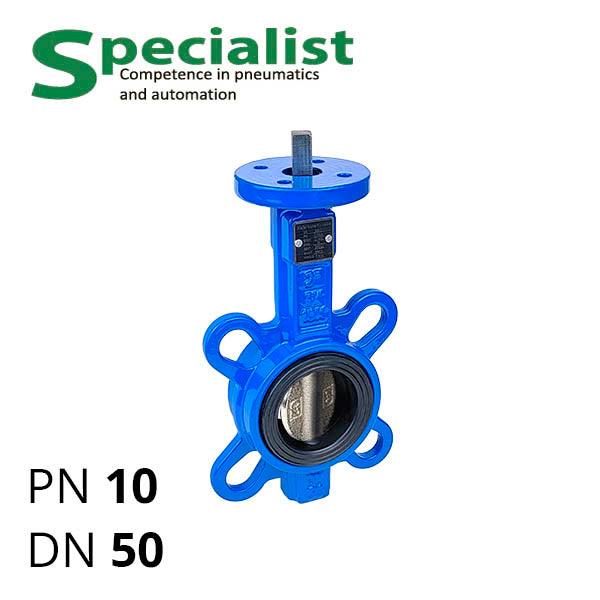

Industrial wafer butterfly valve cast iron series SCBF-D673-10XEX-50 is a non-dismantlable butterfly valve with a body and disc made of cast carbon steel WCB, which, unlike grey and ductile iron, can operate under high pressure and has better thermal resistance. Nominal diameter for pipes DN 50 mm. Supplied with a standardised platform for installation of pneumatic, electric drive or handle of size F05.

These cast iron wafer butterfly valves DN 50 are shut-off and control pipeline fittings — they can be used for both "open/close" operation and intermediate positions for regulation in non-aggressive gases, air, water, and fluids with low alkali concentration and limited small acid amounts. The working environment should be checked for compatibility with WCB and EPDM. Allowable working pressure (by default) — PN up to 10 bar.

Table — Main parameters of wafer butterfly valve SSCBF-D673-10XEX-50
DN	50 mm
Nominal Pressure	PN 10 bar (1 MPa)
Body Material	WCB to ASTM A216
Disc Material	WCB to ASTM A216
Seal Material	EPDM
Working Temperature of EPDM	from −30 to 95°C
Drive Platform ISO 5211	F05
Shaft Output	square 9 mm
Recommended Drive Torque	no less than 21 N⋅m (for EPDM) no less than 26 N⋅m (for PTFE)
Mounting Thickness	41 mm

Our company Specialist (Ukraine) also supplies DN50 valves with materials as per client's request and installed drives (handles, pneumatic drives, and electric drives with position control).
