Disc rotary latch DU 125 cast iron inter-flange non-dismountable with handle SCBF-D673 series

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary latch DU 125 cast iron inter-flange non-dismountable with handle SCBF-D673 series

Name: Disc rotary latch DU 125 cast iron inter-flange non-dismountable with handle SCBF-D673 series
Brand: Specialist
SKU: SCBF-D673-10XEX-125-H
Price: 2805.30 UAH
Availability: InStock

In Stock

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 2 805,30 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-125-H

Disc rotary latch DU 125 cast iron inter-flange non-dismountable with handle SCBF-D673 series

Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-125-H

2 805,30 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

56 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 125

Тип засувки

disc rotary shutter

Inlet pressure

Rooster (10 bars)

Тип контролю

Handled

Description

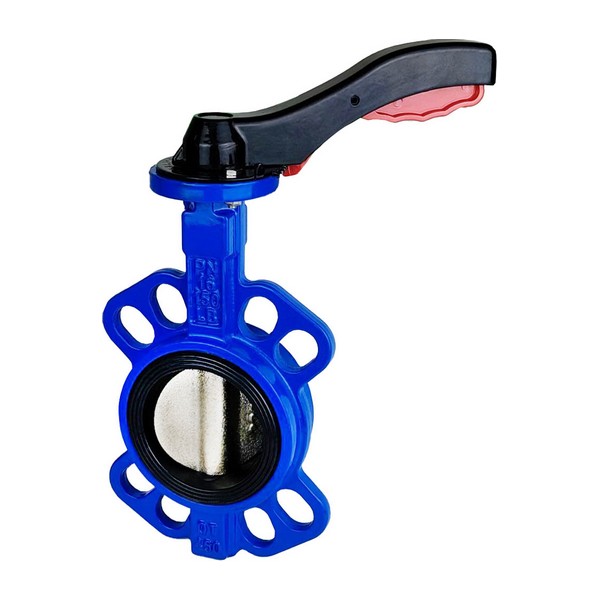

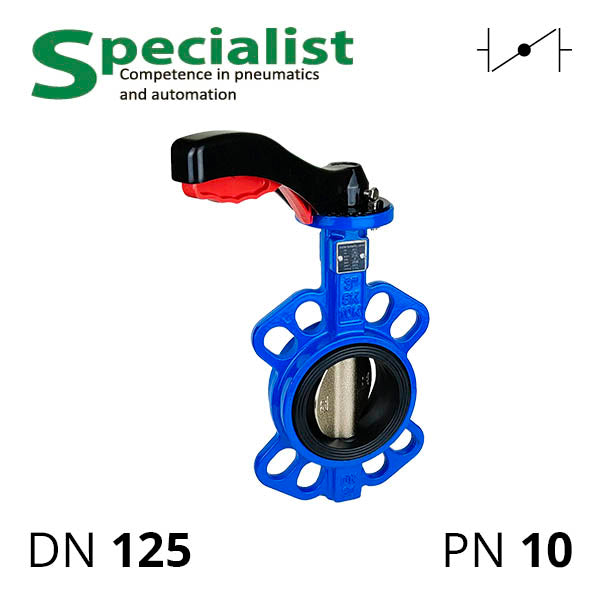

The cast iron manual valve model SCBF-D673-10XEX-125-H is an adjustable wafer butterfly valve type PN 10 DN 125 with a cast steel body and WCB disc, EPDM seals. Unlike grey and ductile iron, WCB butterfly valves can work under pressure and with hot water, non-aggressive gas, liquids, weak alkalis, and most organic acids. The working environment is checked for compatibility with WCB and EPDM.

The handle includes an anti-rotation mechanism and has a stop in 10 intermediate positions of the valve DN125 SCBF-D673-10XEX-125-H for throttling and regulating the substance flow through the pipeline.

Table — Main characteristics of the cast iron butterfly valve SCBF-D673-10XEX-125-H
Nominal passage diameter	DN125 (125 mm)
Nominal pressure	PN10 (1 MPa, 10 bar)
Body material	Cast Iron WCB (cast carbon steel)
Disc material	Cast Iron WCB
Seal material	EPDM
Withstand temperature	from −30 to 95° C
Control type	Manual control
Installation thickness	56 mm

This manual cast iron butterfly valve is mounted on a pipe with a nominal passage diameter of 125 millimetres between pre-welded collar flanges ISO 7005-1(EN 1092-2). The body features ribs with holes ("lugs") for centring the butterfly valve between the flanges.

The manual drive can be replaced with pneumatic or electric. On request, we supply this type of valve with PN16.
