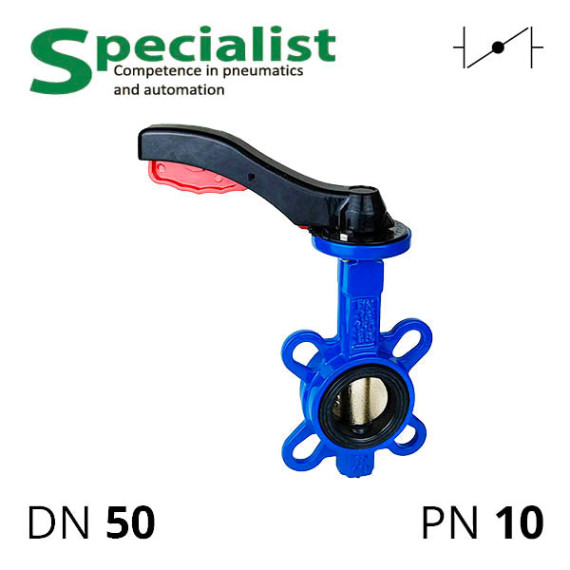

Disc rotary latch DU 50 cast iron inter-flange non-dismountable with handle SCBF-D673 series

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary latch DU 50 cast iron inter-flange non-dismountable with handle SCBF-D673 series

Name: Disc rotary latch DU 50 cast iron inter-flange non-dismountable with handle SCBF-D673 series
Brand: Specialist
SKU: SCBF-D673-10XEX-50-H
Price: 1195.26 UAH
Availability: InStock

In Stock

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 1 195,26 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-50-H

Disc rotary latch DU 50 cast iron inter-flange non-dismountable with handle SCBF-D673 series

Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-50-H

1 195,26 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

41 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 50

Тип засувки

disc rotary shutter

Inlet pressure

Rooster (10 bars)

Тип контролю

Handled

Description

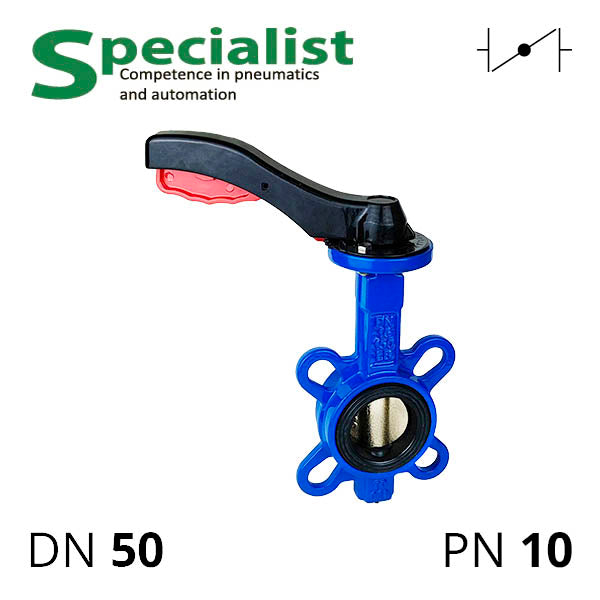

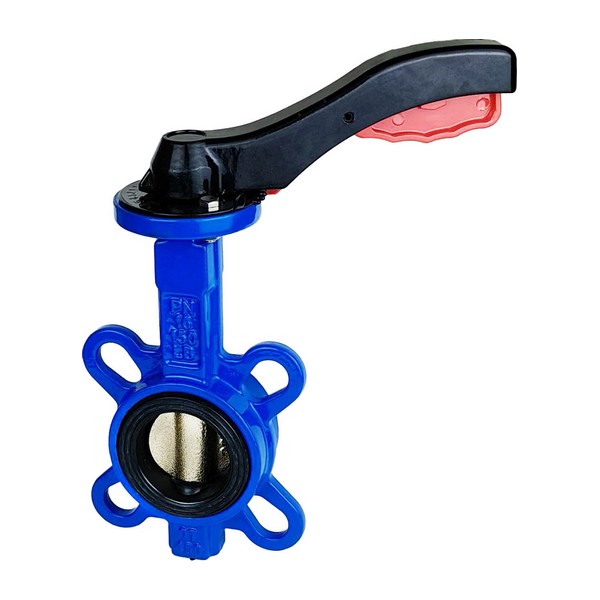

The cast iron manual valve model SCBF-D673-10XEX-50-H is an adjustable wafer type butterfly valve PN10 DN 50 with a cast steel body and WCB disc, EPDM seals. Unlike grey and ductile iron, WCB butterfly valves can operate under pressure and with hot water, non-corrosive gas, liquids, weak alkalis, and most organic acids. Operating medium compatibility with WCB and EPDM should be checked.

The handle includes an anti-twist mechanism and stops in 10 intermediate positions for throttling and flow rate regulation of the DN50 SCBF-D673-10XEX-50-H substance through the pipeline.

Table — Main Specifications of the Cast Iron Wafer Type Butterfly Valve SCBF-D673-10XEX-50-H
Nominal Bore	DN50 (50 mm)
Nominal Pressure	PN10 (1 MPa, 10 bar)
Body Material	Cast Iron WCB (cast carbon steel)
Disc Material	Cast Iron WCB
Seal Material	EPDM
Temperature Resistance	from −30 to 95° C
Control Type	Manual
Installation Thickness	41 mm

This manual cast iron butterfly valve is installed on a pipe with a bore diameter of 50 millimetres between pre-welded collar flanges ISO 7005-1(EN 1092-2). Lugs with holes ("ears") are located on the body for centring the butterfly valve between flanges.

The manual drive can be replaced with a pneumatic or electric one. This type of valve can be supplied with PN16 upon request.
