Disc rotary valve DU 250 stainless inter-flange collapsible with SCBF-D674 series reducer

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 250 stainless inter-flange collapsible with SCBF-D674 series reducer

Name: Disc rotary valve DU 250 stainless inter-flange collapsible with SCBF-D674 series reducer
Brand: Specialist
SKU: SCBF-D674-10XEC-250-G
Price: 15412.62 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 15 412,62 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-250-G

Disc rotary valve DU 250 stainless inter-flange collapsible with SCBF-D674 series reducer

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-250-G

15 412,62 UAH

In Stock

SCBF-D674-10XES-250-G

Disc rotary valve DU 250 stainless inter-flange collapsible with SCBF-D674 series reducer

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-250-G

17 585,22 UAH

In Stock

SCBF-D674-10XFS-250-G

Disc rotary valve DU 250 stainless inter-flange collapsible with SCBF-D674 series reducer

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-250-G

19 860,00 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

67 mm

Диск

SS304, SS316

Матеріал диску

SS304 stainless steel, SS316 stainless steel

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 250

Тип засувки

Disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With a gearbox

Description

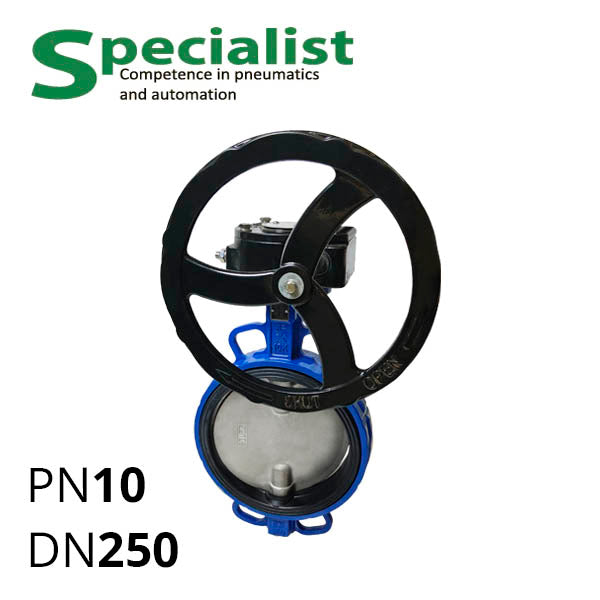

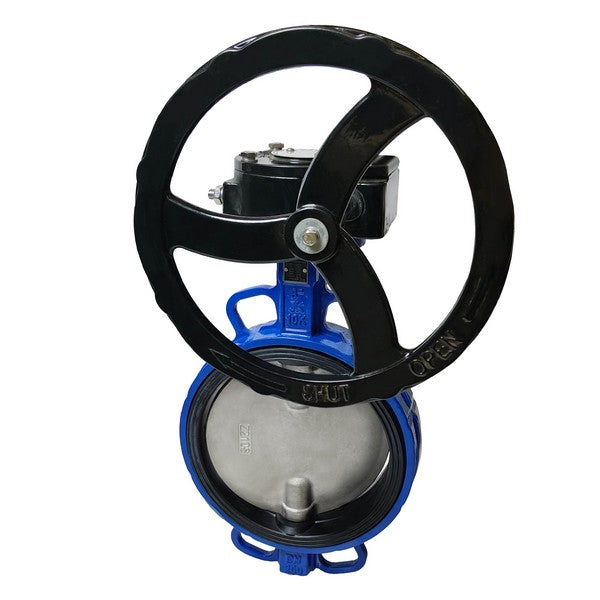

Manual wafer type butterfly valve PN 10 DN 250 series SCBF-D674-10XEC/10XES/10XFS-250-H is a butterfly valve with a cast stainless steel disc CF8/CF8M (equivalent to AISI 304/316) with a wafer mounting and a manual actuator (handwheel through a mechanical worm gearbox).

The gearbox has markers every 10°, allowing it to be stopped in intermediate positions for throttling and controlling the flow of substances through the pipeline. The butterfly valve SCBF-D674-10XEC/10XES/10XFS-250-H can be operated with water and liquid mixtures whose chemical composition is compatible with CF8/CF8M and the seat material — EPDM or PTFE.

Table — Main Parameters of the Manual Wafer Type Butterfly Valve SCBF-D674-10XEC/10XES/10XFS-250-H
Nominal Bore Diameter	DN250 (250 mm)
Nominal Pressure	PN10 (1 MPa, 10 bar)
Body Material	WCB (carbon steel)
Disc Material	CF8/CF8M per ASTM A351 (equivalent to SS304/316)
Seal Material	EPDM or PTFE
EPDM Temperature Range	from −30 to 95° C
PTFE Temperature Range	from −40 to 160° C
Control Type	Manual operation
Installation Thickness	67 mm

This manual stainless steel butterfly valve is installed on a pipe with a nominal bore diameter of 250 millimetres between previously welded collar flanges ISO 7005-1(EN 1092-2). The body includes lugs with holes ("eyes") for centring the butterfly valve between the flanges.

The manual actuator can be replaced with a pneumatic or electric one. On request, we supply this type of valve with PN16.
