Disc rotary valve DU 100 stainless inter-flange collapsible with handle SCBF-D674 series

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 100 stainless inter-flange collapsible with handle SCBF-D674 series

Name: Disc rotary valve DU 100 stainless inter-flange collapsible with handle SCBF-D674 series
Brand: Specialist
SKU: SCBF-D674-10XEC-100-H
Price: 2930.88 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 2 930,88 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-100-H

Disc rotary valve DU 100 stainless inter-flange collapsible with handle SCBF-D674 series

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-100-H

2 930,88 UAH

In Stock

SCBF-D674-10XES-100-H

Disc rotary valve DU 100 stainless inter-flange collapsible with handle SCBF-D674 series

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-100-H

3 189,36 UAH

In Stock

SCBF-D674-10XFS-100-H

Disc rotary valve DU 100 stainless inter-flange collapsible with handle SCBF-D674 series

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-100-H

4 554,48 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

52 mm

Диск

SS304, SS316

Матеріал диску

SS304 stainless steel, SS316 stainless steel

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 100

Тип засувки

Disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

Handled

Description

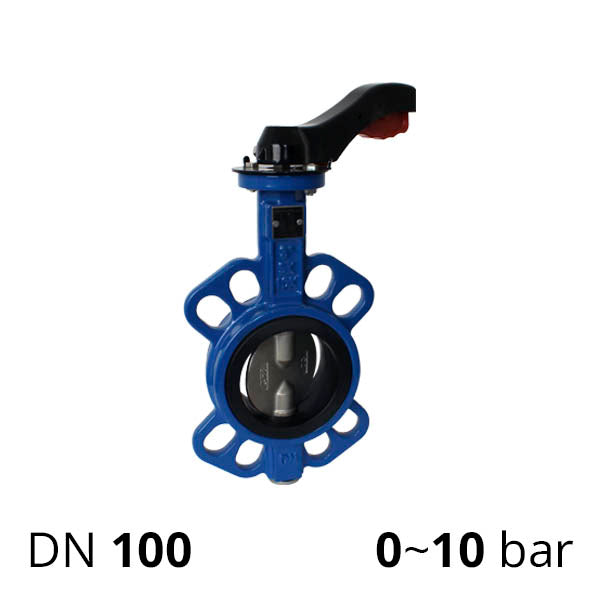

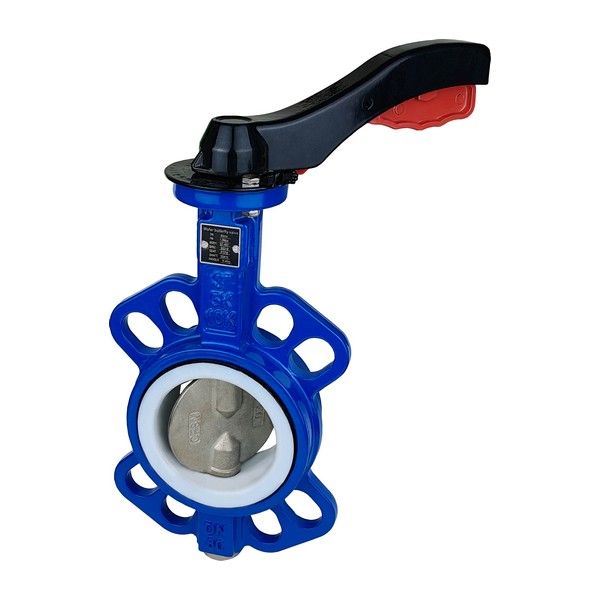

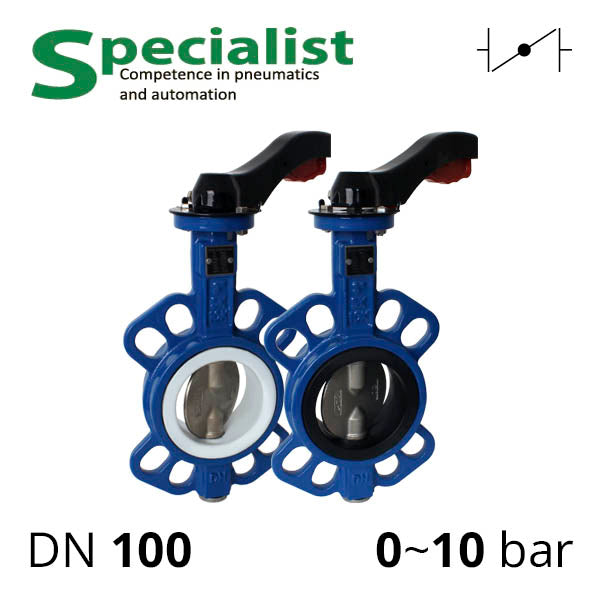

Manual Wafer Type Butterfly Valve PN10 DN100 series SCBF-D674-10XEC/10XES/10XFS-100-H is a butterfly valve with a cast stainless steel disk CF8/CF8M (equivalent to AISI 304/316) with wafer-type mounting and a handle for operation.

The multi-position handle has an anti-rotation mechanism — it can be stopped in 10 intermediate positions for throttling and flow regulation of the fluid through the pipeline. The butterfly valve SCBF-D674-10XEC/10XES/10XFS-100-H can be controlled by water and chemical mixtures compatible with CF8/CF8M and the seat material — EPDM or PTFE.

Table — Main Specifications of Manual Wafer Type Butterfly Valve SCBF-D674-10XEC/10XES/10XFS-100-H
Nominal Diameter	DN100 (100 mm)
Nominal Pressure	PN10 (1 MPa, 10 bar)
Body Material	WCB (carbon steel)
Disc Material	CF8/CF8M to ASTM A351 (equivalent SS304/316)
Sealing Material	EPDM or PTFE
EPDM Temperature Range	from −30 to 95° C
PTFE Temperature Range	from −40 to 160° C
Operation Type	Manual
Mounting Thickness	52 mm

This manual stainless steel butterfly valve is mounted on a pipe with a nominal diameter of 100 millimetres between pre-welded collar flanges ISO 7005-1(EN 1092-2). The body has lugs with holes ("ears") for centring the butterfly valve between the flanges.

The manual actuator can be replaced with a pneumatic or electric one. On request, we supply this type of valves with PN16.
