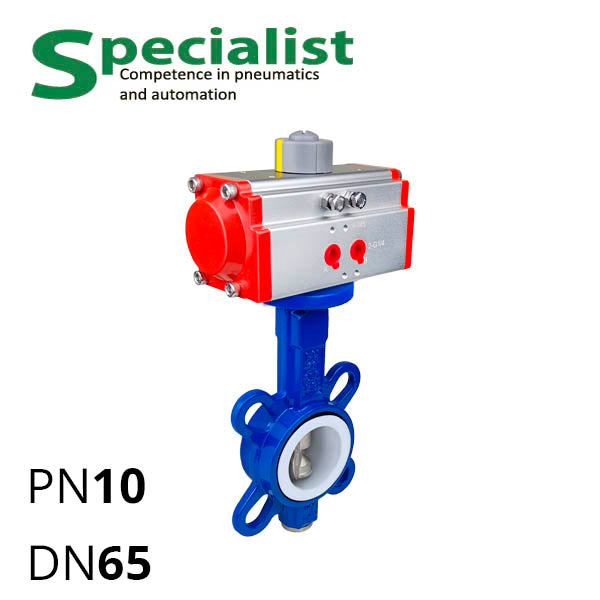

Disc rotary valve DU 65 stainless inter-flange with pneumatic drive SCBF-D674

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 65 stainless inter-flange with pneumatic drive SCBF-D674

Name: Disc rotary valve DU 65 stainless inter-flange with pneumatic drive SCBF-D674
Brand: Specialist
SKU: SCBF-D674-10XEC-65-RAT063
Price: 5036.94 UAH
Availability: InStock

In Stock

Диск

AISI 304 SS AISI 316 SS

Ущільнення

EPDM PTFE

Пневмопривід

44 Нм 70 Нм

Model

Manufacturer

Specialist

from 5 036,94 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-65-RAT063

Disc rotary valve DU 65 stainless inter-flange with pneumatic drive SCBF-D674

Диск=AISI 304 SS Ущільнення=EPDM Пневмопривід=44 Нм

SCBF-D674-10XEC-65-RAT063

5 036,94 UAH

In Stock

SCBF-D674-10XES-65-RAT063

Disc rotary valve DU 65 stainless inter-flange with pneumatic drive SCBF-D674

Диск=AISI 316 SS Ущільнення=EPDM Пневмопривід=44 Нм

SCBF-D674-10XES-65-RAT063

5 209,32 UAH

In Stock

SCBF-D674-10XFS-65-RAT075

Disc rotary valve DU 65 stainless inter-flange with pneumatic drive SCBF-D674

Диск=AISI 316 SS Ущільнення=PTFE Пневмопривід=70 Нм

SCBF-D674-10XFS-65-RAT075

6 699,66 UAH

In Stock

Technical specifications

Connection type

inter-flange

Installation length

45 mm

Диск

AISI 304 SS, AISI 316 SS

Матеріал диску

Stainless steel AISI 304 SS, Stainless steel AISI 316 SS

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 65

Тип засувки

disc rotary shutter

Inlet pressure

There are 10

Пневмопривід

44 Нм, 70 Нм

Тип контролю

with pneumatic drive

Description

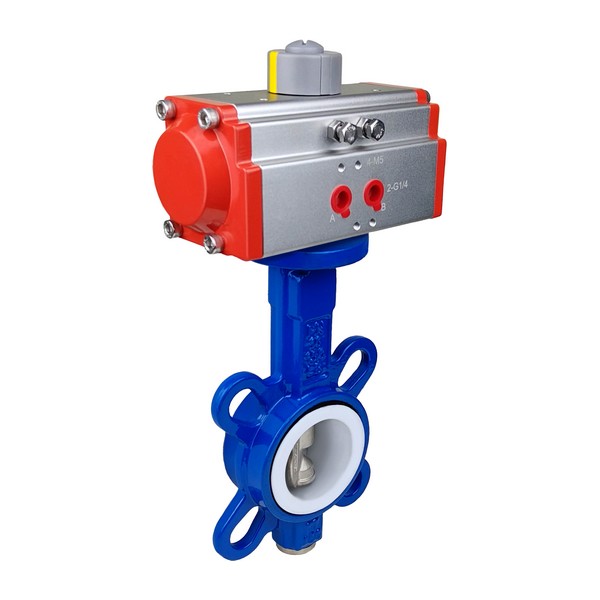

Butterfly valve with pneumatic actuator PN10 DN65 series SCBF-D674-10XEC/10XES/10XFS-65-RAT063/075 is a "butterfly" type valve with cast stainless disc CF8 or CF8M — grades of stainless steel equivalent to food grades AISI 304/316 SS. The wafer valve is designed for mounting between flanges on a d 100mm pipe and is equipped with a double-acting pneumatic actuator SC-RAT063 or SC-RAT075.

The butterfly valve with pneumatic control DN65 series SCBF-D674-10XEC/10XES/10XFS-65-RAT063/075 is intended for water, liquid or gas that does not react with CF8/CF8M and the chosen seat material — EPDM or PTFE, according to the compatibility table.

Main parameters of stainless steel wafer butterfly valve SCBF-D674-10XEC/10XES/10XFS-65
DN	65 mm
Nominal Pressure	PN10 bar (1 MPa)
Body Material	WCB (carbon steel)
Disc Material	CF8 or CF8M per ASTM A351 (equivalents SS304/SS316)
Seal Material	EPDM or PTFE
EPDM Temperature Range	from −30 to 95° C
PTFE Temperature Range	from −40 to 160° C
Installation Thickness	45 mm
Actuator Model	SC-RAT063 or SC-RAT075
SC-RAT063/SC-RAT075 Operation Type	Double acting
Air Connection	1/4″
Recommended Air Control Pressure	from 6 to 8 bar
SC-RAT063 Torque at 6 bar	43.92 Nm
SC-RAT075 Torque at 6 bar	70.5 Nm

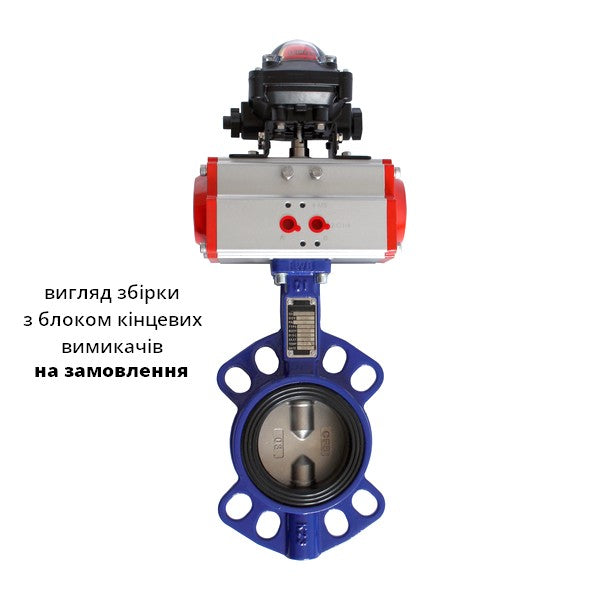

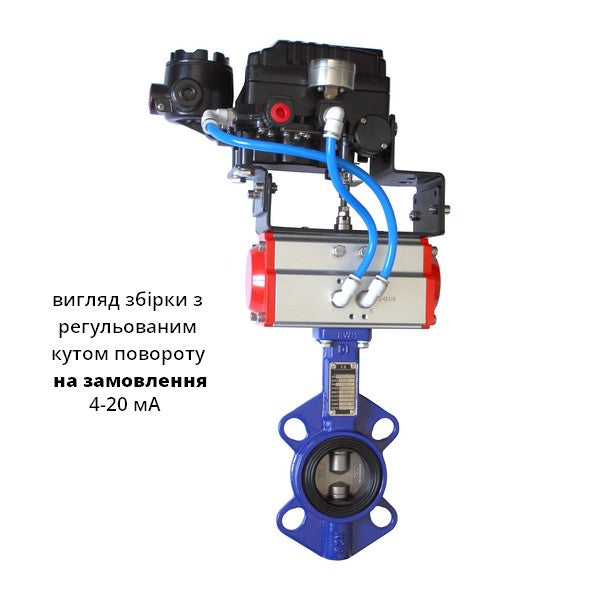

Besides the water/gas butterfly valve from Specialist, you can purchase distributors of Namur 5/2 standard for pneumatic actuator control, silencers, fittings, limit switch boxes, positioners.
