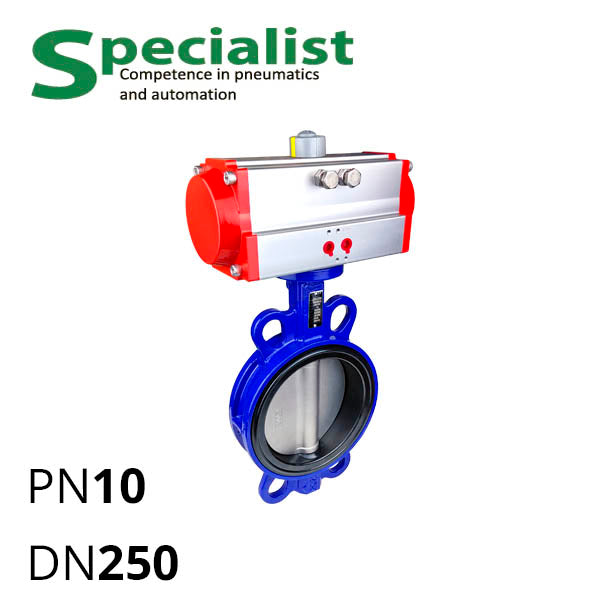

Disc rotary valve DU 250 cast iron intermediate flange with pneumatic drive SCBF-D673

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 250 cast iron intermediate flange with pneumatic drive SCBF-D673

Name: Disc rotary valve DU 250 cast iron intermediate flange with pneumatic drive SCBF-D673
Brand: Specialist
SKU: SCBF-D673-10XEX-250-RAT105
Price: 14336.52 UAH
Availability: InStock

In Stock

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 14 336,52 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-250-RAT105

Disc rotary valve DU 250 cast iron intermediate flange with pneumatic drive SCBF-D673

Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-250-RAT105

14 336,52 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

67 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 250

Тип засувки

Disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With pneumatic drive

Description

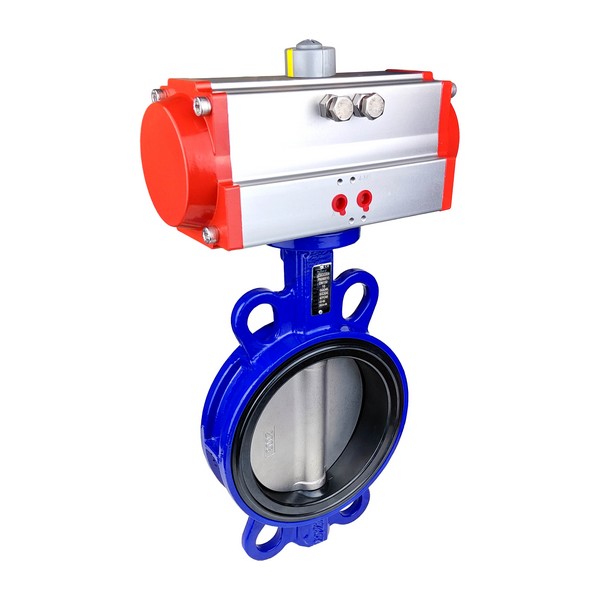

Iron butterfly valve SCBF-D673-10XEX-250-RAT105 is an industrial wafer type butterfly valve PN10 DN250 with pneumatic actuator for multi-position control of water, other non-aggressive gaseous and liquid substances under pressure, compatible with WCB and EPDM. Our company “Specialist” can produce the disc and seat from other materials to make the butterfly valve compatible with your working environment; rubber coated disc; PN16 on demand.

Table — Specifications of pneumatic cast iron rotary valve SCBF-D673-10XEX-250-RAT105
DN	250 mm
Nominal Pressure	PN10 (PN16 on demand)
Body Material	WCB (carbon steel)
Disc Material	WCB
Seal Material	EPDM
EPDM Temperature Range	from −30 to 95° C
Installation Depth	56 mm
Actuator Model actuator	SC-RAT105
Operation Mode SC-RAT105	Double-acting pneumatic actuator
Air Connection	1/4″
Recommended Air Control Pressure	from 6 to 8 bar
Torque SC-RAT105 at 6 bar	203.64 Nm

In addition to the rotary water/gas valve by Specialist, you can purchase pneumatic distributors with Namur 5/2 standard for actuator control, silencers, fittings, limit switch boxes, positioners.
