Ball valve 1¼″ stainless PN16 DN32 with internal thread SCBV-Q611F-16FC-32

Name: Ball valve 1¼″ stainless PN16 DN32 with internal thread SCBV-Q611F-16FC-32
Brand: Specialist
SKU: SCBV-Q611F-16FC-32
Price: 2071.08 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Thread size

G 1¼

Model

Manufacturer

Specialist

from 2 071,08 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBV-Q611F-16FC-32

Ball valve 1¼″ stainless PN16 DN32 with internal thread SCBV-Q611F-16FC-32

Diameter of conditional passage=32 Thread size=G 1¼

SCBV-Q611F-16FC-32

2 071,08 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 1¼"

Матеріал диску

SS304 stainless steel

Матеріал ущільнення

PTFE

Body material

SS304 stainless steel

Nominal diameter

TWO 32

Тип засувки

Ball valve

Nominal diameter

Inlet pressure

Ru16 (16 bars)

Тип контролю

Drive-in site

Description

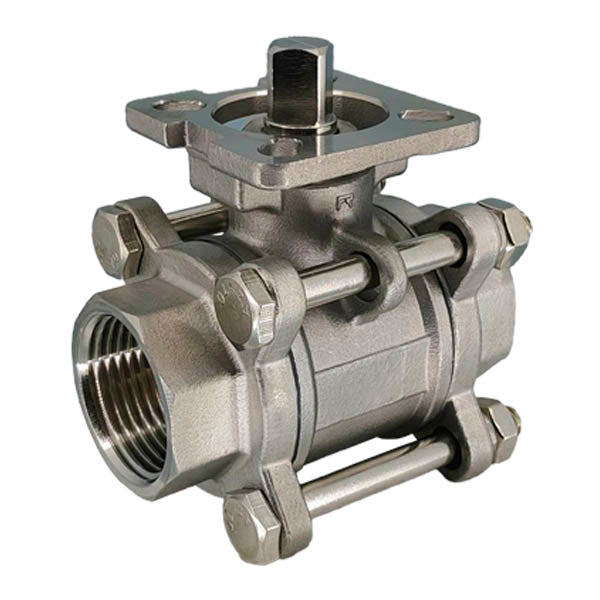

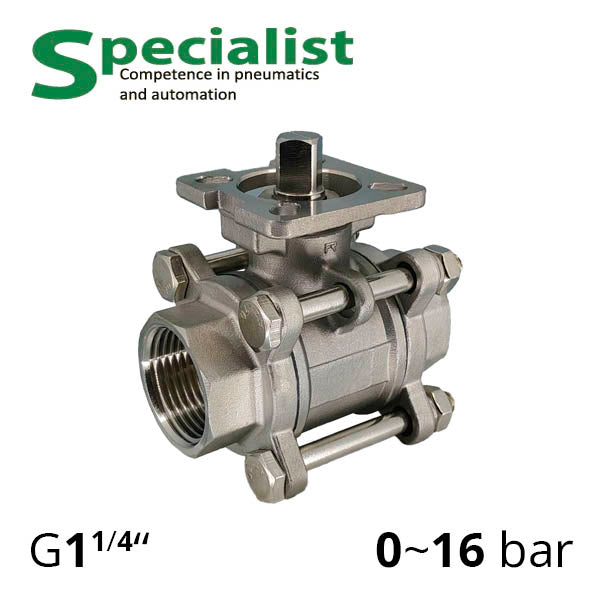

Ball Valve DN 32 Coupling, thread internal 1¼″ SCBV-Q611F-16FC-32 is supplied with full-bore diameter (the size of the sealing element's ball matches the pipeline, providing better throughput for high-pressure environments). The body is three-piece (three components): directly the casing and two removable sleeve connectors with internal thread of one and a quarter inch 1 1/4″. Flange inserts or welding ends are available on request. Drive or handle can be mounted on the platform. The design also features an antistatic device and protection against leakage through the stem.

By default, the ball valve is manufactured of stainless steel 304 and PTFE for seat sealing. Other grades of stainless steel and reinforcement are available for increased pressure. Standard SCBV-Q611F-16FC-32 ball valve has PN16.

Ball valves with DN32 are used in plumbing, heating, water supply, and industry. They have corrosion resistance for use with cold and hot water, steam, suitable for many drinking beverages and food mixes, petroleum products, and chemicals (compatibility of the liquid or gas composition with PTFE-Teflon and AISI304 must be checked).

SCBV-Q611F-16FC-32 Ball Valve. Specifications and Parameter Values
Type	Two-way Ball Valve
Connection size	G 1¼″
DN	32 mm
Bore diameter	Full-bore
Sealing class	A
Nominal working pressure	PN16 (16 bar, 1.6 MPa)
Working temperature	from -40 to 180°C (without liquid freezing)
Drive platform (ISO 5211)	F-05/F-07
Drive	On request
Body and ball material	Stainless Steel 304
Seat seal material	PTFE
Working medium	Water, oil, gas
Country of manufacture	China

Markings on the SCBV-Q611F-16FC-32 Ball Valve Body:

1000 WOG
1¼"
304

We sell ball valves from warehouses in Lviv and Dnipro, with delivery across Ukraine by "Nova Poshta". The company "Specialist" is a direct importer of shut-off valves: we guarantee product compliance with its quality certificate, offer discounts for bulk buyers and the purchase of 1¼″ ball valve as a set with a pneumatic actuator SC-RAT63, SC-RST63, with an electric actuator HL or handle.
