Block of limit switches for pneumatic drive series SC-ALP-210N
In Stock
Product Code:
SC-ALP-210N
Brand:
Specialist
1 787,94 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description

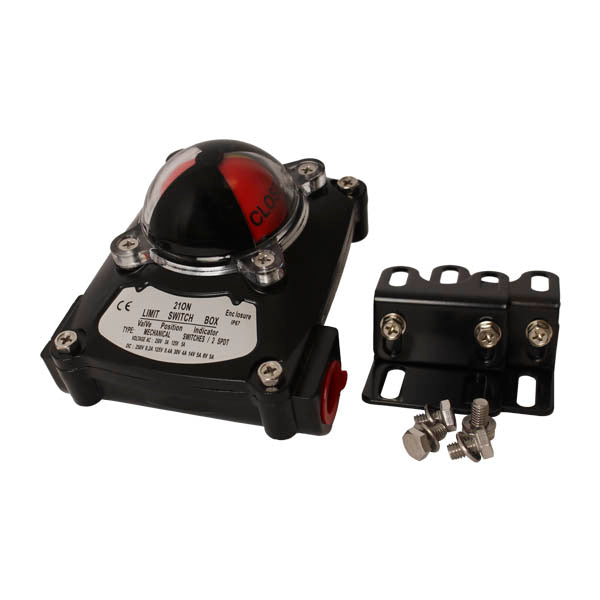

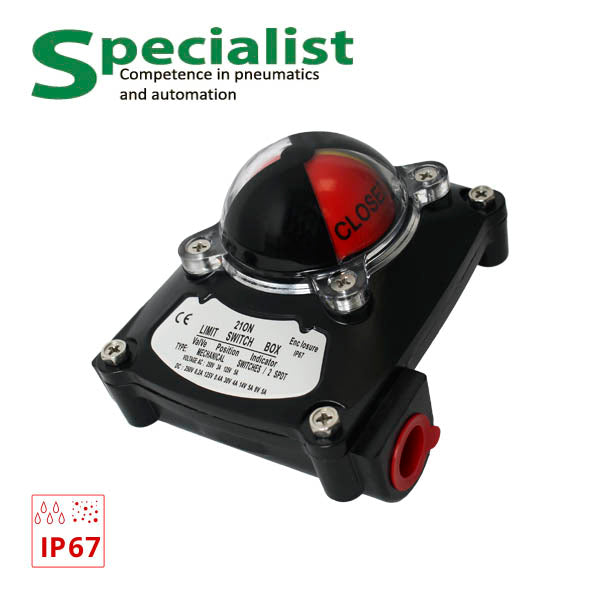

The SC-ALP-210N series limit switch box is installed on pneumatic actuators with a 90° turn for visual indication of whether the pipeline shut-off valve, controlled by this pneumatic actuator, is open or closed. The housing of the box is protected against dust and moisture NEMA4.4X/IP66/IP67.
The limit position sensor can be used together with the SC-RAT/RST series pneumatic actuator for quarter-turn control of disc rotary dampers and butterfly valves, ball valves. You can purchase an assembled valve with a pneumatic actuator and limit switch box from us.
| Model | ALP-210N | |
|---|---|---|
| Parameter | Standard | On Demand |
| Protection Level | IP67 | |
| Temperature Range | -25°C ~ +80°C | |
| Terminal Block | 8 | 9~24 |
| Switch Type | Mechanical, two changeover contacts | |
| Switch Type | 0 ~ 90° | 0 ~ 180° |
| Open - Yellow; Closed - Red | ||
| Cable Entry | 2x1/2NPT | PT1/2 PF1/2 M20, PG13/5 |

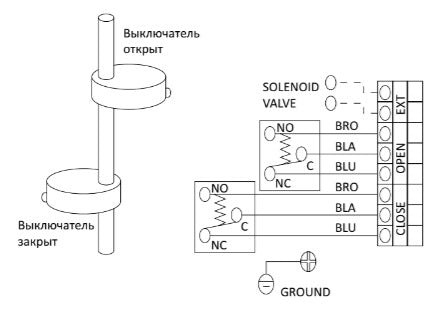

Wiring Diagram for ALP Series Limit Switch
