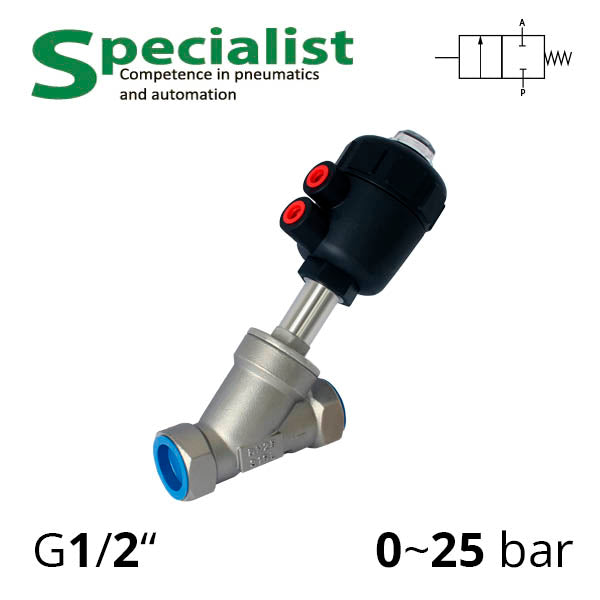

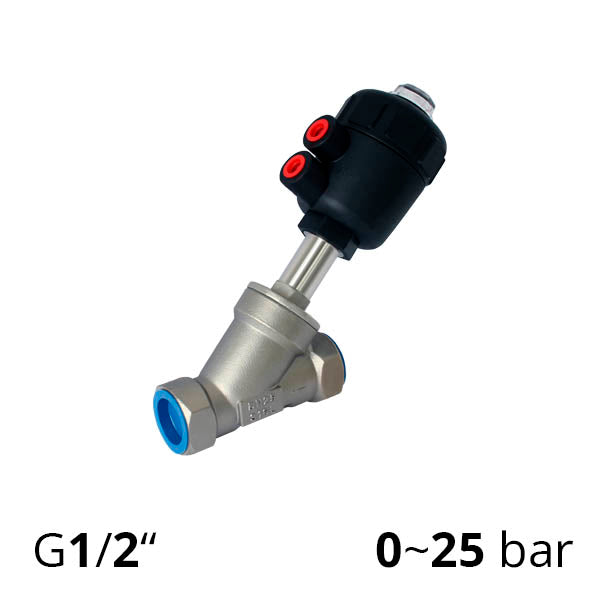

Shut-off valve with pneumatic drive, angle thread G1/2″, DU 15 - SV-HS-AS-22NC-15-121 (Pneumatic drive plastic)

Do you have any questions about the product?
We will be happy to answer them in messengers

Shut-off valve with pneumatic drive, angle thread G1/2″, DU 15 - SV-HS-AS-22NC-15-121 (Pneumatic drive plastic)

Name: Shut-off valve with pneumatic drive, angle thread G1/2″, DU 15 - SV-HS-AS-22NC-15-121 (Pneumatic drive plastic)
Brand: Specialist
SKU: SV-HS-AS-22NC-15-121
Price: 2932.44 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Матеріал циліндру

Пластиковий

Thread size

G ½

Model

Manufacturer

Specialist

from 2 932,44 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SV-HS-AS-22NC-15-121

Shut-off valve with pneumatic drive, angle thread G1/2″, DU 15 - SV-HS-AS-22NC-15-121 (Pneumatic drive plastic)

Diameter of conditional passage=15 Матеріал циліндру=Пластиковий Thread size=G ½

SV-HS-AS-22NC-15-121

2 932,44 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G ½"

Матеріал диску

Stainless steel AISI 316 SS

Body material

Plastic

Nominal diameter

TWO 15

Тип засувки

Valve

Nominal diameter

Матеріал циліндру

Пластиковий

Тип контролю

With pneumatic drive

Description

Angled cut-off valves with inclined seat and pneumatic drive of the SV-HS-AS-22NC-15-121 series with G1/2" thread. Made from stainless steel, they can operate with various media at pressures up to 25 bar. The shut-off two-way valves of this series are available with unilateral or bilateral pneumatic control. The body of the pneumatic cylinder is plastic — significantly cheaper than stainless steel. By default, we supply threaded angled valves, but you can order flange connection or welding execution DIN11850.2 ISO2037.

The valve with inclined spindle is normally closed in two-position.

Our store warehouses are located in Dnipro and Lviv. This means you can receive your order quickly and easily, wherever you are in Ukraine. Find more valves ➡️here.

Dimensions	DN15
Connecting thread for HS execution	G1/2”
Connecting thread for pneumatic drive	G1/8”
Working medium	Air, water and other media not reacting with valve material
Materials	Stainless steel CF8M, 304, 316, PTFE, FKM, NBR
Operating temperature range	-10 ~ 180 °C (for dry air without moisture)
Ambient temperature	-10 ~ 60 °C
Operating air cylinder pressure (for AS execution)	1 ~ 10 (4 – 10) bar
Operating medium pressure	0 ~ 25 bar
