Ball valve 1/2″ stainless DU 15 with internal thread SCBV-Q611F-16FC-15

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Ball valve 1/2″ stainless DU 15 with internal thread SCBV-Q611F-16FC-15

Name: Ball valve 1/2″ stainless DU 15 with internal thread SCBV-Q611F-16FC-15
Brand: Specialist
SKU: SCBV-Q611F-16FC-15
Price: 982.32 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Thread size

G 1/2

Model

Manufacturer

Specialist

from 982,32 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBV-Q611F-16FC-15

Ball valve 1/2″ stainless DU 15 with internal thread SCBV-Q611F-16FC-15

Diameter of conditional passage=15 Thread size=G 1/2

SCBV-Q611F-16FC-15

982,32 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 1/2"

Матеріал диску

SS304 stainless steel

Матеріал ущільнення

PTFE

Body material

SS304 stainless steel

Nominal diameter

TWO 15

Тип засувки

Ball valve

Nominal diameter

Inlet pressure

Ru16 (16 bars)

Тип контролю

Drive-in site

Description

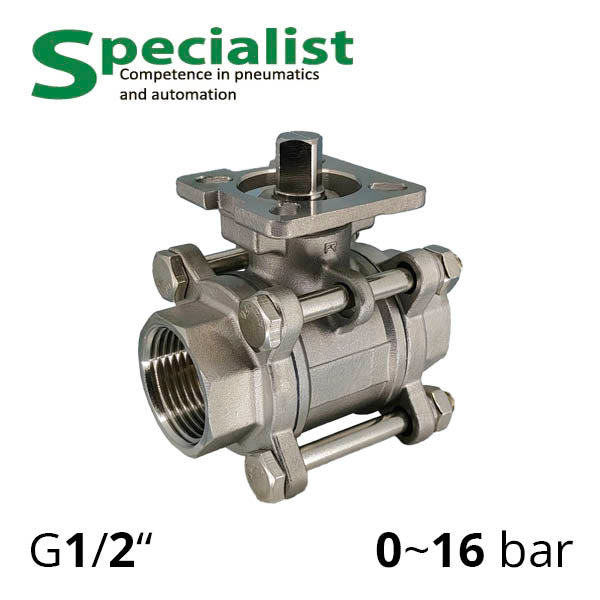

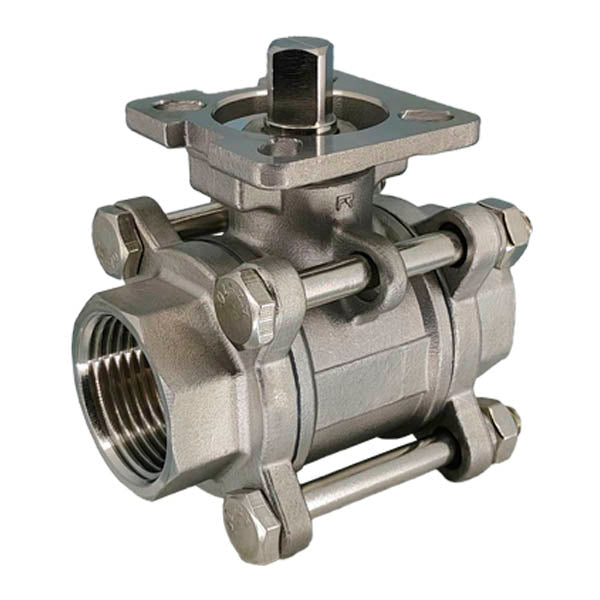

Stainless Steel Ball Valve 1/2″ (DN15) SCBV-Q611F-16FC-15 is a 2-way full bore valve with a stainless steel AISI 304 ball, PTFE sealing, a disassemblable 3-piece body with couplings with internal cylindrical pipe thread 1/2 inch and a universal mounting platform ISO 5211 F03, suitable for manual, electric or pneumatic actuator installation, such as pneumatic actuator models SC-RAT32, SC-RST50 or HL electric actuator.

The use of the two-way SCBV-Q611F-16FC-15 ball valve is allowed in all types of plumbing systems: for hot, cold, drinking water, and steam. They may be used for various food mixtures and suspensions, petroleum products, and oils, provided they are compatible with stainless steel and PTFE.

The three-component housing has detachable coupling connections, joined by studs, ensuring reliable sealing of the ball valve under pressure and allowing for disassembly for repair (ball replacement). The nominal pressure is PN16 (Ru 16, that is 16 bar). On request, the stainless steel ball valve can be manufactured with reinforcement for high pressure up to 64 bar. Full bore design means the diameter of the ball matches the size of the connected pipeline, i.e., DN15 mm.
