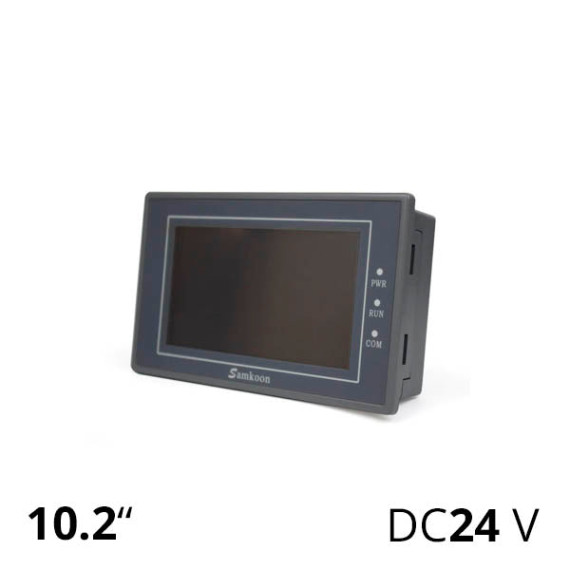

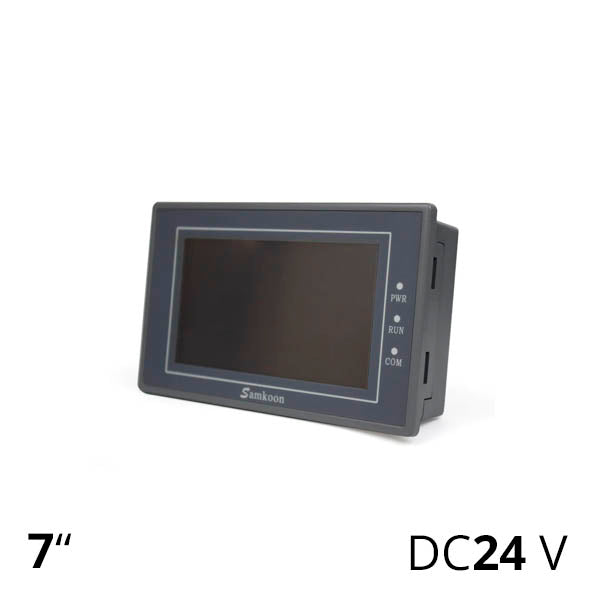

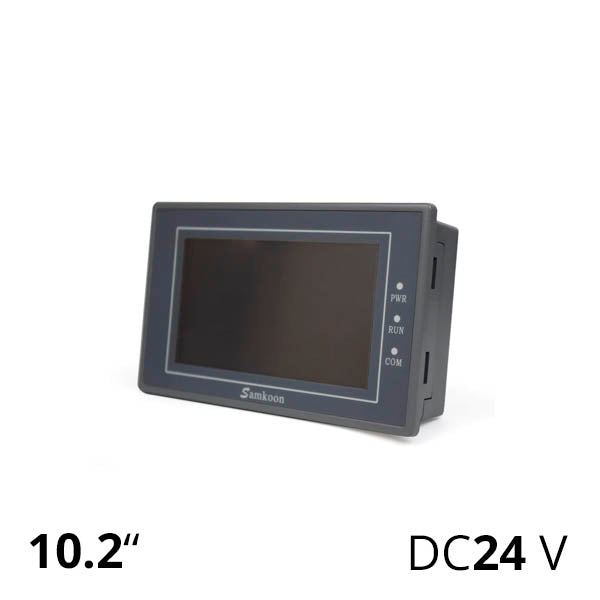

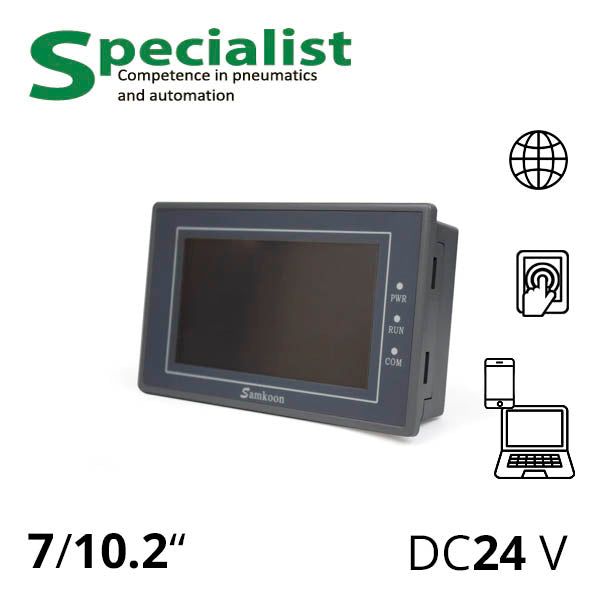

Touch control panel Samkoon series SPLC-SK___QS
In Stock
Розмір дисплею
Model
SPLC-SK-070QS-G
Manufacturer
Samkoon
from 8 308,86 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Models
Found 2 variants
Name
Model
Price
Availability
Qty
Action
SPLC-SK-102QS-G
Touch control panel Samkoon series SPLC-SK___QS
Розмір дисплею=10.2″
SPLC-SK-102QS-G
13 371,12 UAH
In Stock
SPLC-SK-070QS-G
Touch control panel Samkoon series SPLC-SK___QS
Розмір дисплею=7″
SPLC-SK-070QS-G
8 308,86 UAH
In Stock
Request a variant
Fill in the form and we will get back to you regarding this variant.
Technical specifications
Description
Samkoon SPLC-SK series operator touch panels are designed for convenient display of object status, parameters, and process control on a control panel. Models with various display sizes from 4.3 to 15.6 inches allow for an optimal choice considering price.
Unlike the older models equipped with a RISK processor with a clock rate of 400 MHz, new SPLC-___Q_ models have a more productive dual-core Cortex A7 with a clock rate of at least 1 GHz and greater RAM and available long-term flash memory.
All SPLC-SK series touch panel models come with an information exchange port Ethernet and three COM ports for connection and data transmission: COM1:RS232, COM2:RS422/485, COM3:RS485.
- SPLC-SK___QE — without Ethernet, have two serial COM ports (order-based);
Selecting a Samkoon Panel Model
| Model | SPLC-SK-043QE | SPLC-SK-070QS | SPLC-SK-102QS | SPLC-SK-156QS |
|---|---|---|---|---|
| Screen size | 4.3″ | 7″ | 10.2″ | 15.6″ |
| Resolution | 480×272 | 800×480 | 1024×600 | 1920×1080 |
| Brightness | 400 cd/m² | 450 cd/m² | 450 cd/m² | 300 cd/m² |
| Contrast | 400:1 | 700:1 | ||
| RAM | 128 MB DDR3 | 256 MB DDR3 | ||
| Processor | Cortex A7 1 GHz | Cortex A7 1.2 GHz | ||
| Storage memory | 128 MB FLASH | 4G (EMMC) | ||
| USB Host | Yes | Yes | ||
| USB Client | Yes | No | ||
| Ethernet | none | Ethernet available (default) |
||
| Serial port | COM1:RS232 COM2:RS422/485 |
COM1:RS232 COM2:RS422/485 COM3:RS485 |
||
| Power consumption | 3W | 4W | 7W | 10W |
| Power supply | DC24V (±15%) | |||
SKTOOL software for creating projects for operator panels can be downloaded for free from our website. This software is periodically updated for improvement.
General Characteristics of the SPLC-SK Series
| Number of displayable colours | 16,770,000 (16.77 million) |
|---|---|
| Aspect ratio | 16:9 |
| Backlight | LED |
| Touch panel | 4-wire high precision touch panel |
| Pressure test | 1000V AC, one minute |
| FCC compliance | Compliant with FCC standards, class A |
| Certification | CE certification (compliance with EN55022 and EN55024 standards) |
| Ambient temperature | from -20 to +55°C (no freezing) |
| Operating environment conditions | from 5 to 95% RH (no condensation) |
| Vibration resistance | 10-25 Hz (XYZ direction 2G/30 minutes) |
| Protection level | IP65 (front panel) |
| Housing material | ABS + PC (plastic and polycarbonate) |
To improve the series, the manufacturer reserves the right to make changes to the design without notice, which may lead to technical characteristic changes.
