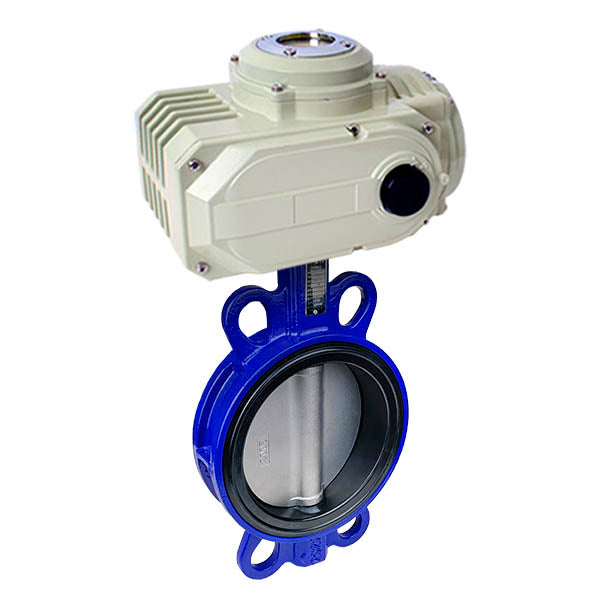

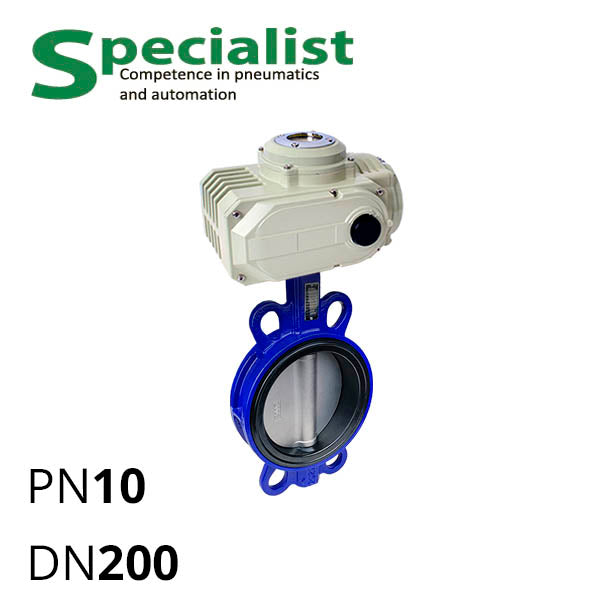

Disc rotary latch DU 200 cast iron with electric drive SCBF-D673-10XEX-200-HL-100

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary latch DU 200 cast iron with electric drive SCBF-D673-10XEX-200-HL-100

Name: Disc rotary latch DU 200 cast iron with electric drive SCBF-D673-10XEX-200-HL-100
Brand: Specialist
SKU: SCBF-D673-10XEX-200-HL-100
Price: 25982.16 UAH
Availability: InStock

In Stock

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 25 982,16 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-200-HL-100

Disc rotary latch DU 200 cast iron with electric drive SCBF-D673-10XEX-200-HL-100

Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-200-HL-100

25 982,16 UAH

In Stock

Technical specifications

Connection type

inter-flange

Installation length

60 mm

Диск

WCB

Матеріал диску

WCB cast iron

Матеріал ущільнення

EPDM

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 200

Тип засувки

disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With electric drive

Description

Industrial wafer lugged cast iron Butterfly Valve with Electric Actuator cast iron series SCBF-D673-10XEX-200-HL-100 is a non-dismantle butterfly valve "lug type" with body and disc made from cast carbon steel WCB, unlike grey and ductile iron, it can operate under high pressure and has better thermal resistance. Nominal bore diameter for pipes DN 200 mm.

These cast iron lugged butterfly valves DN 200 are shut-off valves — equipped with actuator type operating in "open/closed" mode. Regulating actuator — on request.

Manufactured for use in water supply systems, with liquids and gases with low alkali concentration and limited low acid content. Working medium compatibility should be checked with WCB and EPDM. Allowable operating pressure (by default) — PN up to 10 bar.

Table — Main Parameters of Electric Actuated Butterfly Valve SCBF-D673-10XEX-200-HL-100
DN	200 mm
Nominal Pressure	PN 10 bar (1 MPa); on request PN16, PN40
Body Material	WCB according to ASTM A216
Disc Material	WCB according to ASTM A216
Seal Material	EPDM
Operating Temperature EPDM	from −30 to 95°C
Installation Thickness	60 mm
Electric Actuator	SCBF-HL-100 (“open-close”)
Power Supply	220 Volts
Actuator Torque	800 N⋅m
