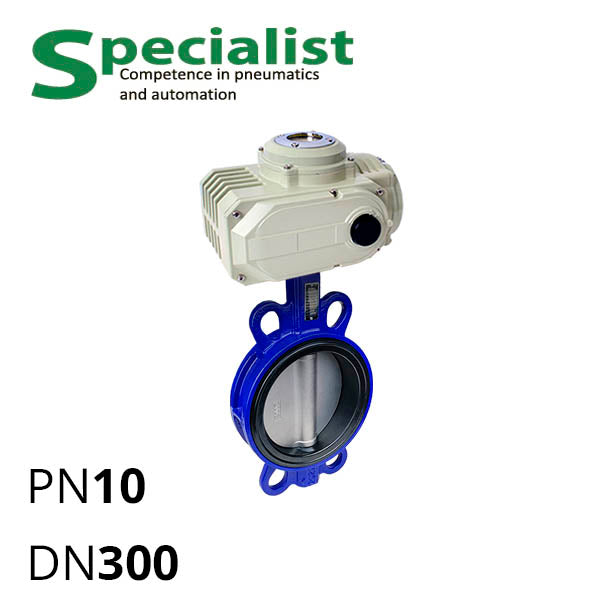

Disc rotary latch DU 300 cast iron with electric drive SCBF-D673-10XEX-300-HL-100

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary latch DU 300 cast iron with electric drive SCBF-D673-10XEX-300-HL-100

Name: Disc rotary latch DU 300 cast iron with electric drive SCBF-D673-10XEX-300-HL-100
Brand: Specialist
SKU: SCBF-D673-10XEX-300-HL-100
Price: 35390.28 UAH
Availability: InStock

In Stock

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 35 390,28 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-300-HL-100

Disc rotary latch DU 300 cast iron with electric drive SCBF-D673-10XEX-300-HL-100

Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-300-HL-100

35 390,28 UAH

In Stock

Technical specifications

Connection type

inter-flange

Installation length

78 mm

Диск

WCB

Матеріал диску

WCB cast iron

Матеріал ущільнення

EPDM

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 300

Тип засувки

disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With electric drive

Description

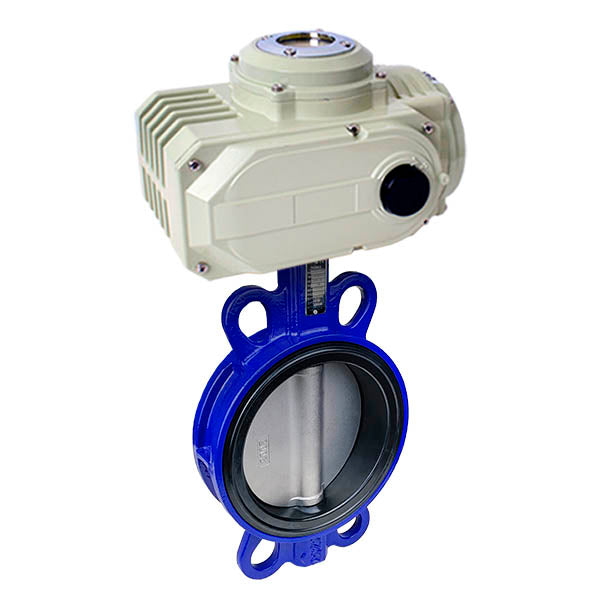

Industrial wafer type cast iron butterfly valve with electric actuator series SCBF-D673-10XEX-300-HL-100 is a non-separable butterfly valve "wing" with body and disc made of cast carbon steel WCB, which unlike grey and ductile iron can operate under high pressure and has better heat resistance. Nominal diameter for pipes DN 300 mm.

These cast iron wafer type butterfly valves DN 300 are shut-off devices — equipped with an actuator type that operates in "open/close" mode. Regulating actuator — on request.

Manufactured for use in water supply systems, with liquids and gases with weak alkali concentration and limited small amount of acids. The working medium should be checked for compatibility with WCB and EPDM. Permissible working pressure (default) — PN up to 10 bar.

Table — Main parameters of electric actuated butterfly valve SCBF-D673-10XEX-300-HL-100
DN	300 mm
Nominal Pressure	PN 10 bar (1 MPa); on request PN16, PN40
Body Material	WCB according to ASTM A216
Disc Material	WCB according to ASTM A216
Seal Material	EPDM
Operating Temperature EPDM	from −30 to 95°C
Installation Thickness	78 mm
Electric Actuator	SCBF-HL-100 (“open-close”)
Voltage	220 Volts
Actuator Torque	800 N⋅m
