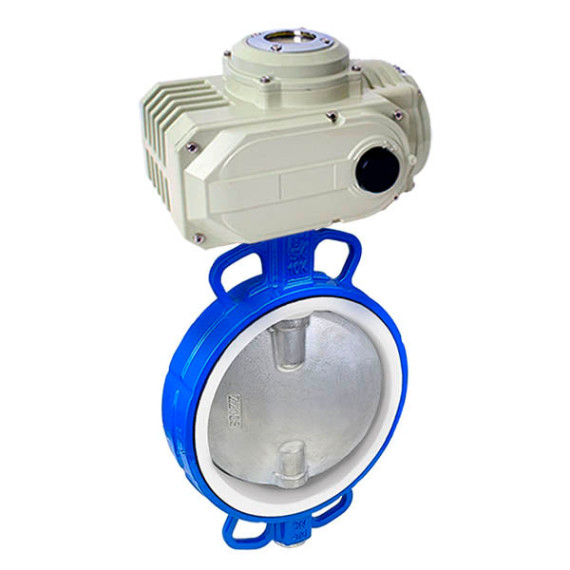

Disc rotary shutter DU 150 stainless with electric drive SCBF-D674

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary shutter DU 150 stainless with electric drive SCBF-D674

Name: Disc rotary shutter DU 150 stainless with electric drive SCBF-D674
Brand: Specialist
SKU: SCBF-D674-10XEC-150-HL-20
Price: 18403.44 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Привід

100 Нм 800 Нм

Model

Manufacturer

Specialist

from 18 403,44 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-150-HL-20

Disc rotary shutter DU 150 stainless with electric drive SCBF-D674

Диск=SS304 Ущільнення=EPDM Привід=100 Нм

SCBF-D674-10XEC-150-HL-20

18 403,44 UAH

In Stock

SCBF-D674-10XES-150-HL-20

Disc rotary shutter DU 150 stainless with electric drive SCBF-D674

Диск=SS316 Ущільнення=EPDM Привід=100 Нм

SCBF-D674-10XES-150-HL-20

19 110,00 UAH

In Stock

SCBF-D674-10XFS-150-HL-100

Disc rotary shutter DU 150 stainless with electric drive SCBF-D674

Диск=SS316 Ущільнення=PTFE Привід=800 Нм

SCBF-D674-10XFS-150-HL-100

29 484,24 UAH

In Stock

Technical specifications

Connection type

inter-flange

Installation length

56 mm

Диск

SS304, SS316

Матеріал диску

Stainless steel AISI 304 SS, Stainless steel AISI 316 SS

Матеріал ущільнення

EPDM

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 150

Тип засувки

disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Привід

100 Нм, 800 Нм

Тип контролю

With electric drive

Description

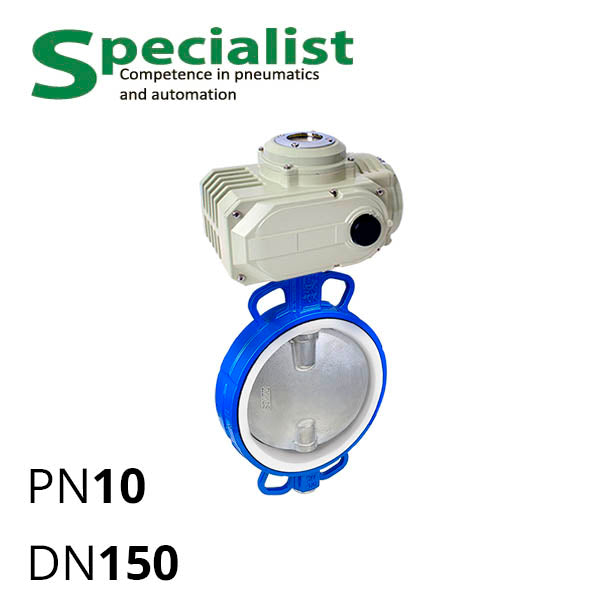

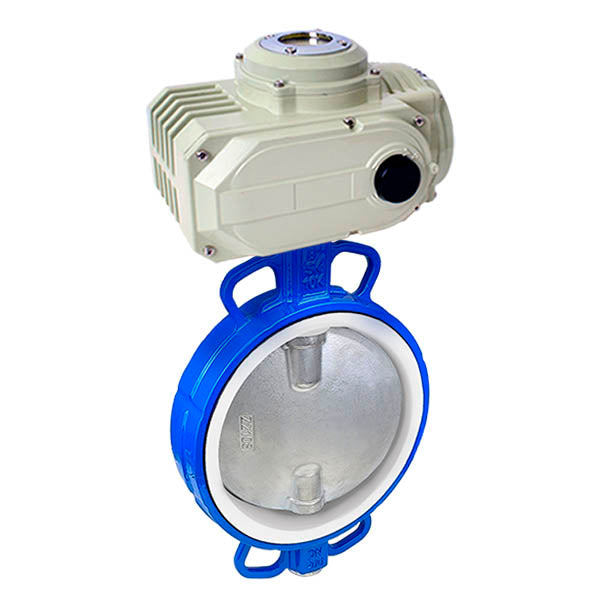

SCBF-D674-10XEC/XES/XFS-150-HL-20/100 is a stainless steel butterfly valve DN150 with electric actuator. The disc of the valve is made of food-grade stainless steel ANSI CF8 or CF8M, which are equivalents to AISI 304 or 316. The body is made of WCB steel. The butterfly valve DN150 itself is dismountable and maintainable, designed for wafer installation on pipelines with a nominal diameter DN150 mm, for opening and closing the passage for the working medium.

The working pressure (default) is PN10 (10 bar). Check the compatibility of the working medium with SS304/SS316 and EPDM/PTFE. For liquids containing organic acids (acetic, citric, lactic, etc.) select SS304+EPDM, whereas for petroleum products or steam - SS316+PTFE.

Stainless steel wafer butterfly valves DN150 are equipped with an HL-20/100 drive with two positions: closed and open. You can order the drive HL-20/100-A (4-20 mA), to get a regulating type of butterfly valve.

Table No.1 — Parameters of Electric Actuated Butterfly Valve SCBF-D674-10XEC/XES/XFS-150-HL-20/100
DN	150 mm
Nominal Pressure	PN10 (10 bar)
Body	WCB to ASTM A216
Disc	ANSI CF8 or CF8M (AISI 304/316)
Seat Seal	EPDM or PTFE
Operating Temperature for EPDM	from −30 to 95° C
Operating Temperature for PTFE	from −40 to 160° C
Construction Length	56 mm
Electric Actuator Model	SCBF-HL-20/100 (2 pos.)
Power Supply	220 V
Actuator Torque	200/800 N⋅m
