Cast-iron disc regulating shutter DU 65 with electric drive SCBF-D673-10XEX-65-HL-10-A

Do you have any questions about the product?
We will be happy to answer them in messengers

Cast-iron disc regulating shutter DU 65 with electric drive SCBF-D673-10XEX-65-HL-10-A

Name: Cast-iron disc regulating shutter DU 65 with electric drive SCBF-D673-10XEX-65-HL-10-A
Brand: Specialist
SKU: SCBF-D673-10XEX-65-HL-10-A
Price: 18119.82 UAH
Availability: InStock

In Stock

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 18 119,82 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-65-HL-10-A

Cast-iron disc regulating shutter DU 65 with electric drive SCBF-D673-10XEX-65-HL-10-A

Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-65-HL-10-A

18 119,82 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

46 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 65

Тип засувки

disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With electric drive

Description

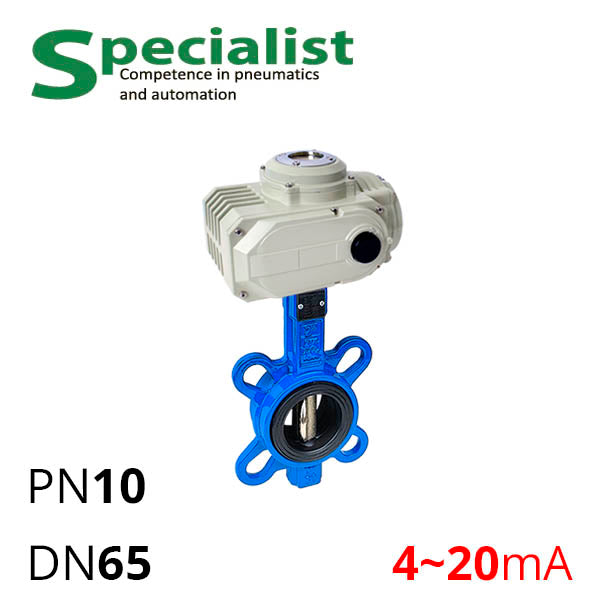

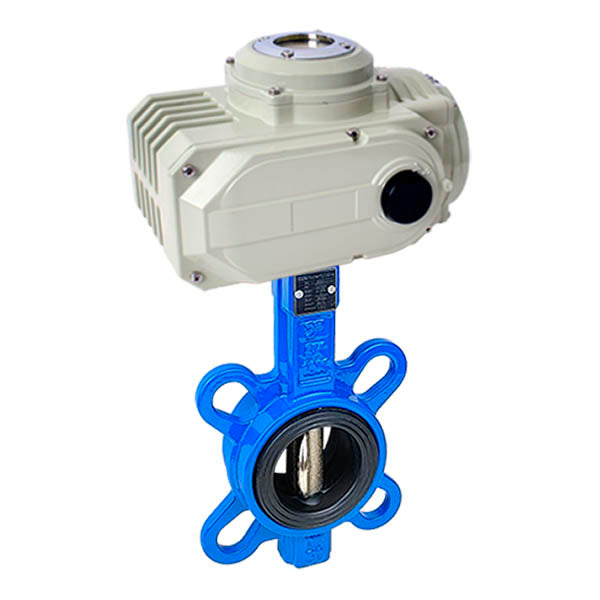

Industrial control butterfly valve wafer type cast iron with electric actuator of series SCBF-D673-10XEX-65-HL-10-A is a non-dismountable butterfly valve "butterfly" with body and disc made of cast carbon steel WCB, which, unlike grey and ductile iron, can operate under high pressure and has better thermal resistance. Nominal pipe diameter DN 65 mm.

These cast iron wafer-type butterfly valves DN 65 are equipped with a modulating type of actuator, which can stop proportionally to the signal 4-20 mA in intermediate positions between 0~90° to regulate non-aggressive gases, air, water, and liquids with a weak concentration of alkalis and limited amounts of acids. The working medium should be checked for compatibility with WCB and EPDM. Allowable working pressure (by default) — PN up to 10 bar.

Table — Parameters of Electric Actuated Control Rotary Disc Valve SCBF-D673-10XEX-65-HL-10-A
DN	65 mm
Nominal Pressure	PN 10 bar (1 MPa)
Body Material	WCB according to ASTM A216
Disc Material	WCB according to ASTM A216
Seal Material	EPDM
EPDM Operating Temperature	from −30 to 95°C
Installation Thickness	46 mm
Electric Actuator	SCBF-HL-10-A (multi-pos.)
Power Supply	220 Volts
Control Signal	4-20 mA
Actuator Torque	100 Nm
