Disc rotary shutter DU 125 stainless with electric drive SCBF-D674

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary shutter DU 125 stainless with electric drive SCBF-D674

Name: Disc rotary shutter DU 125 stainless with electric drive SCBF-D674
Brand: Specialist
SKU: SCBF-D674-10XEC-125-HL-20
Price: 17037.12 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 17 037,12 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-125-HL-20

Disc rotary shutter DU 125 stainless with electric drive SCBF-D674

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-125-HL-20

17 037,12 UAH

In Stock

SCBF-D674-10XES-125-HL-20

Disc rotary shutter DU 125 stainless with electric drive SCBF-D674

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-125-HL-20

17 295,60 UAH

In Stock

SCBF-D674-10XFS-125-HL-20

Disc rotary shutter DU 125 stainless with electric drive SCBF-D674

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-125-HL-20

19 020,18 UAH

In Stock

Technical specifications

Connection type

inter-flange

Installation length

56 mm

Диск

SS304, SS316

Матеріал диску

Stainless steel AISI 304 SS, Stainless steel AISI 316 SS

Матеріал ущільнення

EPDM

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 125

Тип засувки

disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With electric drive

Description

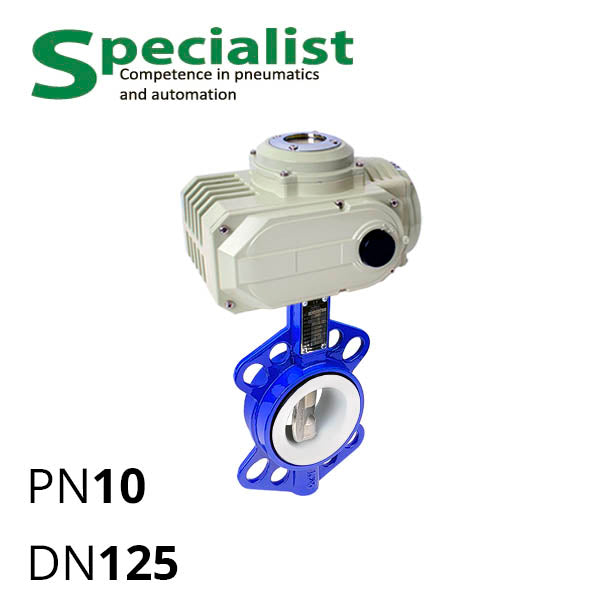

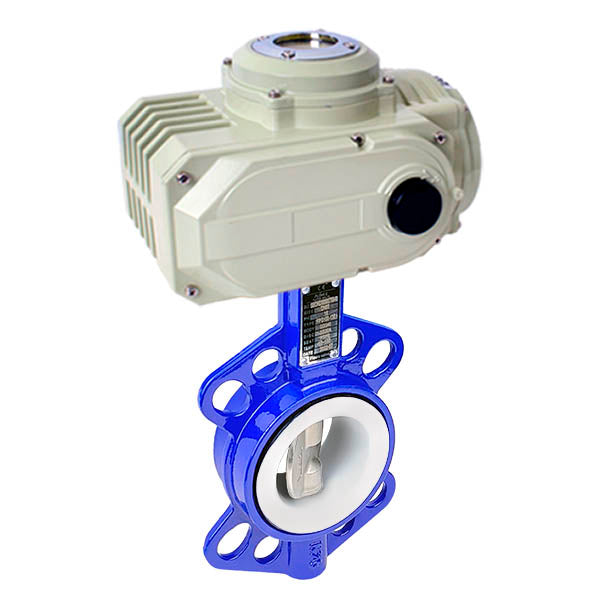

SCBF-D674-10XEC/XES/XFS-125-HL-20 is a stainless steel butterfly valve DN 125 with an electric actuator. The valve disc is made from food-grade stainless steel ANSI CF8 or CF8M, which are equivalents to AISI 304 or 316. The body is made of steel with WCB. The DN125 butterfly valve is disassemblable and repairable and is designed for wafer installation on pipelines with a nominal diameter DN 125 mm, where it will open and close the passage for the working medium.

Operating pressure (default) — PN 10 (PN10). Check the compatibility of the working medium with SS304/SS316 and EPDM/PTFE. For liquids with organic acids (acetic, citric, lactic, etc.) choose SS304+EPDM, while for petroleum products or steam — SS316+PTFE.

Stainless steel wafer butterfly valves DN125 are equipped with a type HL-20 shut-off actuator, which has two positions: closed and open. You can order the HL-20-A (4-20 mA), to get a regulating type butterfly valve.

Table №1 — Parameters of Electric Actuated Wafer Butterfly Valve SSCBF-D674-10XEC/XES/XFS-125-HL-20
DN	125 mm
Nominal Pressure	PN 10 (10 bar)
Body	WCB per ASTM A216
Disc	ANSI CF8 or CF8M (AISI 304/316)
Seat Seal	EPDM or PTFE
Operating Temperature for EPDM	from −30 to 95°C
Operating Temperature for PTFE	from −40 to 160°C
Construction Length	56 mm
Actuator Model	SCBF-HL-20 (2 pos.)
Power Supply	220 V
Actuator Torque	200 Nm
