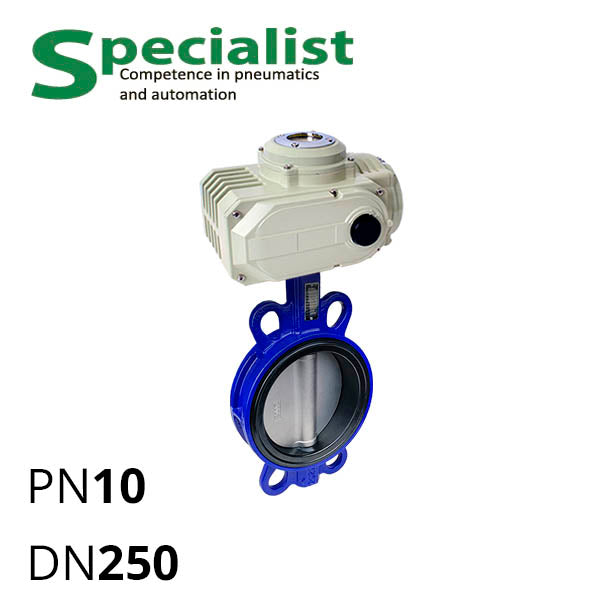

Disc rotary latch DU 250 cast iron with electric drive SCBF-D673-10XEX-250-HL-100

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary latch DU 250 cast iron with electric drive SCBF-D673-10XEX-250-HL-100

Name: Disc rotary latch DU 250 cast iron with electric drive SCBF-D673-10XEX-250-HL-100
Brand: Specialist
SKU: SCBF-D673-10XEX-250-HL-100
Price: 27811.38 UAH
Availability: InStock

In Stock

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 27 811,38 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-250-HL-100

Disc rotary latch DU 250 cast iron with electric drive SCBF-D673-10XEX-250-HL-100

Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-250-HL-100

27 811,38 UAH

In Stock

Technical specifications

Connection type

inter-flange

Installation length

67 mm

Диск

WCB

Матеріал диску

WCB cast iron

Матеріал ущільнення

EPDM

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 250

Тип засувки

disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With electric drive

Description

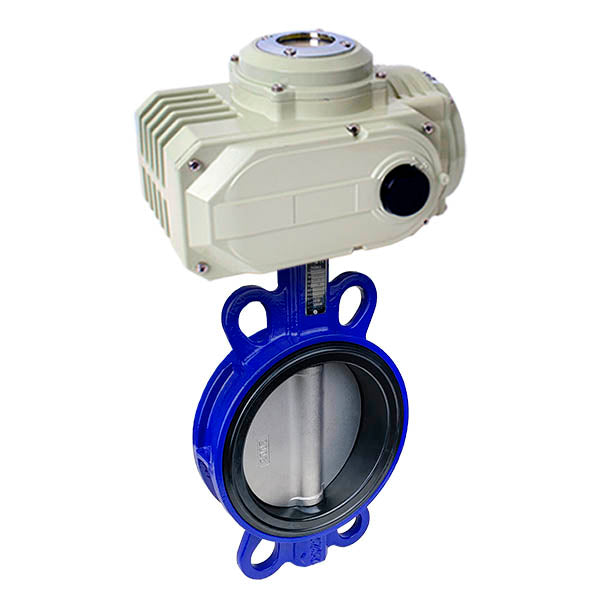

Industrial disc butterfly wafer valve cast iron with electric actuator series SCBF-D673-10XEX-250-HL-100 is a non-dismantle butterfly valve "wafer" with a cast carbon steel WCB body and disc, which unlike grey and ductile iron can operate under high pressure and has better thermal resistance. Nominal pipe passage diameter DN 250 mm.

These cast iron wafer butterfly valves DN 250 are shut-off fittings — equipped with a drive type operating in "open/close" mode. Regulating actuator — on request.

Manufactured for use in water supply systems with liquids and gases with low alkali concentration and limited amount of acids. Working environment should be checked for compatibility with WCB and EPDM. Permissible working pressure (default) — PN up to 10 bar.

Table — Main Parameters of Electric Driven Disc Butterfly Valve SCBF-D673-10XEX-250-HL-100
DN	250 mm
Nominal Pressure	PN 10 bar (1 MPa); on request PN 16, PN 40
Body Material	WCB to ASTM A216
Disc Material	WCB to ASTM A216
Seal Material	EPDM
EPDM Operating Temperature	from −30 to 95° C
Mounting Thickness	67 mm
Electric Actuator	SCBF-HL-100 (“open-close”)
Power Supply	220 Volts
Actuator Torque	800 N⋅m
