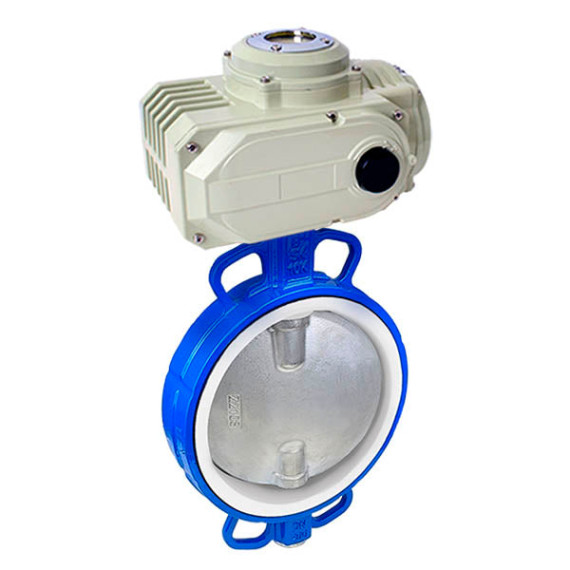

Disc rotary shutter DU 300 stainless with electric drive SCBF-D674

Name: Disc rotary shutter DU 300 stainless with electric drive SCBF-D674
Brand: Specialist
SKU: SCBF-D674-10XEC-300-HL-100
Price: 42665.16 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 42 665,16 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-300-HL-100

Disc rotary shutter DU 300 stainless with electric drive SCBF-D674

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-300-HL-100

42 665,16 UAH

In Stock

SCBF-D674-10XES-300-HL-100

Disc rotary shutter DU 300 stainless with electric drive SCBF-D674

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-300-HL-100

46 545,00 UAH

In Stock

SCBF-D674-10XFS-300-HL-100

Disc rotary shutter DU 300 stainless with electric drive SCBF-D674

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-300-HL-100

50 682,24 UAH

In Stock

Technical specifications

Connection type

inter-flange

Installation length

78 mm

Диск

SS304, SS316

Матеріал диску

Stainless steel AISI 304 SS, Stainless steel AISI 316 SS

Матеріал ущільнення

EPDM

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 300

Тип засувки

disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With electric drive

Description

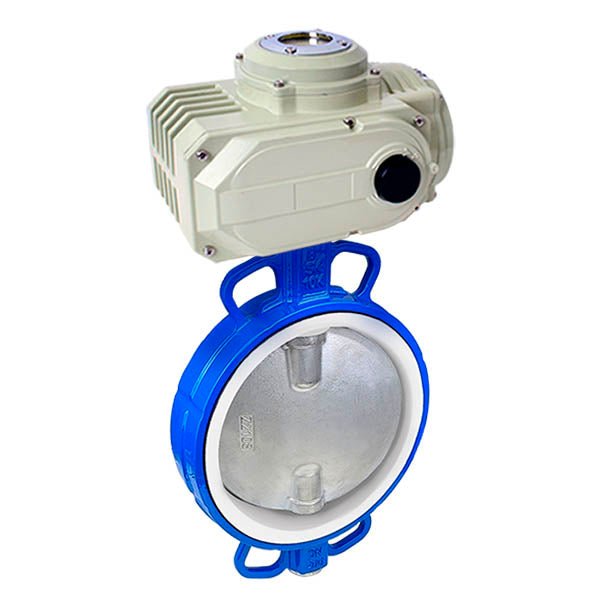

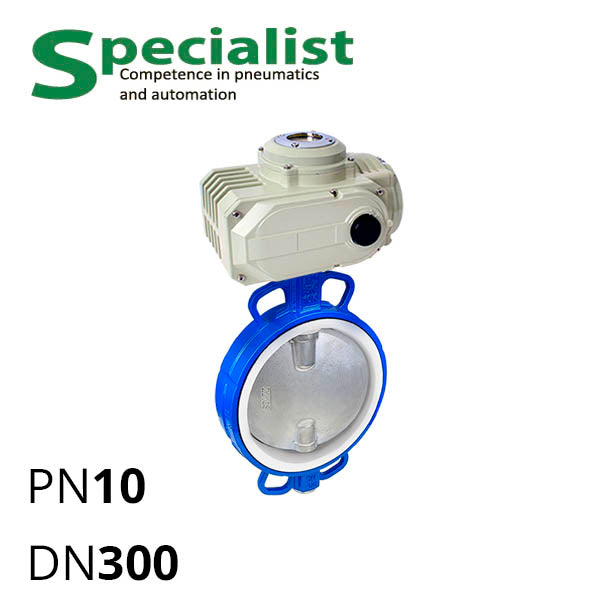

SCBF-D674-10XEC/XES/XFS-300-HL-100 is a stainless butterfly valve DN 300 with an electric actuator. The valve disc is made from food-grade stainless steel ANSI CF8 or CF8M, equivalent to AISI 304 or 316. The body is made of steel with WCB. The butterfly valve DN300 is demountable and repairable and is intended as an actuator for wafer installation on pipelines with a nominal bore diameter of DN 300 mm, to open and close the passage for the working medium.

Operating pressure (by default) — PN 10 (Rᴜ10). Check the working medium compatibility with SS304/SS316 and EPDM/PTFE. For liquids containing organic acids (acetic, citric, lactic, etc.), choose SS304+EPDM, while for oil products or steam use SS316+PTFE.

Stainless wafer butterfly valves DN300 are equipped with a shut-off type actuator HL-100, which has two positions: closed and open. You can order the actuator HL-100-A (4-20 mA), for a control-type butterfly valve.

Table #1 — Specifications of the Electrically Actuated Butterfly Valve SSCBF-D674-10XEC/XES/XFS-300-HL-100
DN	300 mm
Nominal Pressure	PN 10 (10 bar)
Body	WCB per ASTM A216
Disc	ANSI CF8 or CF8M (AISI 304/316)
Seat Seal	EPDM or PTFE
Operating Temperature for EPDM	from −30 to 95° C
Operating Temperature for PTFE	from −40 to 160° C
Construction Length	78 mm
Actuator Model	SCBF-HL-100 (2 pos.)
Power Supply	220 V
Actuator Torque	800 N⋅m
