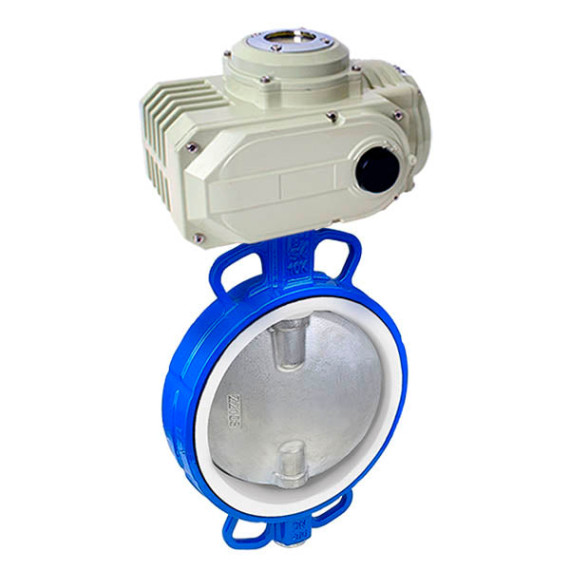

Disc rotary shutter DU 200 stainless with electric drive SCBF-D674

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary shutter DU 200 stainless with electric drive SCBF-D674

Name: Disc rotary shutter DU 200 stainless with electric drive SCBF-D674
Brand: Specialist
SKU: SCBF-D674-10XEC-200-HL-100
Price: 29121.06 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 29 121,06 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-200-HL-100

Disc rotary shutter DU 200 stainless with electric drive SCBF-D674

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-200-HL-100

29 121,06 UAH

In Stock

SCBF-D674-10XES-200-HL-100

Disc rotary shutter DU 200 stainless with electric drive SCBF-D674

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-200-HL-100

30 310,20 UAH

In Stock

SCBF-D674-10XFS-200-HL-100

Disc rotary shutter DU 200 stainless with electric drive SCBF-D674

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-200-HL-100

31 517,76 UAH

In Stock

Technical specifications

Connection type

inter-flange

Installation length

60 mm

Диск

SS304, SS316

Матеріал диску

Stainless steel AISI 304 SS, Stainless steel AISI 316 SS

Матеріал ущільнення

EPDM

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 200

Тип засувки

disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With electric drive

Description

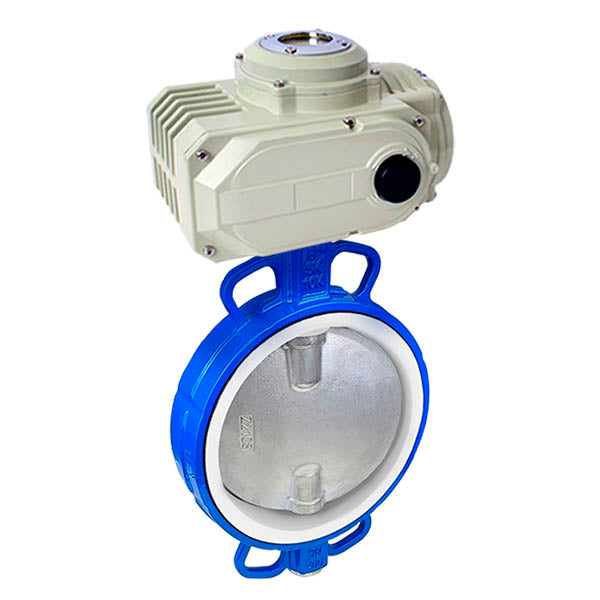

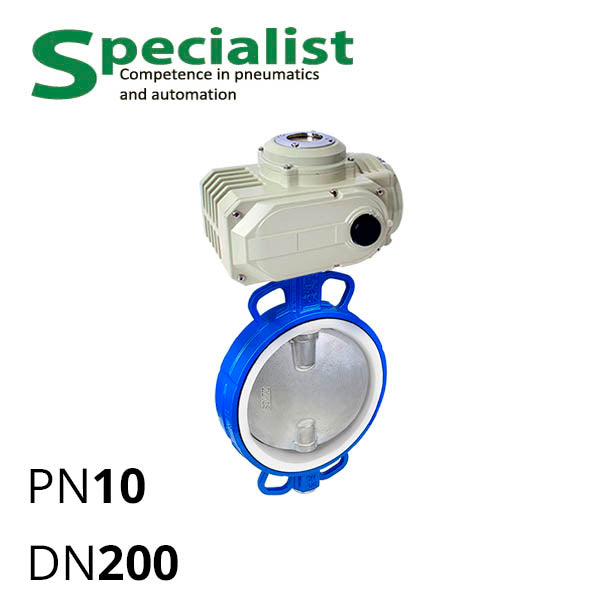

SCBF-D674-10XEC/XES/XFS-200-HL-100 is a stainless steel butterfly valve DN 200 with an electric actuator. The disc of the shut-off valve is made of food-grade stainless steel ANSI CF8 or CF8M, which are equivalents to AISI 304 or 316. The body is steel with WCB. The disc butterfly valve DN200 is dismountable and repairable and the actuator is intended for wafer installation on pipelines with a nominal bore diameter of DN 200 mm, allowing opening and closing of the passage for the working medium.

Operating pressure (by default) — PN 10 (PN10). Check the compatibility of the working medium with SS304/SS316 and EPDM/PTFE. For liquids containing organic acids (acetic, citric, lactic, etc.) choose SS304+EPDM, whereas for petroleum products or steam choose SS316+PTFE.

Stainless steel wafer butterfly valves DN200 are equipped with a shut-off type actuator HL-100, which has two positions: closed and open. You can order the actuator HL-100-A (4-20 mA), to get a regulating type of disc butterfly valve.

Table No.1 — Parameters of the Electric Actuated Disc Butterfly Valve SSCBF-D674-10XEC/XES/XFS-200-HL-100
DN	200 mm
Nominal Pressure	PN 10 (10 bar)
Body	WCB to ASTM A216
Disc	ANSI CF8 or CF8M (AISI 304/316)
Seat Seal	EPDM or PTFE
Operating Temperature for EPDM	from −30 to 95° C
Operating Temperature for PTFE	from −40 to 160° C
Construction Length	60 mm
Electric Actuator Model	SCBF-HL-100 (2 pos.)
Power Supply	220V
Actuator Torque	800 N⋅m
