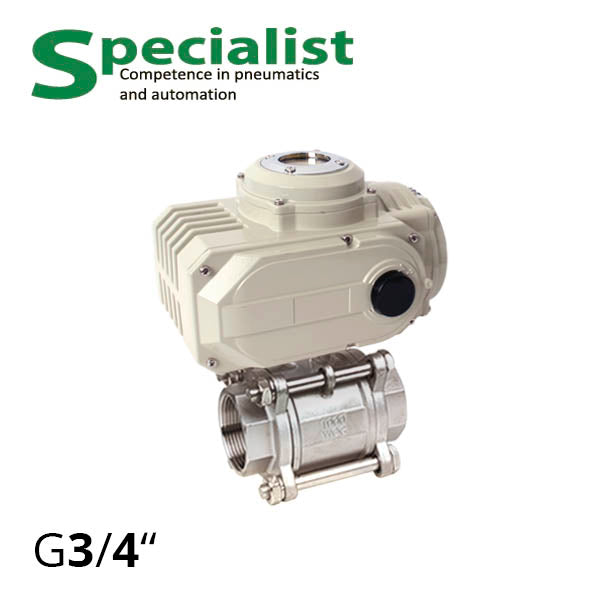

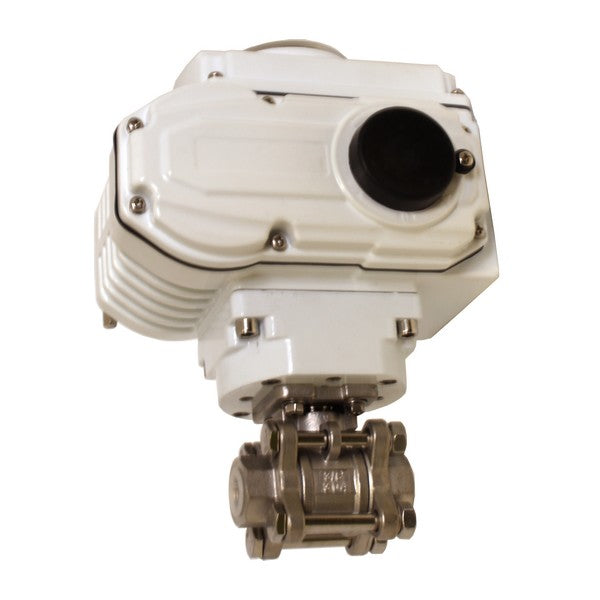

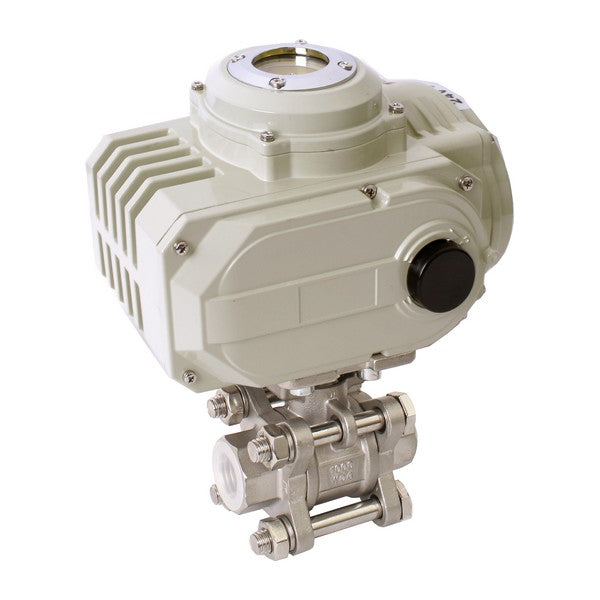

Shut-off ball valve ¾″ stainless PN16 DN20 with electric drive SCBV-Q611

SCBV-Q611F-16FC-20-HL-05 is a three-piece shut-off ball valve DN 20 with internal thread internal-g 3/4″ and electric actuator made of stainless steel. This shut-off equipment is used for automatic remote control of closing water pipelines, drinking water and food mix lines, petroleum products, and chemical substances. It is necessary to check the compatibility of the liquid or gas composition with the valve materials: PTFE-Teflon and AISI 304. If necessary, call and order from Specialist the same assembly of ball valve with electric actuator but with AISI 316.

Design of DN20 3/4 Inch Ball Electric Shut-off Valve

Standard assembly SCBV-Q611F-16FC-20-HL-05:

• Full bore ball valve with maximum throughput — the hole size in the ball is large and the same as the pipeline diameter.
• Three-piece valve body consists of a casing and two removable threaded ends (threaded part) with an internal thread on 3/4″. We also offer flanged ball valves on request, inserts for welding or clamping.
• Standardised attachments F05/F07. The ball valve and electric actuator have flange connections with each other according to ISO 5211/DIN 3337, providing full compatibility and interchangeability and ensuring reliable mounting meeting EU and Ukrainian standards.
• Remote control of positions “open-closed”
• Antistatic device and stem leakage protection
