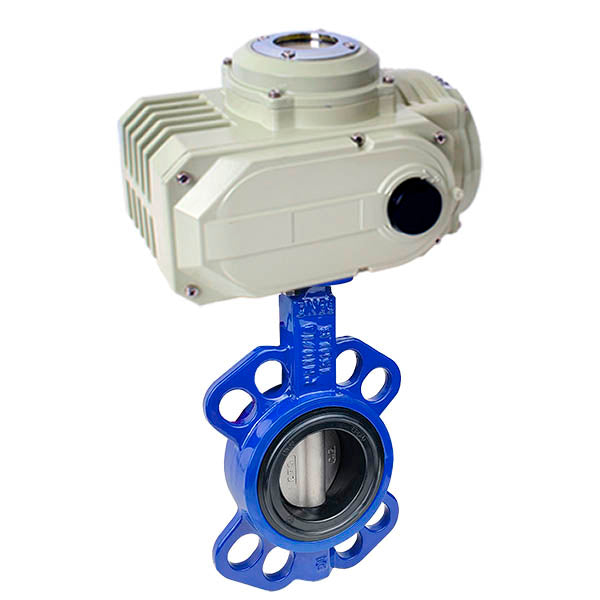

Disc rotary valve DU 80 cast iron with regulating electric drive SCBF-D673-10XEX-80-HL-10-A

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 80 cast iron with regulating electric drive SCBF-D673-10XEX-80-HL-10-A

Name: Disc rotary valve DU 80 cast iron with regulating electric drive SCBF-D673-10XEX-80-HL-10-A
Brand: Specialist
SKU: SCBF-D673-10XEX-80-HL-10-A
Price: 18276.12 UAH
Availability: InStock

In Stock

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 18 276,12 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-80-HL-10-A

Disc rotary valve DU 80 cast iron with regulating electric drive SCBF-D673-10XEX-80-HL-10-A

Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-80-HL-10-A

18 276,12 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

45 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 80

Тип засувки

disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With electric drive

Description

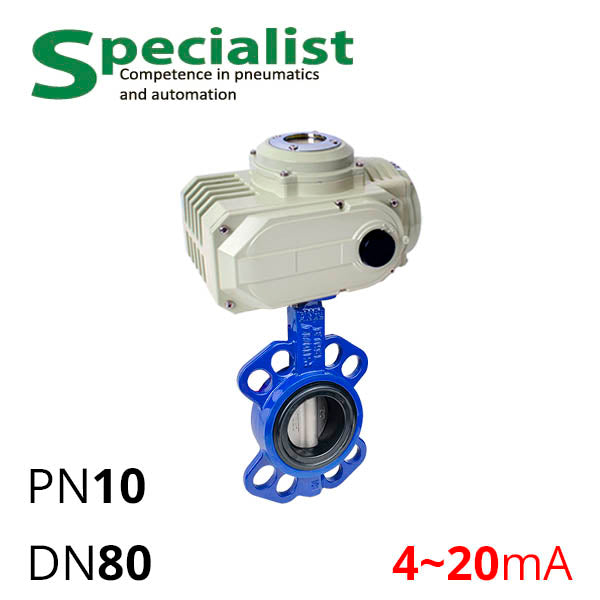

Industrial regulating butterfly valve wafer type cast iron with electric actuator series SCBF-D673-10XEX-80-HL-10-A is a non-separable butterfly valve with body and disc made from cast carbon steel WCB, capable of withstanding high pressure and offering better thermal resistance compared to grey and ductile iron. Nominal pipe diameter DN 80 mm.

These cast iron wafer butterfly valves DN 80 are equipped with an adjustable type actuator, which can stop proportionally to the 4-20 mA signal in intermediate positions between 0~90° for regulating the volume of non-aggressive gases, air, water, and liquids with low concentrations of alkalis and limited small amounts of acids. The working medium should be checked for compatibility with WCB and EPDM. Allowable working pressure (default) — PN up to 10 bar.

Table — Main Parameters of the Electric Actuated Butterfly Valve SCBF-D673-10XEX-80-HL-10-A
DN	80 mm
Nominal Pressure	PN 10 bar (1 MPa); on request PN16, PN40
Body Material	WCB per ASTM A216
Disc Material	WCB per ASTM A216
Seal Material	EPDM
EPDM Operating Temperature	from −30 to 95° C
Installation Thickness	45 mm
Electric Actuator	SCBF-HL-10-A (multi-pos.)
Power Supply	220 Volts
Control Signal	4-20 mA
Actuator Torque	100 N⋅m
