Shut-off ball valve ½″ stainless PN16 DN15 with electric drive SCBV-Q611

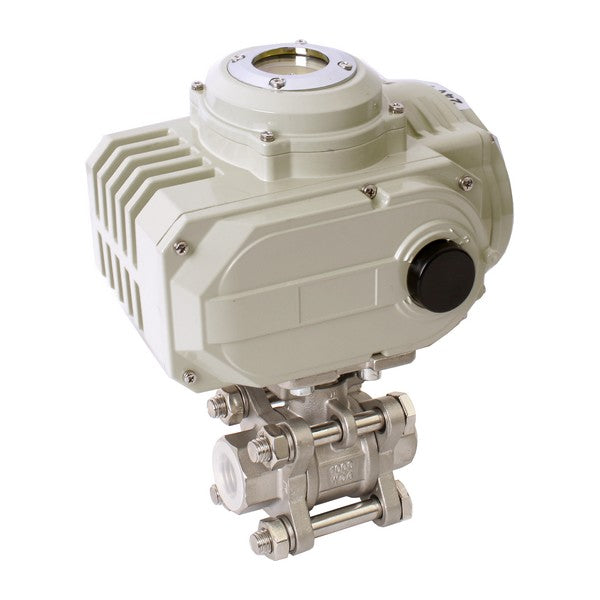

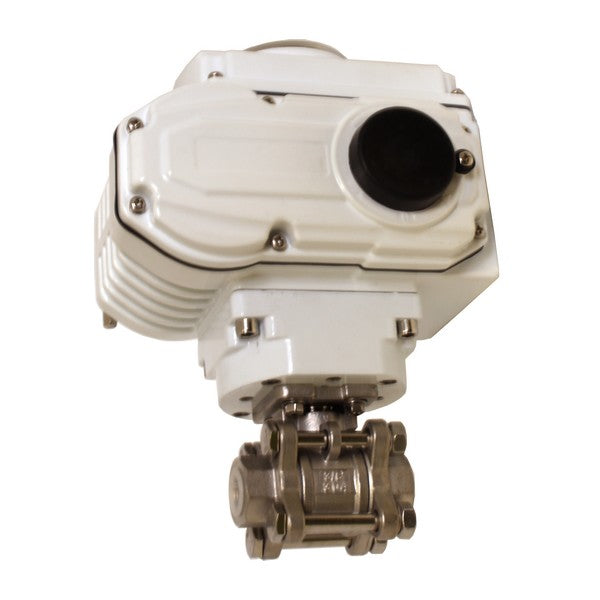

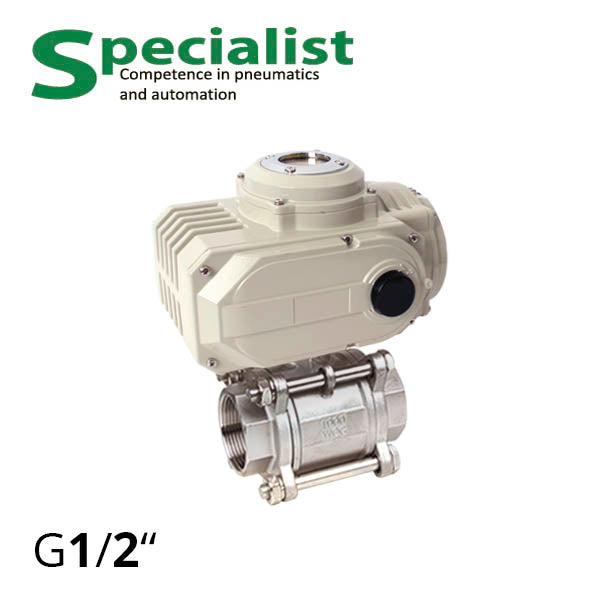

SCBV-Q611F-16FC-15-HL-05 is a three-piece shut-off ball valve DN 15 with 1/2″ threaded connection and electric actuator made from stainless steel. Used as an actuating mechanism for automated control of water supply openings, drinking water and food mixture bottling lines, petrochemical products, and chemical substances. It is essential to check the compatibility of the liquid or gas composition with the materials of the valve: PTFE-Teflon and AISI 304.

Features of the Design of Shut-off Electric Ball Valve DN15 1/2 Inch

The standard kit SCBV-Q611F-16FC-15-HL-05 includes:

• Full bore ball valve, which offers the highest flow capacity due to the fact that the size of the closure element matches the diameter of the pipeline.
• Three-piece valve body consists of the casing and two removable threaded fittings (threaded part) with internal threads of half an inch 1/2″. We also offer flange ball valves, inserts for welding, or clamping upon request.
• Standardized fittings F05/F07. The ball valve and electric actuator have flange connections between each other according to ISO 5211/DIN 3337, providing full compatibility and interchangeability of equipment and ensuring reliable installation compliant with EU and Ukraine norms.
• Electric control “open-close”
• Antistatic device and leak protection through the stem
