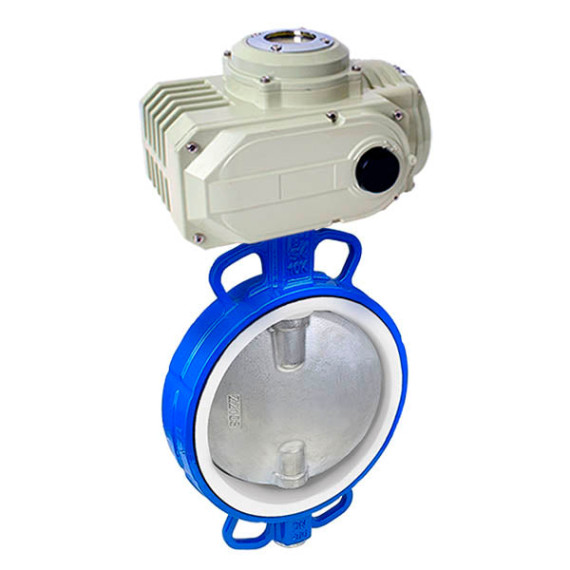

Disc rotary shutter DU 250 stainless with electric drive SCBF-D674

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary shutter DU 250 stainless with electric drive SCBF-D674

Name: Disc rotary shutter DU 250 stainless with electric drive SCBF-D674
Brand: Specialist
SKU: SCBF-D674-10XEC-250-HL-100
Price: 35361.96 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 35 361,96 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-250-HL-100

Disc rotary shutter DU 250 stainless with electric drive SCBF-D674

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-250-HL-100

35 361,96 UAH

In Stock

SCBF-D674-10XES-250-HL-100

Disc rotary shutter DU 250 stainless with electric drive SCBF-D674

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-250-HL-100

37 534,56 UAH

In Stock

SCBF-D674-10XFS-250-HL-100

Disc rotary shutter DU 250 stainless with electric drive SCBF-D674

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-250-HL-100

39 809,34 UAH

In Stock

Technical specifications

Connection type

inter-flange

Installation length

67 mm

Диск

SS304, SS316

Матеріал диску

Stainless steel AISI 304 SS, Stainless steel AISI 316 SS

Матеріал ущільнення

EPDM

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 250

Тип засувки

disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With electric drive

Description

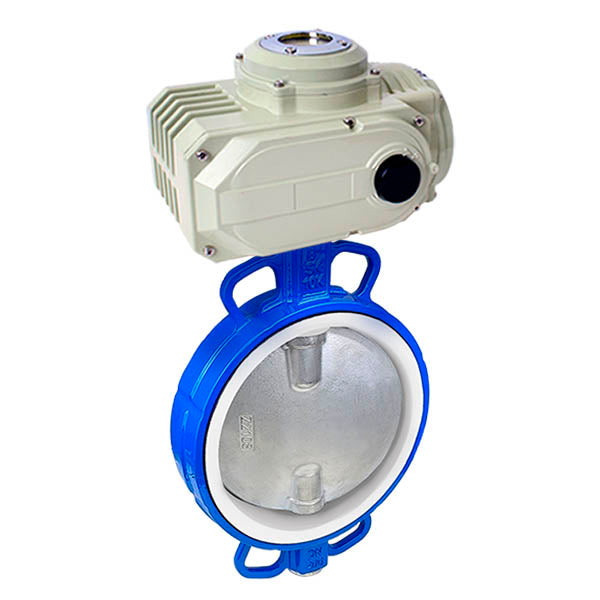

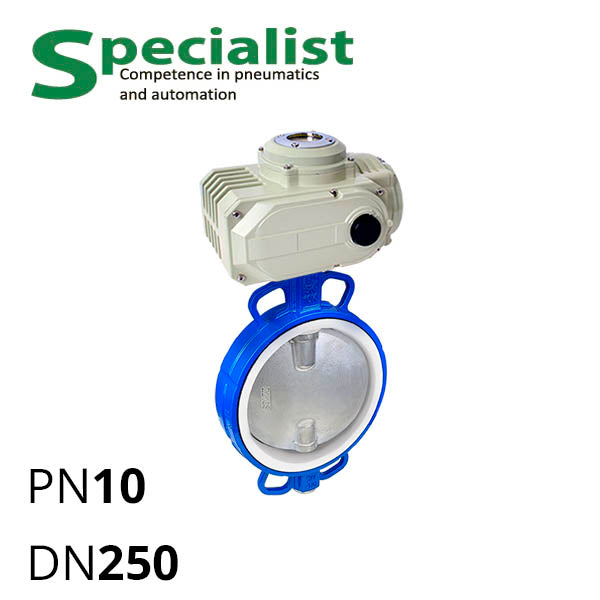

SCBF-D674-10XEC/XES/XFS-250-HL-100 is a stainless steel butterfly valve DN 250 with an electric actuator. The valve disc is made from food-grade stainless steel ANSI CF8 or CF8M, which are equivalent to AISI 304 or 316. The body is made of WCB. The DN250 butterfly valve is dismountable and repairable, designed for wafer installation on pipelines with a nominal bore diameter of DN 250 mm, facilitating the opening and closing of the working medium passage.

Default working pressure — PN 10 (10 bar). Check working medium compatibility with SS304/SS316 and EPDM/PTFE. For fluids containing organic acids (acetic, citric, lactic, etc.), choose SS304+EPDM, whereas for petroleum products or steam — SS316+PTFE.

Stainless wafer type butterfly valves DN250 are equipped with a locking type actuator HL-100, which has two positions: closed and open. You may order actuator HL-100-A (4-20 mA), to obtain a regulating type butterfly valve.

Table No.1 — Specifications of Electric Actuated Butterfly Valve SSCBF-D674-10XEC/XES/XFS-250-HL-100
DN	250 mm
Nominal Pressure	PN 10 (10 bar)
Body	WCB acc. to ASTM A216
Disc	ANSI CF8 or CF8M (AISI 304/316)
Seat Seal	EPDM or PTFE
Working Temperature for EPDM	from −30 to 95° C
Working Temperature for PTFE	from −40 to 160° C
Building Length	67 mm
Electric Actuator Model	SCBF-HL-100 (2 pos.)
Power Supply	220 V
Actuator Torque	800 N⋅m
