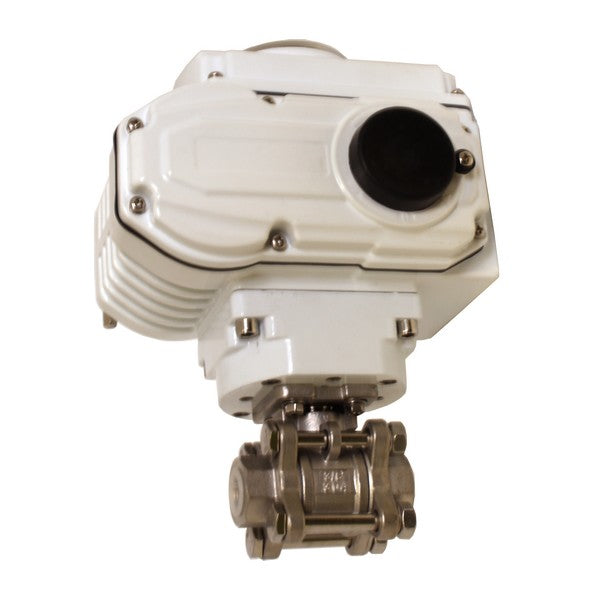

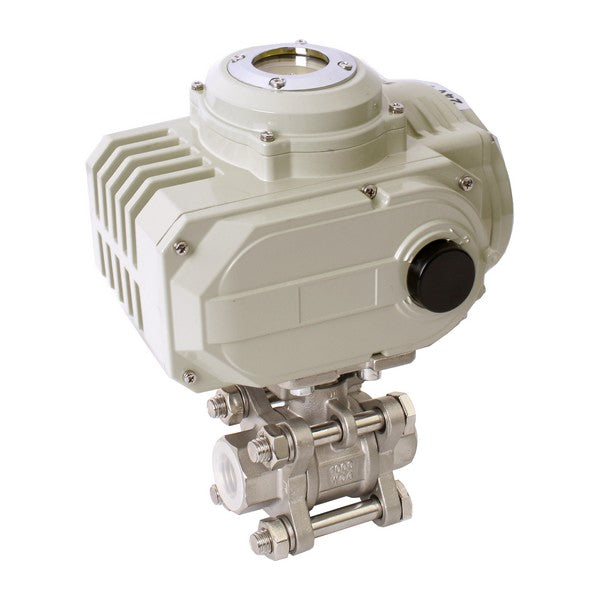

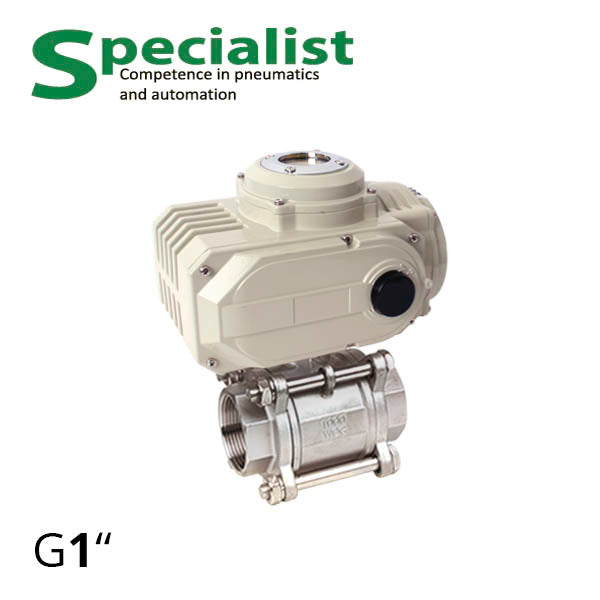

Shut-off ball valve 1″ stainless PN16 DN25 with electric drive SCBV-Q611

SCBV-Q611F-16FC-25-HL-05 is a three-piece ball valve DN 25 threaded F-F 1″ with electric actuator. This valve has a body and ball made of stainless steel and is used as an actuating mechanism for automatic control of water pipes, potable water and food mixtures distribution lines, petroleum products and chemical substances. It is mandatory to check the compatibility of the working medium with the valve materials: PTFE and AISI 304. If necessary, call and order from Specialist the same one-inch ball valve assembly with an electric actuator but made from other materials.

Features of Ball Valve with Electric Actuator DN25 1 inch

Standard configuration SCBV-Q611F-16FC-25-HL-05 includes:

• Full-bore ball valve, which has the highest flow capacity as the orifice size of the valve element matches the pipe diameter.
• Three-piece valve body consists of the housing and two removable end caps (threaded part) with internal 1″ thread. We also offer flanged ball valves, weld-in or clamp-in fittings to order.
• Standardised mounting F05/F07. The ball valve and electric actuator have flanges for mutual connection according to ISO 5211/DIN 3337, providing full compatibility and interchangeability of equipment, ensuring reliable installation complying with EU and Ukrainian standards.
• Remote control “open-close”
• Antistatic device and leakage protection through the stem
