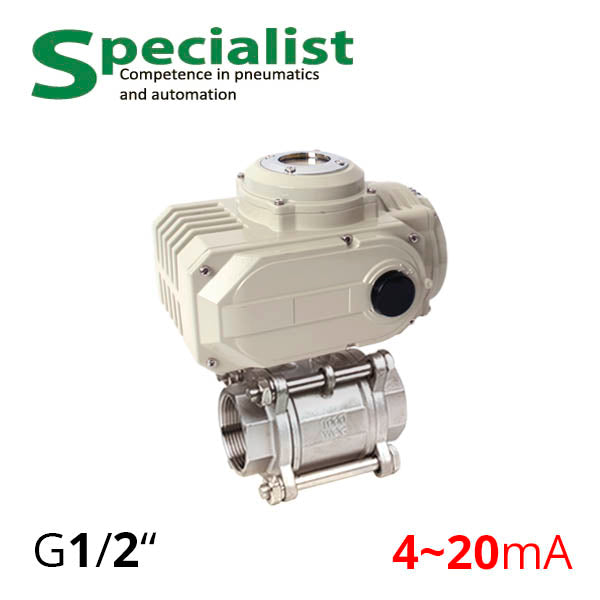

Ball valve ½″ stainless PN16 DN15 with adjustable electric drive SCBV-Q611

Three-piece adjustable ball valve DN 15 threaded 1/2″ inch with electric actuator SCBV-Q611F-16FC-15-HL-05-A is by default made of stainless steel and is used for automated control and regulation of flow proportional to the signal 4-20 mA in water pipelines, drinking water dispensing lines and food mixtures, petroleum products, and chemicals. It is mandatory to check the compatibility of the liquid or gas composition with the valve materials: PTFE-Teflon and AISI 304. If necessary, call and order from Specialist the same ball valve with electric actuator, but made from different materials.

Design features of the electric actuator ball valve DN15 1/2 inch

Standard configuration SCBV-Q611F-16FC-15-HL-05-A includes:

• Full-port ball valve, providing the highest flow capacity as the ball size of the shut-off element matches the diameter of the pipeline.
• Three-piece valve body consists directly of the housing and two detachable socket ends (threaded part) with internal thread 1/2 inch 1/2″. We also offer flange ball valves for order, welding inserts, or clamp connections.
• Standardized mounts F05/F07. The ball valve and electric actuator have flanges connected according to ISO 5211/DIN 3337, ensuring full compatibility and interchangeability of equipment, and providing reliable installation compliant with EU and Ukraine standards.
• Flow regulation proportional to signal 4-20 mA. Virtually any industrial PLC supports 4-20 mA output and can control the electric actuator, but if necessary we supply 1-5 V and 0-10 V.
• Anti-static device and protection against stem leakage
