Disc rotary latch DU 65 stainless with electric drive SCBF-D674

Name: Disc rotary latch DU 65 stainless with electric drive SCBF-D674
Brand: Specialist
SKU: SCBF-D674-10XEC-65-HL-10
Price: 10114.32 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 10 114,32 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-65-HL-10

Disc rotary latch DU 65 stainless with electric drive SCBF-D674

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-65-HL-10

10 114,32 UAH

In Stock

SCBF-D674-10XES-65-HL-10

Disc rotary latch DU 65 stainless with electric drive SCBF-D674

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-65-HL-10

10 286,64 UAH

In Stock

SCBF-D674-10XFS-65-HL-10

Disc rotary latch DU 65 stainless with electric drive SCBF-D674

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-65-HL-10

10 993,20 UAH

In Stock

Technical specifications

Connection type

inter-flange

Installation length

41 mm

Диск

SS304, SS316

Матеріал диску

Stainless steel AISI 304 SS, Stainless steel AISI 316 SS

Матеріал ущільнення

EPDM

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 65

Тип засувки

disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With electric drive

Description

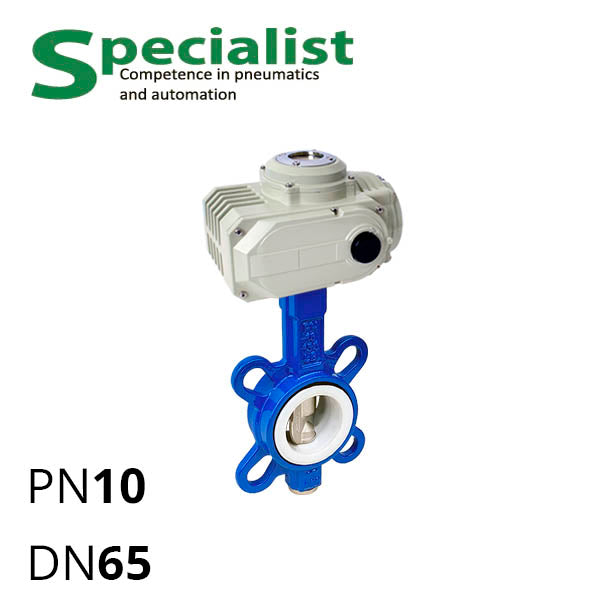

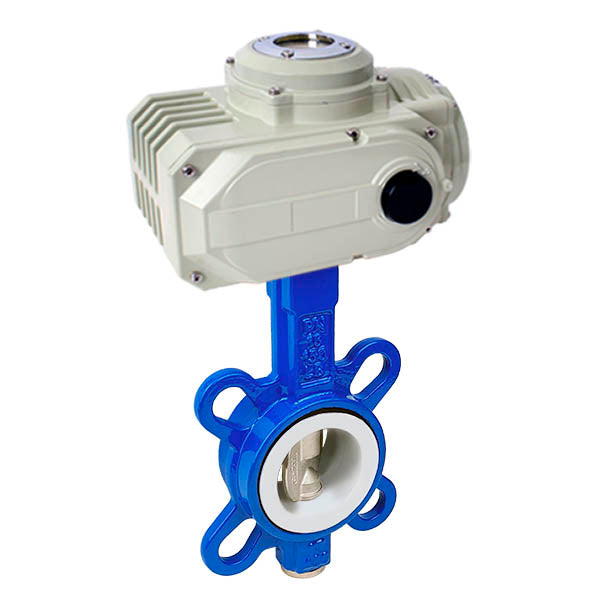

SCBF-D674-10XEC/XES/XFS-65-HL-10 is an industrial disk rotary shut-off valve DN 65 stainless with electric actuator. For wafer mounting. The butterfly valve "wing" is made with WCB body and food-grade stainless steel disk CF8 or CF8M, which are equivalents of AISI 304/316 SS. Detachable and repairable. Designed for opening and closing the working media on pipes with a nominal passage diameter of DN 65 mm.

These steel stainless wafer butterfly valves DN 65 are equipped with a shut-off actuator type, which has 2 positions: open and closed. The working medium should be checked for compatibility with SS304/SS316 and EPDM/PTFE. For liquids containing organic acids (acetic, citric, lactic, etc.) SS304+EPDM is suitable, while for petroleum products or steam choose SS316+PTFE.

Permissible working pressure (default) — PN up to 10 bar.

Table — Main parameters of electric rotary valve SSCBF-D674-10XEC/XES/XFS-65-HL-10
DN	65 mm
Nominal Pressure	PN 10 bar (1 MPa)
Body Material	WCB according to ASTM A216
Disk Material	CF8 or CF8M (SS304 or SS316)
Seal Material	EPDM or PTFE
EPDM Working Temperature	from −30 to 95° C
PTFE Working Temperature	from −40 to 160° C
Installation Thickness	41 mm
Electric Actuator	SCBF-HL-10 (2 positions)
Power Supply	220 Volts
Actuator Torque	100 Nm
