Disc rotary shutter DU 80 stainless with electric drive SCBF-D674

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary shutter DU 80 stainless with electric drive SCBF-D674

Name: Disc rotary shutter DU 80 stainless with electric drive SCBF-D674
Brand: Specialist
SKU: SCBF-D674-10XEC-80-HL-10
Price: 10562.34 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 10 562,34 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-80-HL-10

Disc rotary shutter DU 80 stainless with electric drive SCBF-D674

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-80-HL-10

10 562,34 UAH

In Stock

SCBF-D674-10XES-80-HL-10

Disc rotary shutter DU 80 stainless with electric drive SCBF-D674

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-80-HL-10

10 734,72 UAH

In Stock

SCBF-D674-10XFS-80-HL-20

Disc rotary shutter DU 80 stainless with electric drive SCBF-D674

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-80-HL-20

16 793,40 UAH

In Stock

Technical specifications

Connection type

inter-flange

Installation length

45 mm

Диск

SS304, SS316

Матеріал диску

Stainless steel AISI 304 SS, Stainless steel AISI 316 SS

Матеріал ущільнення

EPDM

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 80

Тип засувки

disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With electric drive

Description

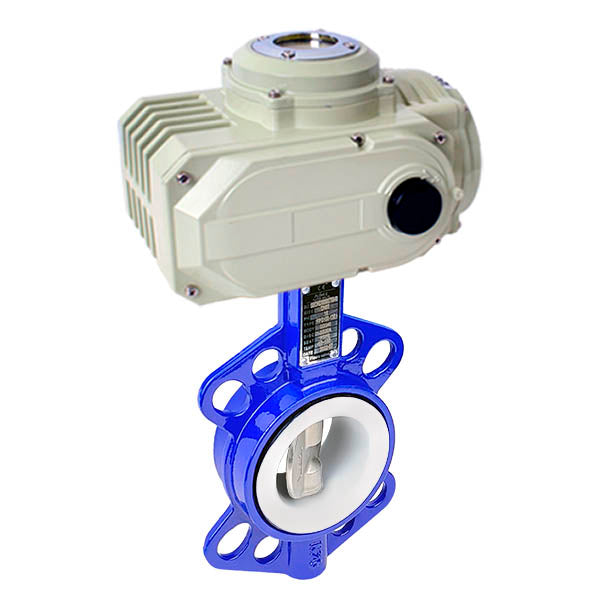

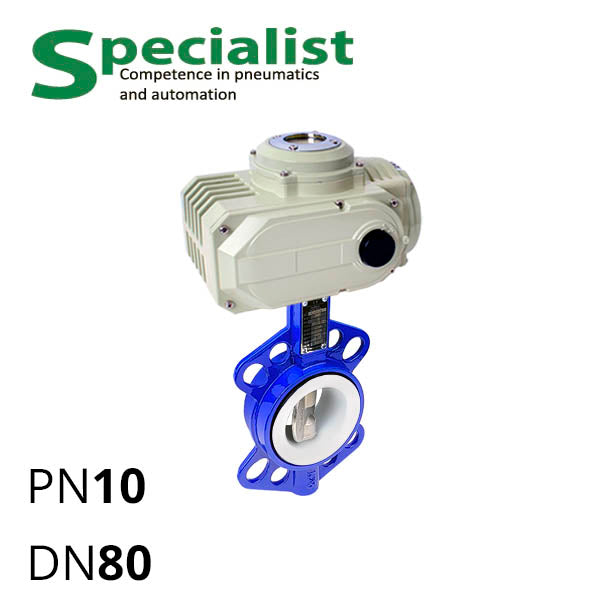

SCBF-D674-10XEC/XES/XFS-80-HL-10/20 is an industrial stainless steel butterfly valve DN 80 with electric actuator for wafer installation. The butterfly valve is made of WCB body and food-grade stainless steel disc ANSI CF8 or CF8M, similar to AISI 304/316 SS. It is dismountable and repairable. The actuator is intended for opening and closing the working medium in pipes with a nominal diameter of DN 80 mm.

These stainless steel wafer butterfly valves DN 80 feature a shut-off type actuator with two positions: closed and open. Check the working medium's compatibility with SS304/SS316 and EPDM/PTFE. For liquids containing organic acids (acetic, citric, lactic, etc.), choose SS304+EPDM, while for petroleum products or steam — SS316+PTFE.

Working pressure (default) — PN 10.

Table — Main Parameters of the Electric Actuated Butterfly Valve SSCBF-D674-10XEC/XES/XFS-80-HL-10/20
DN	80 mm
Nominal Pressure	PN 10 (10 bar)
Body	WCB per ASTM A216
Disc	CF8 or CF8M (SS304 or SS316)
Seat Insert	EPDM or PTFE
Operating Temperature for EPDM	from −30 to 95° C
Operating Temperature for PTFE	from −40 to 160° C
Build Distance	41 mm
Electric Actuator Model	SCBF-HL-10/20 (2 pos.)
Power Supply	220 V
Actuator Torque	100 Nm
