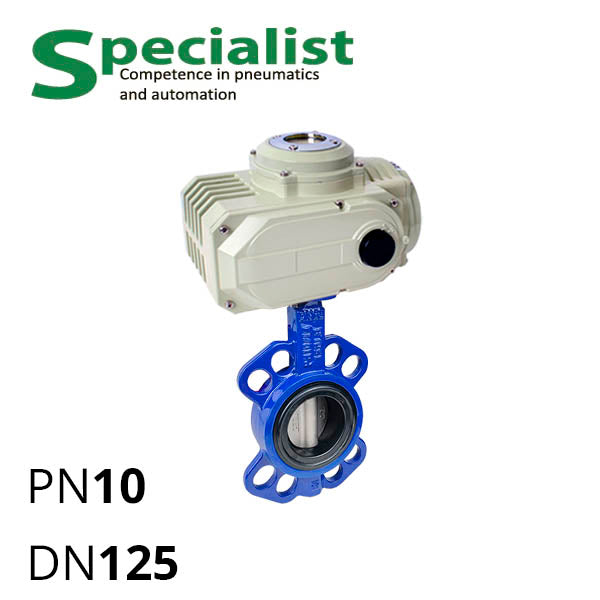

Disc rotary latch DU 125 cast iron with electric drive SCBF-D673-10XEX-125-HL-20

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary latch DU 125 cast iron with electric drive SCBF-D673-10XEX-125-HL-20

Name: Disc rotary latch DU 125 cast iron with electric drive SCBF-D673-10XEX-125-HL-20
Brand: Specialist
SKU: SCBF-D673-10XEX-125-HL-20
Price: 15688.02 UAH
Availability: InStock

In Stock

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 15 688,02 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-125-HL-20

Disc rotary latch DU 125 cast iron with electric drive SCBF-D673-10XEX-125-HL-20

Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-125-HL-20

15 688,02 UAH

In Stock

Technical specifications

Connection type

inter-flange

Installation length

56 mm

Диск

WCB

Матеріал диску

WCB cast iron

Матеріал ущільнення

EPDM

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 125

Тип засувки

disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With electric drive

Description

Industrial between-flange butterfly valve cast iron with electric actuator series SCBF-D673-10XEX-125-HL-20 is a non-disassemblable butterfly valve with a body and disc made of cast carbon steel WCB, which, unlike grey and ductile iron, can operate under high pressure and offers better heat resistance. Nominal bore diameter for pipes DN 125 mm.

These cast iron between-flange butterfly valves DN 125 are shut-off valves — equipped with a type of actuator that operates in "open/close" mode. Control actuator — on order.

Designed for use in water supply systems, with liquids and gases with low alkaline concentrations and a limited small amount of acids. The working medium should be checked for compatibility with WCB and EPDM. Permissible working pressure (by default) — PN up to 10 bar.

Table — Main parameters of electric rotary butterfly valve SCBF-D673-10XEX-125-HL-20
DN	125 mm
Nominal Pressure	PN 10 bar (1 MPa); on order PN16, PN40
Body Material	WCB to ASTM A216
Disc Material	WCB to ASTM A216
Seal Material	EPDM
EPDM Operating Temperature	from −30 to 95°C
Installation Thickness	56 mm
Electric Actuator	SCBF-HL-20 (“open-close”)
Power Supply	220 Volts
Actuator Torque	200 N⋅m
