Disc rotary latch DU 50 cast iron with electric drive SCBF-D673-10XEX-50-HL-05

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary latch DU 50 cast iron with electric drive SCBF-D673-10XEX-50-HL-05

Name: Disc rotary latch DU 50 cast iron with electric drive SCBF-D673-10XEX-50-HL-05
Brand: Specialist
SKU: SCBF-D673-10XEX-50-HL-05
Price: 7391.82 UAH
Availability: InStock

In Stock

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 7 391,82 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-50-HL-05

Disc rotary latch DU 50 cast iron with electric drive SCBF-D673-10XEX-50-HL-05

Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-50-HL-05

7 391,82 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

41 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 50

Тип засувки

disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With electric drive

Description

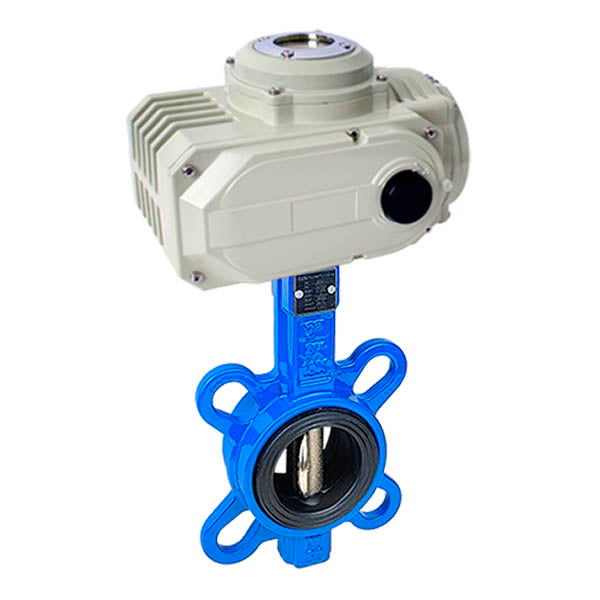

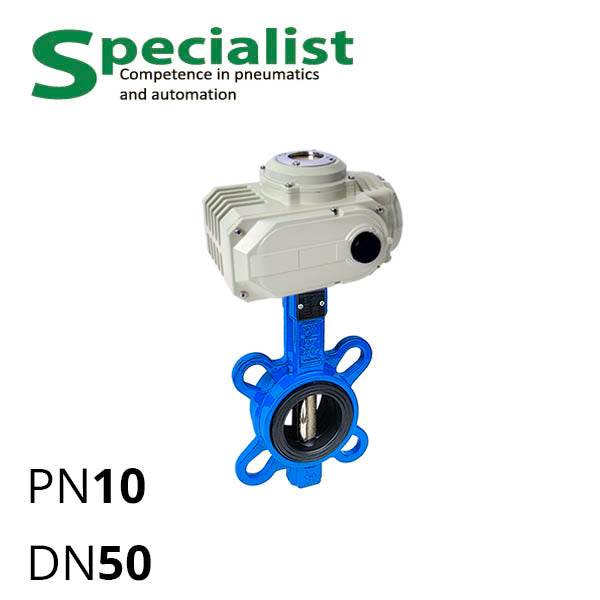

SCBF-D673-10XEX-50-HL-05 is a cast iron wafer type butterfly valve DN 50 PN 10 with electric actuator 220V. The body and disc of the valve are made of cast carbon steel WCB, which is superior compared to grey and ductile iron — WCB can operate under high pressure and has better thermal resistance. The seat made of EPDM is non-removable.

These valves are designed for wafer installation on a pipeline with a diameter of φ 50 mm and act as actuators capable of controlling the flow of water, liquids, non-aggressive gases with a temperature from -30 to 95℃ and very low acid and alkali content. Before use, check the compatibility of your working environment with WCB and EPDM materials.

Table - Specifications of Electric Actuated Butterfly Valve SSCBF-D673-10XEX-50-HL-05
DN	50 mm
Nominal Pressure	PN 10 bar (1 MPa)
Body Material	WCB with ASTM A216
Disc Material	WCB with ASTM A216
Seal Material	EPDM
Operating Temperature EPDM	from -30 to 95° C
Installation Thickness	41 mm
Electric Actuator	SCBF-HL-05
Power Supply	220 Volts
Control	shut-off actuator “open-close”
