SO-QVA series quick exhaust valve
In Stock
Thread size
Model
SO-QVA-08-A
Manufacturer
Specialist
from 351,18 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Models
Found 4 variants
Name
Model
Price
Availability
Qty
Action
SO-QVA-20-A
SO-QVA series quick exhaust valve
Thread size=G 3/4
SO-QVA-20-A
1 534,68 UAH
In Stock
SO-QVA-15-A
SO-QVA series quick exhaust valve
Thread size=G 1/2
SO-QVA-15-A
627,90 UAH
In Stock
SO-QVA-10-A
SO-QVA series quick exhaust valve
Thread size=G 3/8
SO-QVA-10-A
470,04 UAH
In Stock
SO-QVA-08-A
SO-QVA series quick exhaust valve
Thread size=G 1/4
SO-QVA-08-A
351,18 UAH
In Stock
Request a variant
Fill in the form and we will get back to you regarding this variant.
Technical specifications
Description

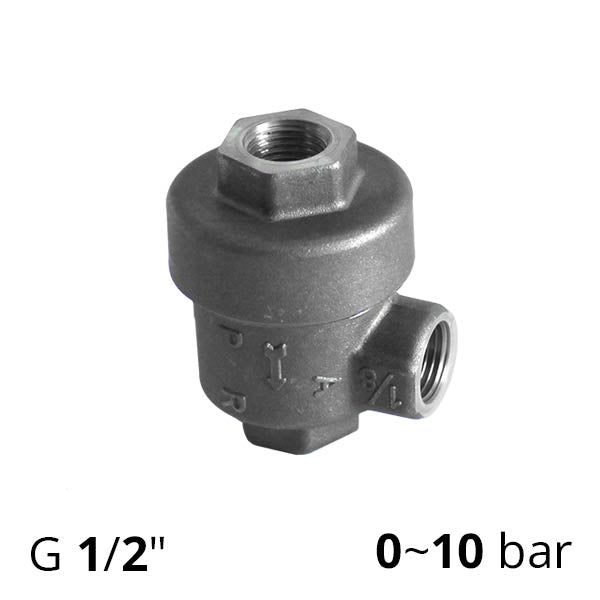

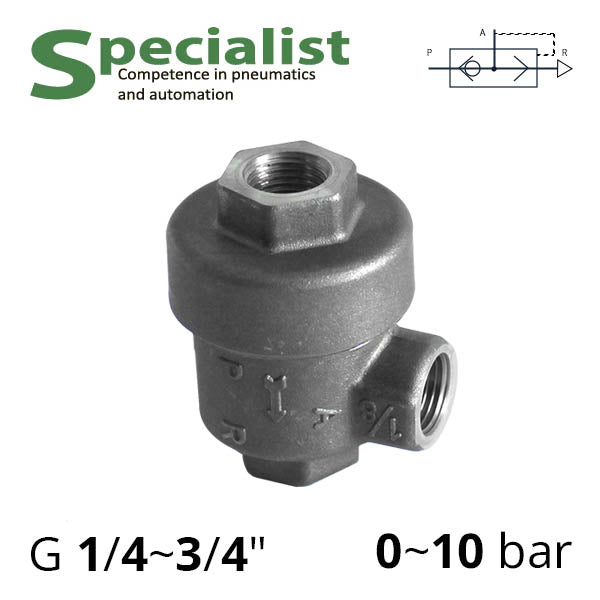

SO-QVA series metallic quick exhaust valve is designed to be installed on the inlet ports of pneumatic cylinders and other devices to improve speed. When pressure is released, it provides accelerated air release into the atmosphere because it exits directly from the object rather than through the air pipe to the exhaust valve or distributor. The use of quick exhaust valves is recommended for high frequency extension and retraction of cylinder rods.
For connection to the pneumatic line, the valve has three ports:
- P — inlet for air supply
- A — outlet for connection to pneumatic cylinder or other object
- R — exhaust port, where an additional pneumatic silencer can be installed.
The ports have the same size internal pipe thread —G 1/2″.
| Model | SO-QVA-06 | SO-QVA-08 | SO-QVA-10 | SO-QVA-15 | |
|---|---|---|---|---|---|
| Connection | G1/8″ | G1/4″ | G3/8″ | G1/2″ | |
| Effective Cross-Sectional Area | P→A | 17 mm2 (CV=0.94) | 30 mm2 (CV=1.67) | 47 mm2 (CV=2.61) | 106 mm2 (CV=5.59) |
| A→R | 20.8 mm2 (CV=1.16) | 40 mm2 (CV=2.22) | 65 mm2 (CV=3.61) | 133 mm2 (CV=7.39) | |
| Operating Medium | Air | ||||
| Operating Pressure | from 0 to 10 bar | ||||
| Maximum Inlet Pressure | 15 bar | ||||
| Operating Temperature Range | from 0 to 60°C | ||||
