Hose flange valve DU 200 with pneumatic drive SCBF-PZ674

Do you have any questions about the product?
We will be happy to answer them in messengers

Hose flange valve DU 200 with pneumatic drive SCBF-PZ674

Name: Hose flange valve DU 200 with pneumatic drive SCBF-PZ674
Brand: Specialist
SKU: SCBF-PZ674-6J-200-P
Price: 12000.00 UAH
Availability: InStock

In Stock

Product Code:

SCBF-PZ674-6J-200-P

Brand:

Specialist

12 000,00 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Technical specifications

Connection type

Flange

Матеріал диску

NBR

Матеріал ущільнення

NBR

Body material

Aluminum

Nominal diameter

TWO 200

Тип засувки

Valve

Nominal diameter

200

Inlet pressure

Ru6

Тип контролю

With pneumatic drive

Description

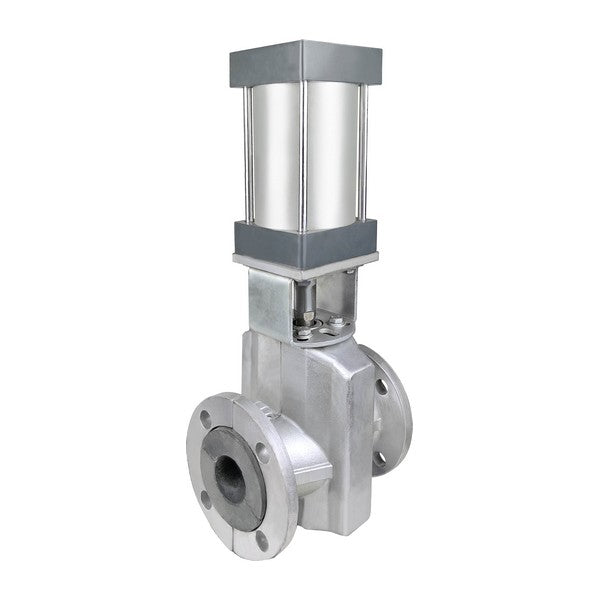

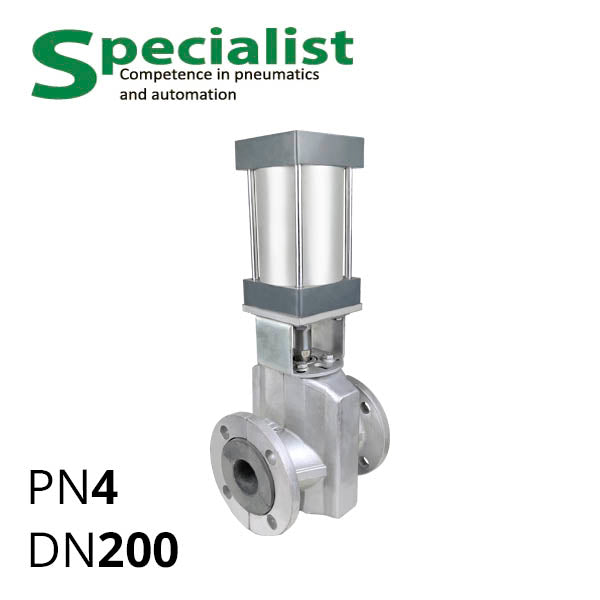

SCBF-PZ674-6J-200-P is a pneumatic pinch hose valve with flanged connection DN200, designed for operating abrasive, chemically aggressive, fibrous, viscous media and suspensions at high pressure up to 4 bar (for valve diameters 150 and below —up to 6 bar). The pinch valve is a good alternative to cast-iron gate valves for wastewater.

The shut-off valve body is cast from aluminium, whereas the medium comes into contact with the hose made from NBR +80°C. If your medium is incompatible with NBR, contact our managers by phone on the website — we will select the appropriate pneumatic-controlled hose valve for you.

Advantages of DN 200 hose shut-off valve:

the most reliable and airtight type of detachable connections — flanged
in the open state, the hose creates almost no resistance
the pneumatic cylinder is more reliable for automation than an electric drive — it better withstands vibrations and harsh working conditions, is easier to maintain and repair
minimal air consumption
lightweight
high response speed

Tech. parameters of the pneumatic pinch valve SCBF-PZ674-6J-200-P
Parameter	Value
Nominal diameter	200 mm (DN200)
Valve body materials	Aluminium
Hose materials	NBR
Operating medium	Water, air, hydraulic fluids, lubricants, oils, solutions, abrasive, and chemical substances that do not react with hose valve materials
Operating pressure	from 0 to 6 bar (for DN25-150) from 0 to 4 bar (DN200-300)
Temperature	from -20 to 80° C
Control	Pneumatic two-way control
Pneumatic drive pressure	6 bar
Type of valve	Shut-off pneumatic-controlled valve
